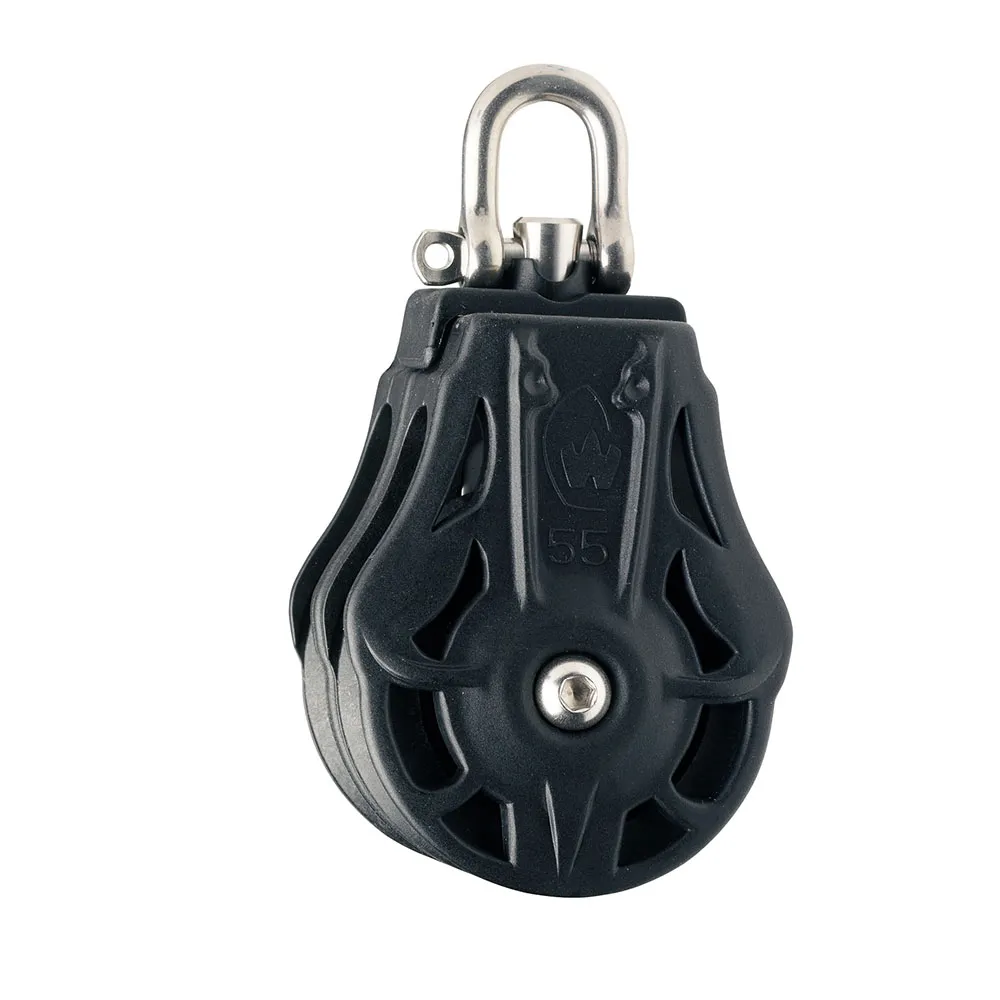

Wichard Double Shackle Swivel Pulley for 8-9 mm Rope | High-Performance Deck Equipment
Elevate your vessel´s rigging with the Wichard Double Shackle Swivel Pulley, a pinnacle of marine engineering designed for sailors who demand uncompromising performance and safety. Engineered for 8-9 mm lines, this essential piece of deck equipment provides superior load-bearing capabilities and flawless line management for a wide range of applications, from mainsheets to halyards and control lines. Built on Wichard´s legacy of world-class manufacturing, this pulley is the definitive choice for enhancing efficiency and reliability on board.
Key Benefits:
Experience a new level of control and durability with a pulley designed for the harsh marine environment. The integrated swivel head ensures perfect line alignment, dramatically reducing friction and preventing frustrating line twists, even under heavy, dynamic loads. This smooth operation not only makes sail handling easier but also significantly extends the life of your ropes. The dual sheave configuration allows for the creation of powerful and efficient tackle systems, providing a mechanical advantage for tasks like tensioning a backstay or managing a mainsheet. The exceptional strength, derived from a state-of-the-art production process, guarantees peace of mind, ensuring the pulley performs flawlessly when you need it most. Its robust construction offers outstanding resistance to wear and deformation, making it a long-lasting investment in your boat´s hardware.
Main Features:
* Dual Sheave Design: Enables the setup of complex and powerful purchase systems for increased mechanical advantage.
* Integrated Free-Rotating Swivel Head: Provides optimal block alignment to the load, preventing line kinking and ensuring smooth, consistent performance.
* Double Shackle Attachment: Offers versatile and secure connection points at the head of the pulley, accommodating various rigging configurations.
* Removable Shackle Pin: Allows for quick and easy installation of a line without the need to un-splice the end, simplifying setup and maintenance.
* Optimized Sheave Profile: Specifically designed to accommodate rope diameters from 8 mm to 9 mm, ensuring a perfect fit and minimal friction.
* Compact and High-Strength Body: Delivers remarkable load-bearing capacity in a lightweight and space-efficient form factor.
This pulley is the ideal solution for numerous applications on any sailboat, including mainsheet systems, boom vangs, genoa leads, halyard tackles, and other critical control lines where strength and low friction are paramount.
Technical Specifications
* Attribute: Pulleys
* Rope Diameter: 8-9 mm (5/16″)
* Sheave Diameter: 35 mm (1 3/8″)
* Working Load: 800 kg (1760 lbs)
* Breaking Load: 2000 kg (4400 lbs)
* Weight: 251 g
* Length (A): 115 mm
* Width (B): 46 mm
