Description

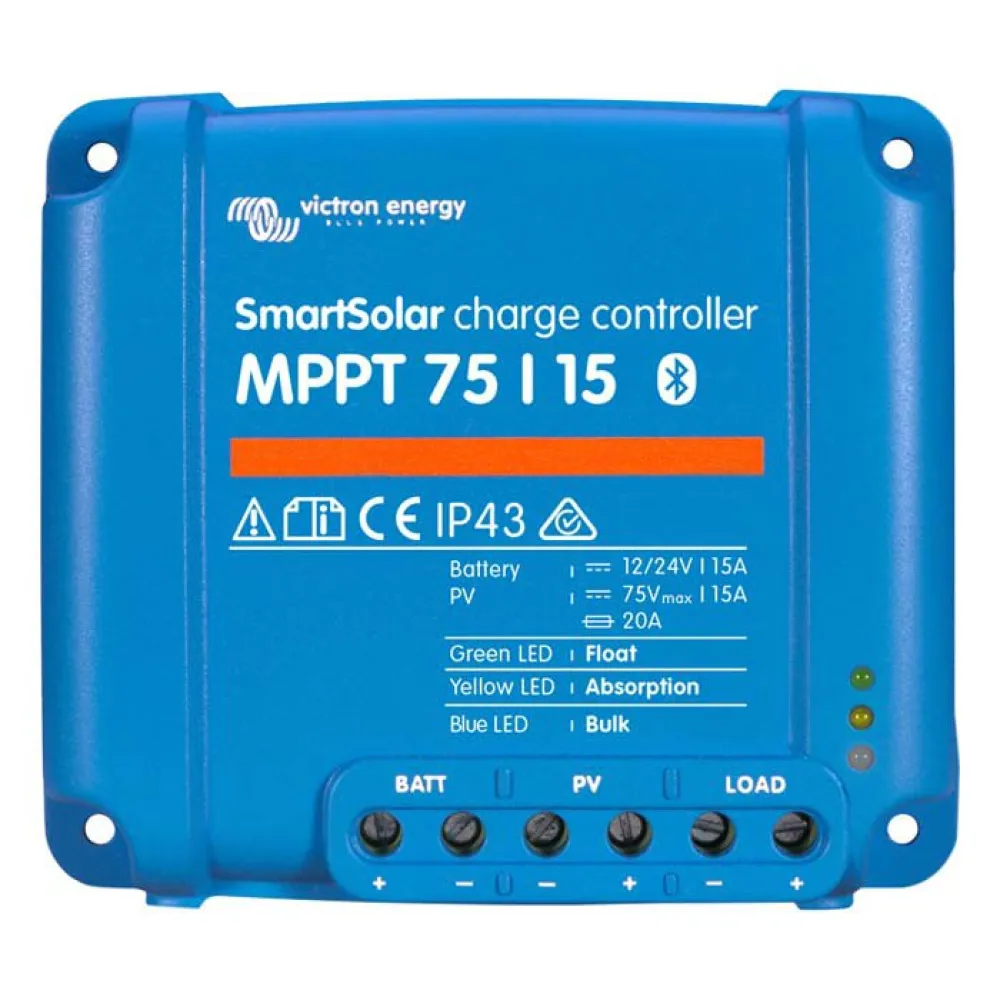

Victron Energy SmartSolar MPPT 75/15 Controller:
Maximize Your Solar Power Harvest The Victron Energy SmartSolar MPPT 75/15 Controller is a compact yet powerful solution for optimizing the energy harvested from your solar panels.
Designed for off-grid and battery-based systems, this intelligent charge controller utilizes advanced Maximum Power Point Tracking (MPPT) technology to ensure you extract the absolute maximum power from your solar array, even in challenging weather conditions.
Unleash the Full Potential of Your Solar System:
The SmartSolar MPPT 75/15 Controller constantly monitors your solar panel´s voltage and current, instantly adjusting to extract the maximum available power.
This translates to faster battery charging times and increased energy efficiency, ultimately maximizing the performance and lifespan of your entire solar setup.
Built for Versatility and Performance:
This controller is compatible with a wide range of battery voltages and can handle PV open circuit voltages of up to 75V.
Whether you have a small off-grid cabin or a larger RV system, the SmartSolar MPPT 75/15 Controller offers the flexibility and power you need.
Key Features:
– Ultra-fast Maximum Power Point Tracking (MPPT):
Reacts to changing conditions in milliseconds to harvest the maximum energy from your solar panels.
– Advanced BatteryLife Algorithm:
Protects your battery from harmful partial state operations and extends its lifespan.
– Multiple Electronic Protections:
Safeguards your system against over-temperature, short circuit, battery overvoltage, and reverse polarity.
– Optional Bluetooth Connectivity:
Monitor and manage your system remotely with the VictronConnect app (requires a VE.Direct Bluetooth Smart dongle.
– sold separately).
– Compact and Easy to Install:
Designed for hassle-free installation in various applications.
Technical.
Specifications:
– Nominal PV Voltage:
12V/24V.
– Max.
PV Open Circuit Voltage:
75V.
– Max.
Solar Panel Power:
– 12V System:
220W.
– 24V System:
440W.
– Max.
Charge Current:
15A.
– Max.
Battery Current:
15A.
– Own Consumption:
<10mA.
– Operating Temperature Range:
– 40 to +60°C.
– Protection Degree:
IP43.
– Weight:
0.4kg.
– Dimensions:
10.7×8.6×3.4 cm Choose the Victron Energy SmartSolar MPPT 75/15 Controller for:
– Increased Energy Harvest:
Maximize the power generated by your solar panels.
– Faster Charging Times:
Charge your batteries quickly and efficiently.
– Extended Battery Life:
Protect your battery and prolong its lifespan.
– Reliable Performance:
Enjoy peace of mind with advanced safety features.
– Easy Monitoring and Control:
Manage your system remotely with optional Bluetooth connectivity.
The Victron Energy SmartSolar MPPT 75/15 Controller is the ideal solution for anyone looking to optimize their solar power system and enjoy the benefits of clean, renewable energy.
