Description

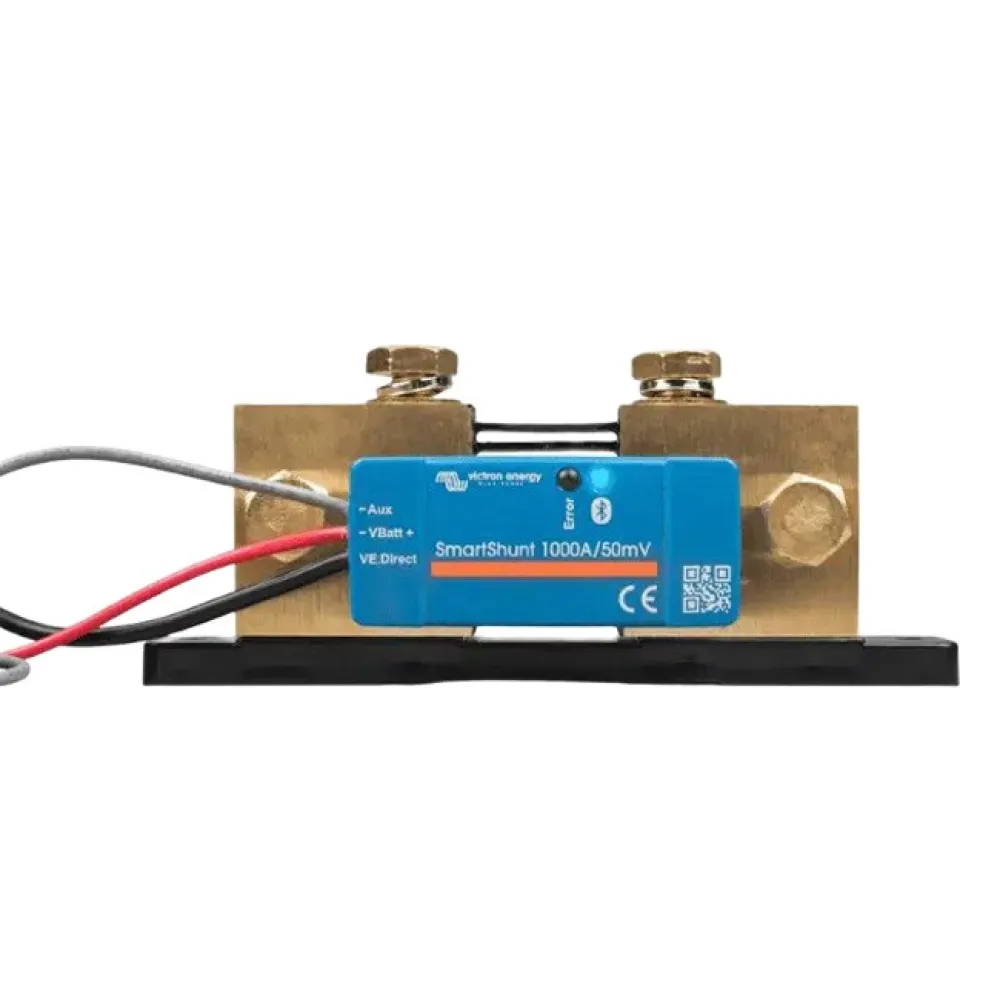

VICTRON ENERGY SmartShunt 1000A 50mV IP65 SHU065210050 Controller
Unlock precision battery management for your high-power system with the Victron Energy SmartShunt 1000A IP65. This intelligent battery monitor serves as the essential link between your battery bank and your mobile device, providing comprehensive insights without the need for a separate display. By functioning as a sophisticated fuel gauge for your battery, the SmartShunt eliminates the guesswork, allowing you to have complete confidence in your power system´s status at all times. Its innovative design connects via Bluetooth to the VictronConnect app on your phone or tablet, turning your device into a feature-rich, real-time monitoring screen.
The primary benefit of the SmartShunt is the unparalleled convenience and clarity it brings to battery monitoring. Instead of installing and wiring a traditional display panel, which requires cutting holes and running extra cables, the SmartShunt is installed directly in your battery compartment. With its IP65 rating, it is protected against dust ingress and low-pressure water jets, making it the perfect solution for demanding environments such as marine vessels, RVs, off-grid cabins, and industrial vehicles. This robust construction ensures reliable performance where it matters most. Monitor crucial data like state of charge, voltage, current flow, ampere-hours consumed, and ´time to go´ based on current discharge, all from the palm of your hand.
Beyond monitoring your main house battery bank, the SmartShunt offers exceptional versatility. It features a second input that can be configured for a variety of critical tasks. Use it to monitor the voltage of a secondary battery, such as a starter battery, to ensure you´re never left stranded. Alternatively, this input can be used for midpoint voltage monitoring of a battery bank, which is a key indicator of battery health and can prevent premature damage to an expensive battery string. It can also be connected to a temperature sensor to provide vital battery temperature data, enabling temperature-compensated charging for optimal battery life and performance. This flexibility makes the SmartShunt a powerful, all-in-one diagnostic tool for your entire DC electrical system.
Main Features:
* Integrated Bluetooth for wireless connection to the VictronConnect App
* Monitors a full range of battery parameters including State of Charge (SoC), voltage, and current
* Calculates and displays ´time to go´, power consumption in Watts, and Ah consumed
* Features a versatile auxiliary input for monitoring a second battery, temperature, or midpoint voltage
* Equipped with a VE.Direct port for wired connection to a GX device for advanced system integration
* Extremely low current draw from the battery it is monitoring
* Stores a wide range of historical events and data to help evaluate usage patterns and battery health
* IP65-rated enclosure provides robust protection against water and dust
Technical Specifications:
* Attribute: Controllers
* Supply Voltage Range: 6.5 – 70 VDC
* Current Draw: < 1mA
* Input Voltage Range, Auxiliary: 6.5 – 70 VDC
* Battery Capacity Range: 1 – 9999 Ah
* Operating Temperature Range: -40 to +50°C (-40 to 120°F)
* Current Measurement Resolution: 0.1A
* Voltage Measurement Resolution: 0.01V
* Protection Category: IP65 (electronics enclosure)
* Communication Port: VE.Direct
