Description

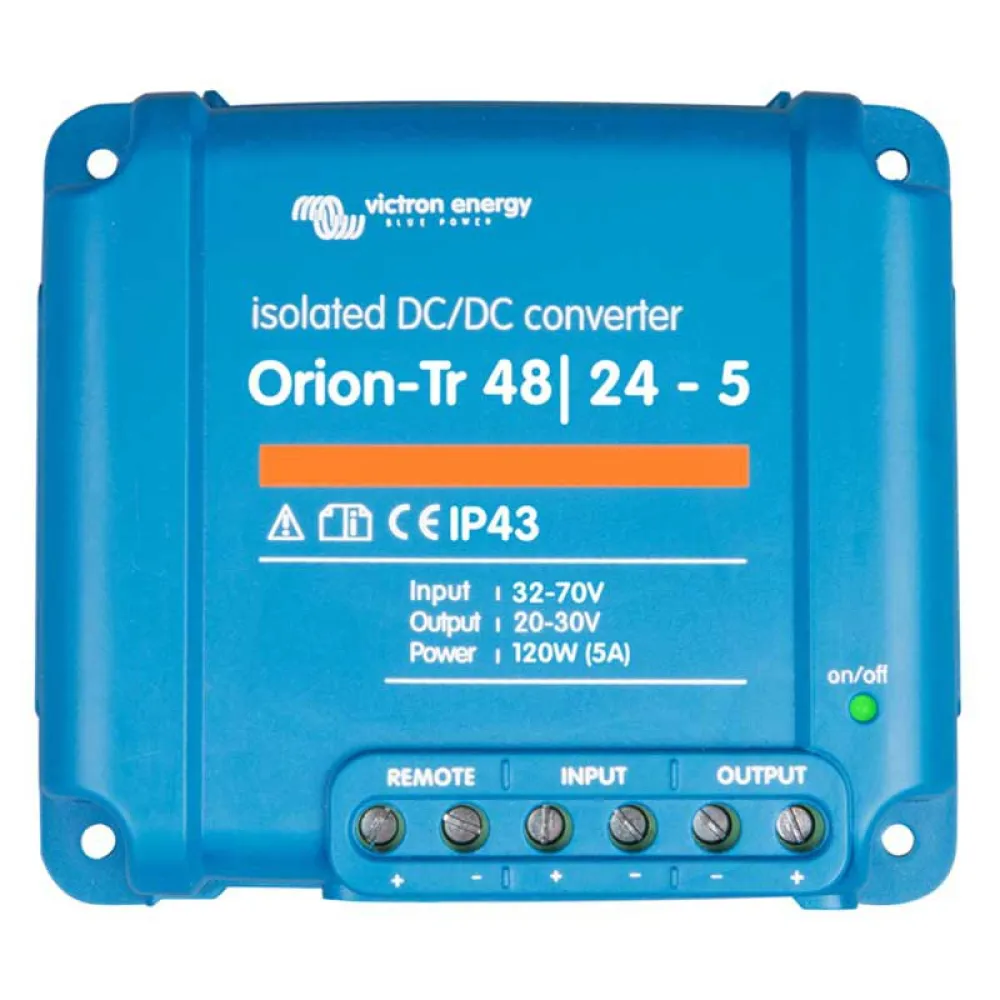

Victron Orion-TR, DC to isolated DC converter 48/24-5 (120W).
With a DC to DC converter you can stabilize the DC voltage coming from a power supply or battery, obtaining a higher, equal or lower voltage than the input voltage.
Features:
Remote on-off.
The Orion has a remote on/off switch that eliminates the need to mount a high current switch in the input wiring.
The remote on/off switch can be operated by a low power switch or, for example, the motor start-stop switch (see manual).
Adjustable output voltage:
can also be used as a battery charger.
For example, it can be used to charge a 12-volt starter or service battery integrated in a 24 V system.
All models are short-circuit proof and can be connected in parallel to increase the output current.
An unlimited number of units can be connected in parallel.
IP43 protection.
When installed with screw terminals facing downwards.
Screw terminals.
No special tools are required for installation.
