Description

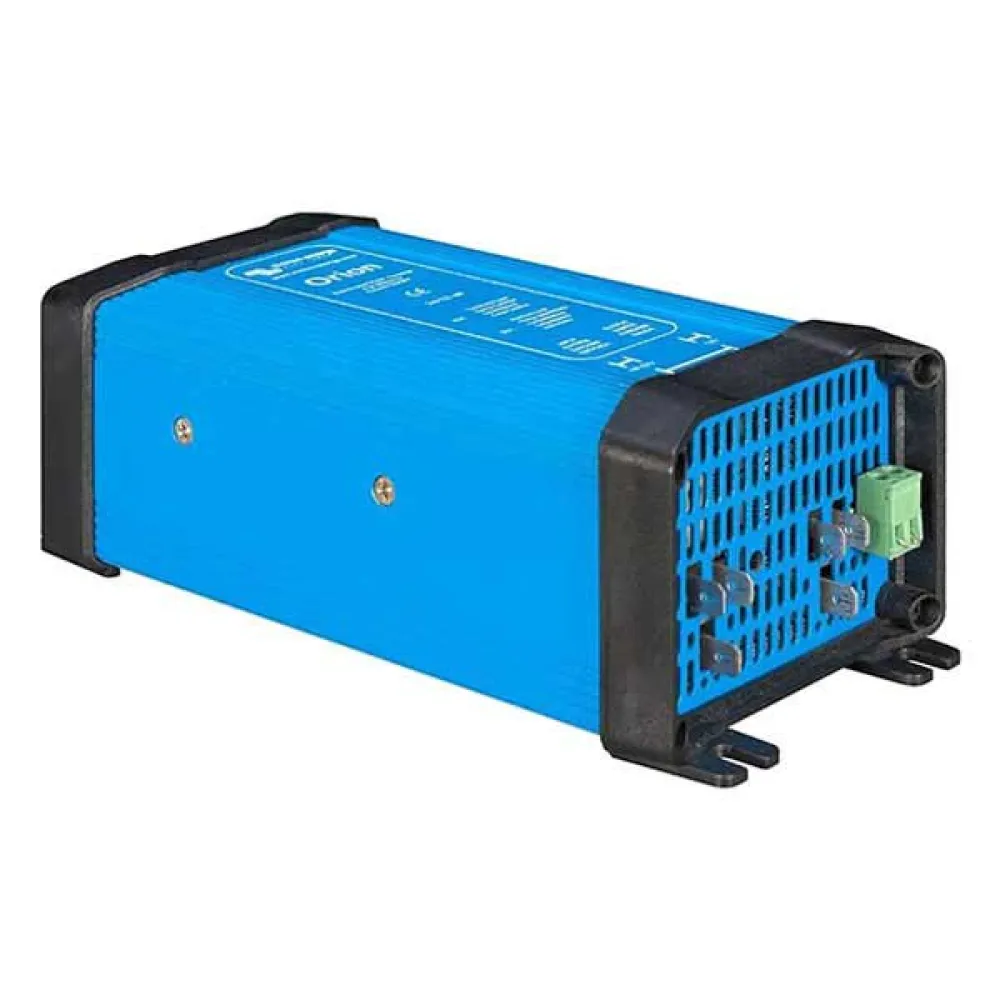

VICTRON ENERGY Orion DC-DC 24/12-40 Converter | Stable 12V Power
Power your essential 12V electronics from a 24V system with the unparalleled reliability of the VICTRON ENERGY Orion DC-DC 24/12-40 Converter. Engineered for professional applications in demanding environments, this high-power converter is the definitive solution for trucks, buses, commercial vehicles, and marine vessels that require a stable and clean 12V power source.
The DC-DC converters are used to increase or decrease the DC voltages.
This model is a high-efficiency buck converter designed to power 12-volt devices from a 24-volt vehicle or vessel system, providing a stable 40-amp DC output.
The Orion 24/12-40 ensures that your sensitive 12V equipment—such as communication radios, navigation systems, lighting, and audio equipment—receives a consistent voltage, protecting it from potential damage caused by fluctuations in the 24V supply. Built with Victron Energy´s renowned quality, this converter delivers robust performance and exceptional longevity.
Key Benefits:
* Superior Power Stability: Delivers a precisely regulated 12V output, safeguarding your sensitive electronics from over-voltage and unstable power. Its adjustable output allows you to fine-tune the voltage to perfectly match your equipment´s requirements.
* High-Efficiency Operation: With an efficiency rating of up to 95%, the Orion converter minimizes energy loss, generating less heat and reducing the load on your battery system. This translates to longer battery life and more available power for your devices.
* Built for Demanding Environments: Designed to withstand the rigors of mobile and marine use, the unit features an IP43 protection rating when installed with the screw terminals oriented downwards, protecting it from water spray.
* Scalable Power Output: Need more than 40 amps? A key advantage of the Orion series is the ability to connect multiple units in parallel. This allows you to easily scale your power system to meet increasing demands without replacing the entire setup.
* Smart System Integration: The integrated remote on-off switch allows you to control the converter from a low-power switch or a battery management system (BMS). This feature eliminates the need for a high-current switch in the input wiring and reduces standby power consumption to virtually zero when the unit is turned off.
Main Features:
* Remote on-off connector for external switching and system integration
* Adjustable output voltage for fine-tuning to specific load requirements
* Can be connected in parallel to increase total output current
* High efficiency switching technology for minimal heat generation
* IP43 protection against water spray when installed correctly
* Simple and secure screw terminals for easy installation
* Comprehensive electronic protection against overload, short circuit, and over-temperature
Technical Specifications:
* Product: VICTRON ENERGY Orion DC-DC 24/12-40 Converter
* Attribute: Converters
* Input Voltage Range: 18-35 VDC
* Under Voltage Shutdown: 14 V
* Under Voltage Restart: 18 V
* Nominal Output Voltage: 12.2 V
* Adjustable Output Voltage Range: 10-15 V
* Continuous Output Current: 40 A
* Maximum Output Current: 55 A
* Max Efficiency: 95%
* No-load Current Draw: < 100 mA
* Operating Temperature Range: -20 to +55°C (derating 3% per °C above 40°C)
* Dimensions (H x W x D): 65×88 x 195 mm (2.6×3.5×7.7 inches)
* Weight: 0.9 kg (2.0 lbs)
Choose the Victron Energy Orion 24/12-40 for a professional-grade, efficient, and highly reliable power solution you can depend on for all your critical 12V applications
