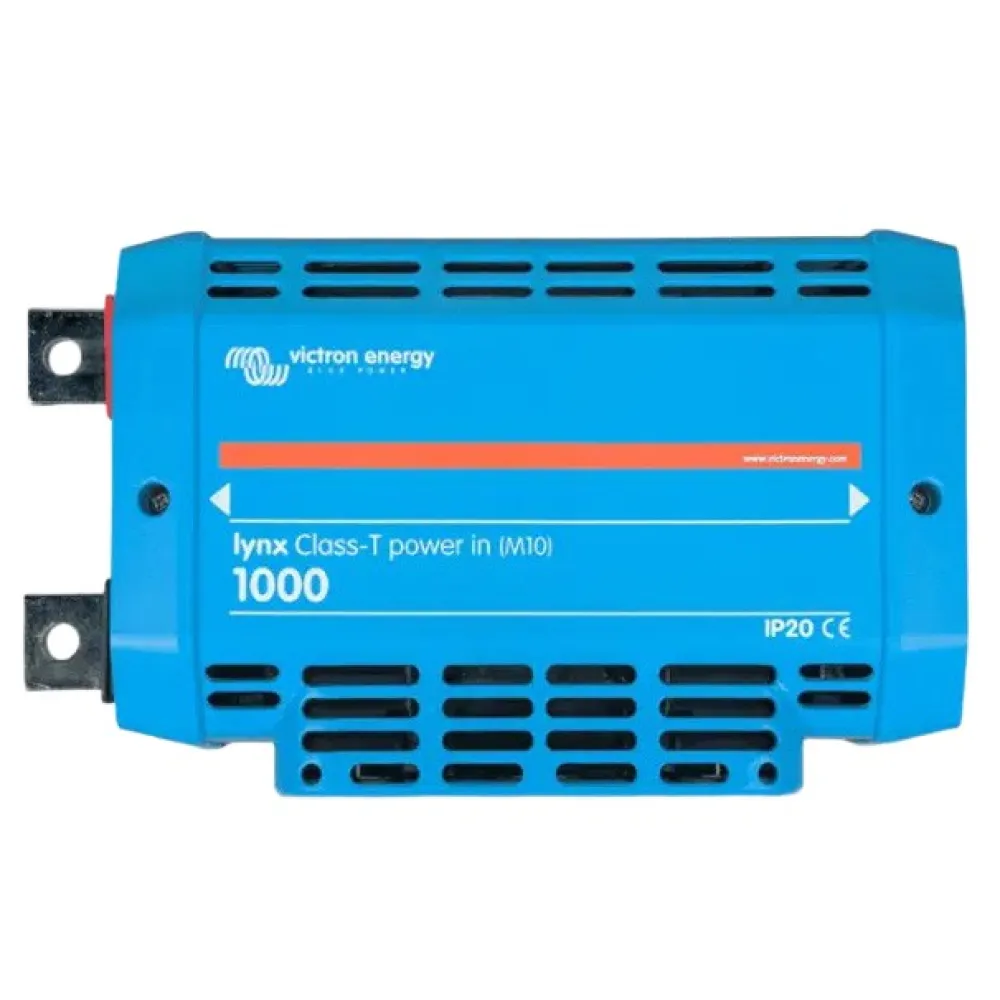

Victron Energy Lynx Class-T Power-In M10 | Ultimate Battery System Protection
Ensure the absolute highest level of safety and reliability for your high-power DC electrical system with the Victron Energy Lynx Class-T Power-In M10. This essential distribution module serves as the critical safeguard between your battery bank and the rest of your system, providing unparalleled protection against catastrophic faults. Designed for professionals and enthusiasts who demand uncompromising performance, the Lynx Class-T Power-In is the definitive solution for main system fusing, especially in applications with large inverter/charger systems and modern lithium battery banks.
The primary function of this module is to house a single, high-interrupt-capacity Class-T fuse. Class-T fuses are renowned for being extremely fast-acting, a crucial characteristic for protecting sensitive downstream electronics like inverters, chargers, and DC-DC converters from the massive fault currents that high-capacity batteries (particularly LiFePO4) can deliver. By installing the Lynx Class-T Power-In, you are investing in the ultimate protection against short circuits, preventing potential equipment damage, fire, and ensuring the long-term integrity of your entire power system.
Key Benefits:
* Catastrophic Fault Protection: Utilizes an extremely fast-acting Class-T fuse to safely interrupt massive short-circuit currents, providing the highest level of DC protection available.
* Seamless System Integration: As a core component of the Victron Lynx Distribution system, it connects flawlessly with other Lynx modules, such as the Lynx Distributor and Lynx Shunt, creating a clean, organized, and professional busbar system.
* High-Current Ready: Engineered to handle the demanding power requirements of large battery banks and powerful inverter/chargers, ensuring minimal voltage drop and maximum efficiency.
* Enhanced Safety and Professional Finish: Features a robust enclosure with a removable protective cover that prevents accidental contact with live terminals, guaranteeing a safe installation and a tidy, professional appearance.
Main Features:
* Dedicated holder for a single Class-T fuse (fuse sold separately).
* Heavy-duty M10 bolt connections for securing large-gauge battery and system cables.
* Integrated 1000A DC copper busbar for robust and efficient power transfer between modules.
* Part of the modular Victron Lynx Distribution System for flexible and scalable configurations.
* Removable cover for easy access during installation and fuse replacement while ensuring protection during operation.
The modularity of the Lynx system is a standout advantage. The Lynx Class-T Power-In is one of several interlocking modules that can be combined to create a complete and customized power distribution solution. Simply connect it to a Lynx Distributor to add multiple fused DC circuits or a Lynx Shunt VE.Can for precise battery monitoring, all while maintaining a single, consolidated busbar. This modular approach eliminates the need for multiple heavy-gauge cables running to the battery, simplifying installation and reducing clutter.
Technical Specifications:
* Voltage Rating: Suitable for 12V, 24V, and 48V DC systems (Max 60V DC)
* Fuse Type: Class-T Fuse (and T-Fuse)
* Supported Fuse Ratings: Accommodates Class-T fuses from 225A up to 600A (fuse not included)
* Busbar Current Rating: 1000A
* Connection Terminals: M10 Stainless Steel Bolts and Nuts
* System Compatibility: Part of the Victron Energy Lynx Distribution System
Invest in the Victron Energy Lynx Class-T Power-In M10 to build a power system with a foundation of unmatched safety and professional quality. It is the ideal choice for marine, RV, off-grid, and commercial applications where system reliability is non-negotiable
