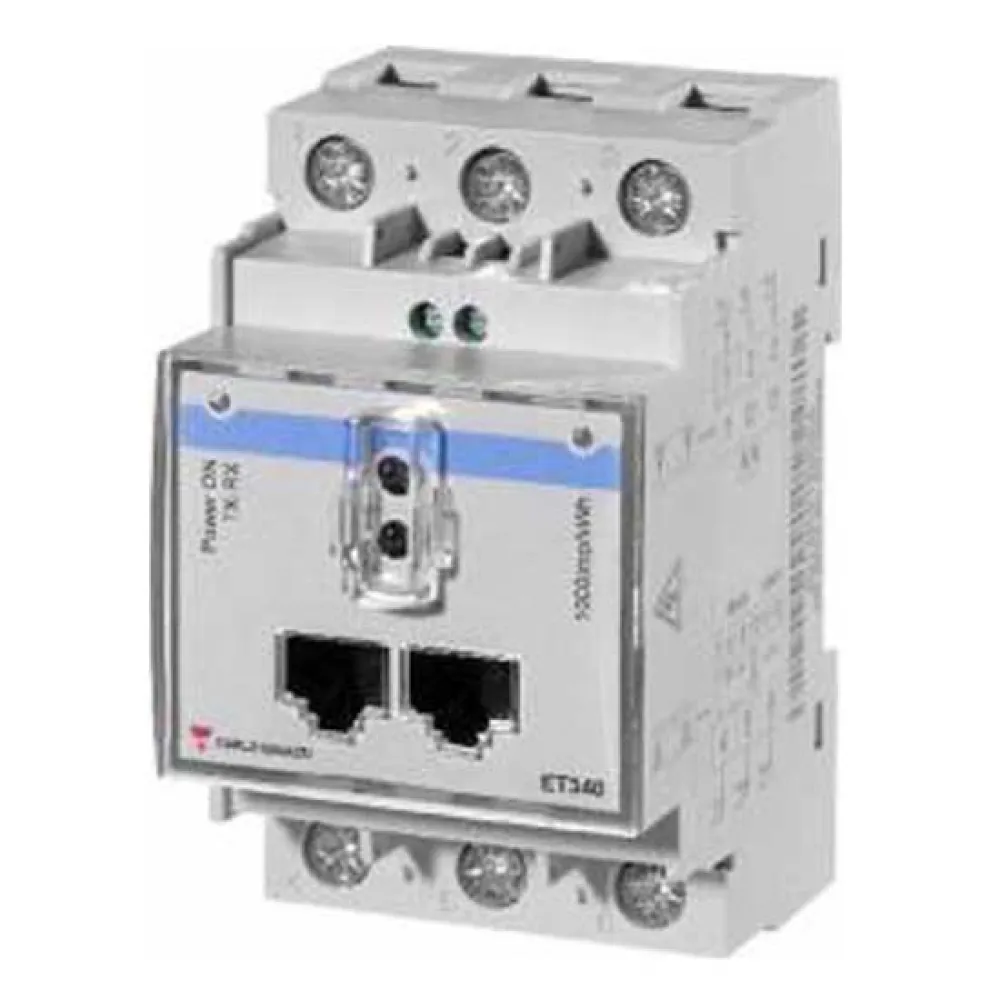

Victron Energy ET340 3 Phase Max 65A/Phase Energy Meter
Category: Electronics
Subcategory: Electrical connections
Gain unparalleled insight and control over your three-phase power systems with the Victron Energy ET340 Energy Meter. Engineered for precision and seamless integration, this advanced energy measurer is the cornerstone of any sophisticated Energy Storage System (ESS), providing the critical data needed for optimal performance, efficiency, and system management. Designed for professionals and enthusiasts who demand accuracy, the ET340 is the definitive tool for monitoring and managing complex electrical installations.
The primary benefit of the ET340 lies in its ability to provide a complete, real-time overview of your energy consumption and generation. When integrated into a Victron ecosystem, it empowers your system to make intelligent decisions, such as when to store excess solar power, when to discharge batteries to support loads, or when to draw from or feed back to the grid. This level of control is essential for maximizing self-consumption of renewable energy, reducing electricity bills, and ensuring a stable, reliable power supply. Its versatility makes it an indispensable component for a wide range of applications, from residential solar installations to commercial and industrial power management setups.
Key Benefits & Main Features:
* Precision Three-Phase Monitoring: Accurately measures power and energy across all three phases, providing granular data for balanced load management and system analysis up to a maximum of 65A per phase.
* Essential for Energy Storage Systems (ESS): Acts as the critical grid meter, feeding live data to the system´s control hub (like a Cerbo GX or Color Control GX) to enable advanced control functions and optimize battery charging and discharging cycles.
* Versatile Measurement Applications: Not limited to grid metering, the ET340 is perfectly suited to measure the output of a PV Inverter or an AC Genset, giving you a comprehensive view of all energy sources within your installation.
* Seamless Victron Integration: Designed to work flawlessly within the Victron Energy ecosystem. All measured data is clearly displayed on a GX device and made available worldwide through the free Victron Remote Management (VRM) portal, allowing for remote monitoring and analysis.
* Flexible Installation Options: Offers both wired and wireless connectivity to your GX device. Choose a direct wired connection for ultimate reliability or a wireless Zigbee link for installations where running a data cable is impractical.
* Professional, Compact Design: Housed in a standard DIN-rail mountable enclosure, the ET340 installs neatly and professionally inside your main distribution box, ensuring a clean and secure setup.
The ET340 (for three phase max.
65A) Energy Meter is typically used in an Energy Storage System.
To measure the power and energy of the whole application at the distribution box.
Or to measure the output of a PV Inverter, to display the data on the Color Control GX and the VRM Portal.
The Energy Meter can be used to:
Grid meter, and used as control input for an ESS System (1).
Measure the output of a PV Inverter.
Measure the output of a AC Genset.
The meter is connected to the Color Control GX.
There are two options in its wiring:
Direct connection, either using the RS485 to USB interface with 1.8m cable length, or the 5.0m cable.
Wireless connection via Zigbee.
Technical Specifications:
* Attribute: Measurers
* Model: ET340 (Carlo Gavazzi ET340DINAV231XS1X)
* System Type: 3 Phase (with Neutral); also supports single-phase use
* Maximum Current Rating: 65A per phase
* Nominal Voltage: 230/400V AC L-N / L-L
* Communication Interface: RS485
* Display: Backlit LCD showing Voltage, Current, Power (W), and Total Energy (kWh)
* Mounting: 3-Module DIN-rail enclosure
* Accuracy Class: Class 1 for active energy
* Configuration: No programming required when used with Victron GX devices
