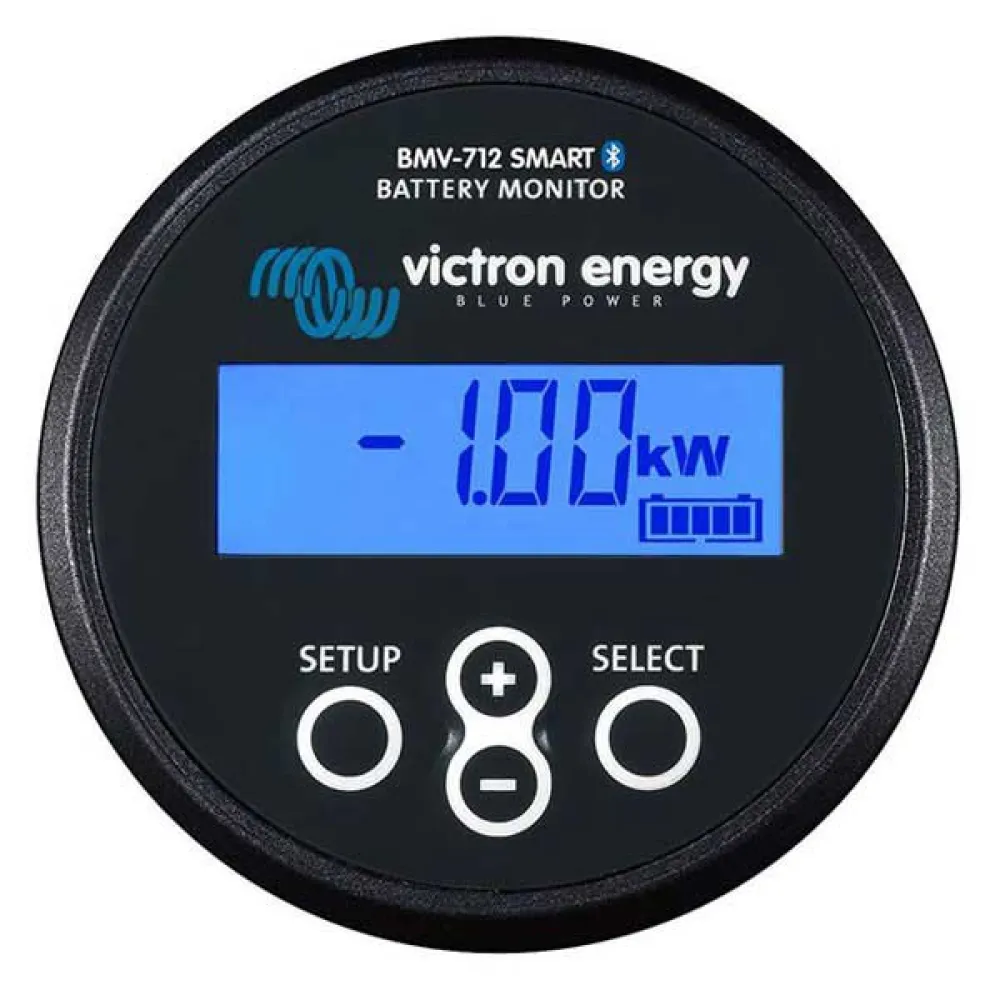

Victron Energy BMV-712 Smart Monitor | Precision Battery Monitoring
Take complete control of your DC power system with the Victron Energy BMV-712 Smart Monitor. Functioning as an exceptionally accurate “fuel gauge” for your battery bank, this advanced instrument eliminates guesswork and provides the critical data needed to manage your power resources effectively, protect your battery investment, and ensure system reliability. Ideal for RVs, marine vessels, off-grid solar installations, and any application relying on a battery bank, the BMV-712 is the professional´s choice for high-precision battery monitoring.
The primary function of this state-of-the-art monitor is to calculate the state of charge (SoC %), amp-hours consumed, and the remaining “time-to-go” at the current rate of discharge. By accurately tracking every amp that goes in and out, it helps prevent damaging deep discharges, which can significantly shorten the life of expensive batteries. With the BMV-712, you can optimize your energy usage, plan for recharging cycles, and gain total peace of mind knowing the exact status of your power reserves.
Key Benefits:
* Protect Your Battery Investment: Prevents under- and over-charging and avoids costly premature battery failure by providing precise, real-time data.
* Eliminate Power Anxiety: Instantly know your battery´s State of Charge, remaining runtime, and historical usage, so you´re never caught by surprise with a dead battery.
* Optimize System Performance: Use detailed historical data and live statistics to understand your power consumption patterns and improve overall energy efficiency.
* Early Problem Detection: The unique midpoint voltage monitoring feature helps detect potential issues with individual cells or batteries within a bank before they cause significant damage.
Main Features:
* Built-in Bluetooth for Smart Connectivity
* Full integration with the VictronConnect App
* Monitors Battery Voltage, Current, Power, and Amp-hours Consumed
* Calculates State of Charge (SoC %) and Time-to-Go
* Midpoint Voltage Monitoring for Battery Balancing
* VE.Direct Communication Port for System Integration
* Programmable Visual and Audible Alarms
* Extensive Historical Data Storage
* Ultra-High Resolution Current Measurement
* Low Power Consumption
BMV-712 Smart With integrated Bluetooth, the BMV Smart is ready for the era of the Internet of Things (IoT).
With the implementation of Bluetooth in most other products of Victron Energy, wireless communication products will simplify installation and improve system performance.
Technical Specifications:
* Supply Voltage Range: 6.5 – 70 VDC
* Current Draw (backlight off): < 1mA
* Input Voltage Range (auxiliary battery): 6.5 – 70 VDC
* Battery Capacity Range: 20 – 9999 Ah
* Operating Temperature Range: -40 to +50°C (-40 to 120°F)
* Temperature Measurement: Optional (requires ASS000100000)
* Communication Port: VE.Direct
* Relay: 60V / 1A normally open (function can be inverted)
* Shunt : 500A / 50mV
* Current Resolution: 0.01A
* Voltage Accuracy: ± 0.3%
* Current Accuracy: ± 0.4%
