Description

Ensure the longevity and peak performance of your marine battery system with the Victron Energy Blue Solar PWM-LCD&USB 10A charge controller. As a leading solution in the field of solar power Regulators, this device is engineered to provide intelligent, reliable, and efficient management of the energy flowing from your solar panels to your battery bank. Perfectly suited for the demanding environment of boats and marine vessels, it automatically detects whether your system is 12V or 24V, offering seamless integration and peace of mind.
Protect Your Battery Investment
The core function of this advanced PWM charge controller is to safeguard your expensive batteries from damage. It employs a sophisticated multi-stage charging algorithm to prevent overcharging, while its integrated load output feature is designed to stop over-discharging, a common cause of premature battery failure. By intelligently managing the charge and discharge cycles, the Blue Solar controller significantly extends the service life of your battery bank, ensuring you have reliable power when you need it most.
Intuitive Control and Monitoring at a Glance
Take the guesswork out of managing your solar power system. This controller features a clear liquid crystal display (LCD) that provides real-time status updates and access to a comprehensive setup menu. Easily monitor battery voltage, solar panel output, and load current. The user-friendly interface allows you to configure charging parameters and customize settings to perfectly match your specific battery type and usage patterns, giving you complete control over your onboard power system.
Versatile Power and Modern Convenience
Designed for the modern boater, the Victron Blue Solar controller includes two integrated 5-volt USB outputs. With a combined maximum current of 2A, you can conveniently charge smartphones, tablets, GPS units, and other essential USB-powered devices directly from the controller, without needing separate adapters or inverters. This blend of robust battery management and modern convenience makes it an indispensable component for any solar-equipped vessel.

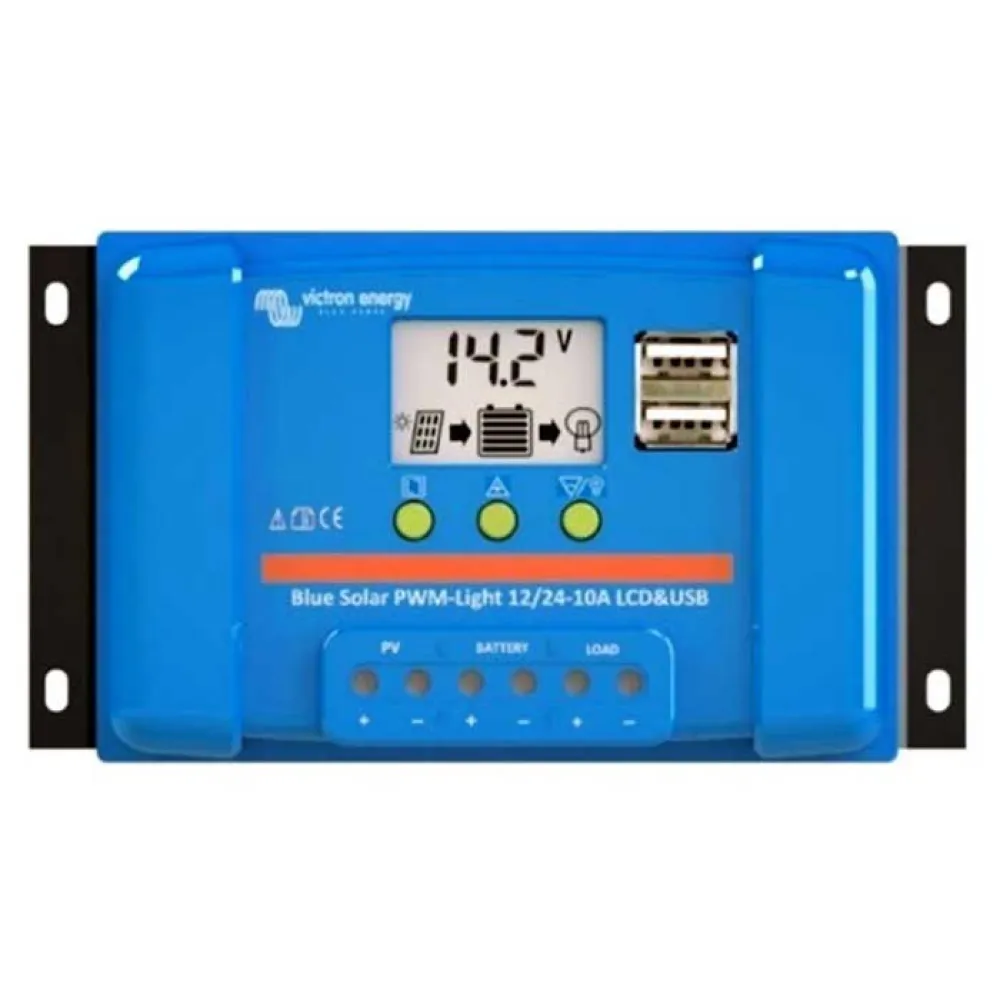

Victron PWM-LCD & USB 10A PWM solar PWM charge controller with LCD display for tracking and configuration and USB connection.
Features:
Liquid crystal display.
For tracking and configuration.
Charging output.
The battery can be prevented from over-discharging by connecting all loads to the charging output.
This output will disconnect the load when the battery has discharged to a preset voltage.
Some loads (especially inverters) are best connected directly to the battery, and the inverter remote control to the load output.
A special interface cable may be required.
please, refer to the manual.
This option allows presetting the ON-time after twilight.
Programmable battery charging algorithm.
Pre-programmed algorithms for AGM, GEL, flooded or LiFePO4 batteries (only with internal BMS).
Two 5 volt USB outputs.
Maximum current (both outputs together):
2A.
Technical Specifications:
* Battery Voltage: 12V / 24V (Automatic selection)
* Rated Charge Current: 10A
* Technology: Pulse Width Modulation (PWM)
* Maximum Solar Voltage: 28V (for 12V system) / 55V (for 24V system)
* USB Output: 2x5V, 2A total maximum current
* Self-consumption: < 10 mA
* Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature
* Display: LCD Screen
