Description

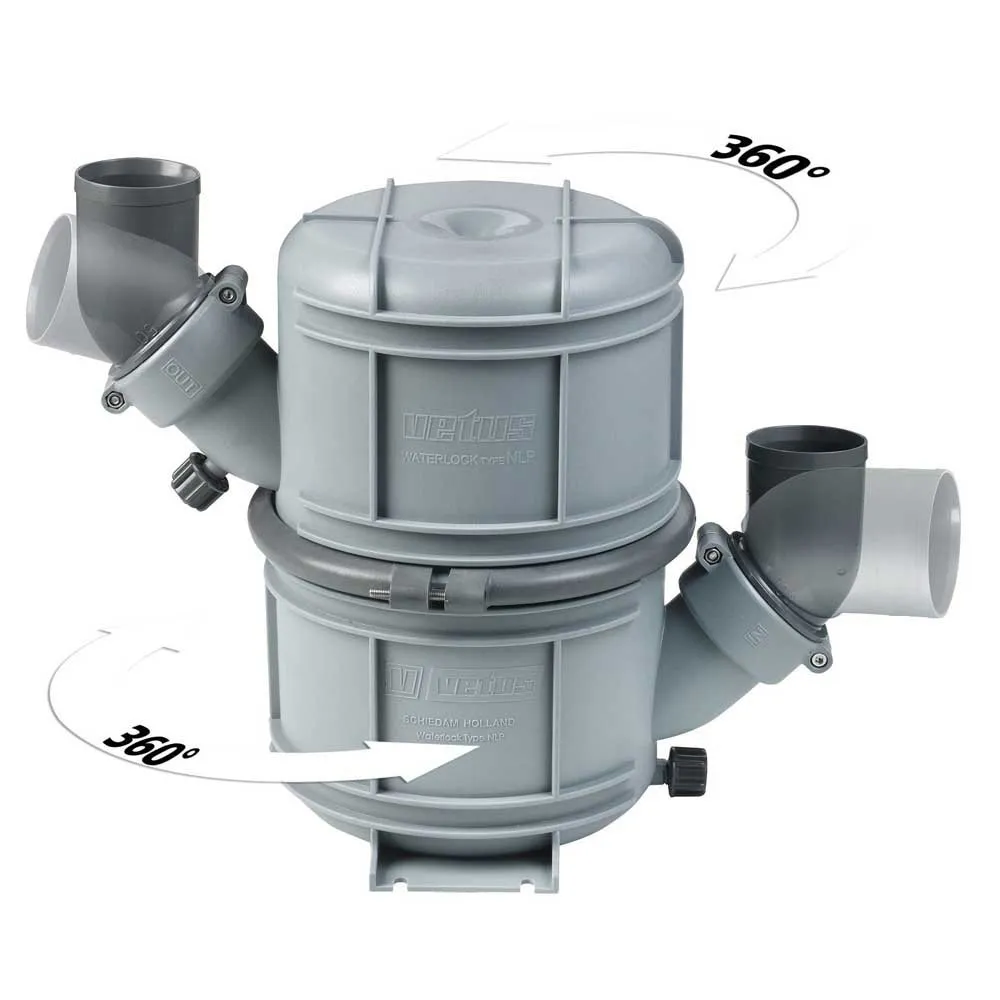

Waterlock/muffler with dual stage construction. Superior silencing of exhaust noise with minimal back pressure. 360° rotatable top chamber and connectors.
Our NLP waterlocks are of dual stage construction featuring upper and lower chambers with a horizontal partition plate and a riser tube through the centre. The installation of the exhaust system, even in confined engine spaces, is greatly simplified due to the 360º rotating top chamber and both in- and outlet connectors. For optimum silencing of exhaust noise you can also use a VETUS muffler and gooseneck, after the waterlock. Type NLP90 has an exhaust hose with inside diameter of Ø 90 mm with a capacity of 10 litres Comes with 2 securing straps. Including mounting brackets for bulkhead or floor mounting.
Specifications:
– Function: Waterlock + Muffler
– Capacity (litres): 10
– Inlet hose connection diameter (mm): 90
– Outlet Hose connection diameter (mm): 90
– Length (mm): 515
– Width (mm): 240
– Height (mm): 362
– Position: Vertical
– Rotatable hose connections: Yes
– Rotatable body parts: Yes
– % Noise reduction: 25
