Description

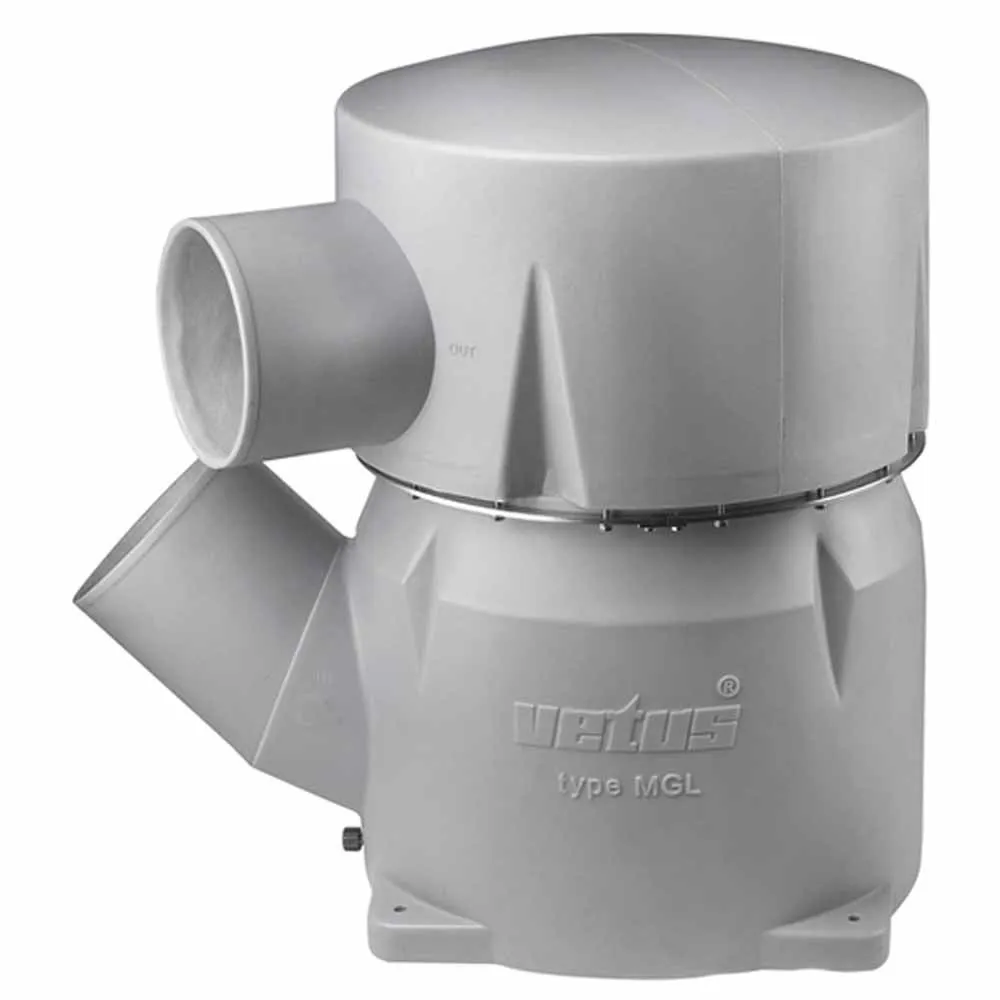

Waterlock for water injected exhaust systems, with rotatable top. Made of corrosion-free synthetic materials. Excellent sound reduction. Capacity 23 liters. This type of waterlock is designed for modern high performance boats with one or two large engines which have little space to spare in the engine room. The outlet connection at the top can rotate through 360º and the inlet connection is at an angle of 45º upward. Type MG can only be installed in water injected exhaust systems. Its body is entirely made of synthetic materials, therefore not susceptible to corrosion or galvanic action.
Features:
– Excellent sound reduction
– Minimal back pressure
– Drain valve for winter storage
– Suitable for Ø 90, 102, 127, 152, 209 or 250 mm internal hose diameters
– Capacities of 23, 75 or 130 litres
– Comes with stainless steel (AISI 316) clamp bands
Specifications:
– Function: Waterlock
– Capacity (litres): 23
– Inlet hose connection diameter (mm): 90
– Outlet Hose connection diameter (mm): 90
– Length (mm): 540
– Width (mm): 270
– Height (mm): 450
– Position: Vertical
– Heavy Duty: Yes
– Rotatable body parts: Yes
– % Noise reduction: 25
Grey
