Description

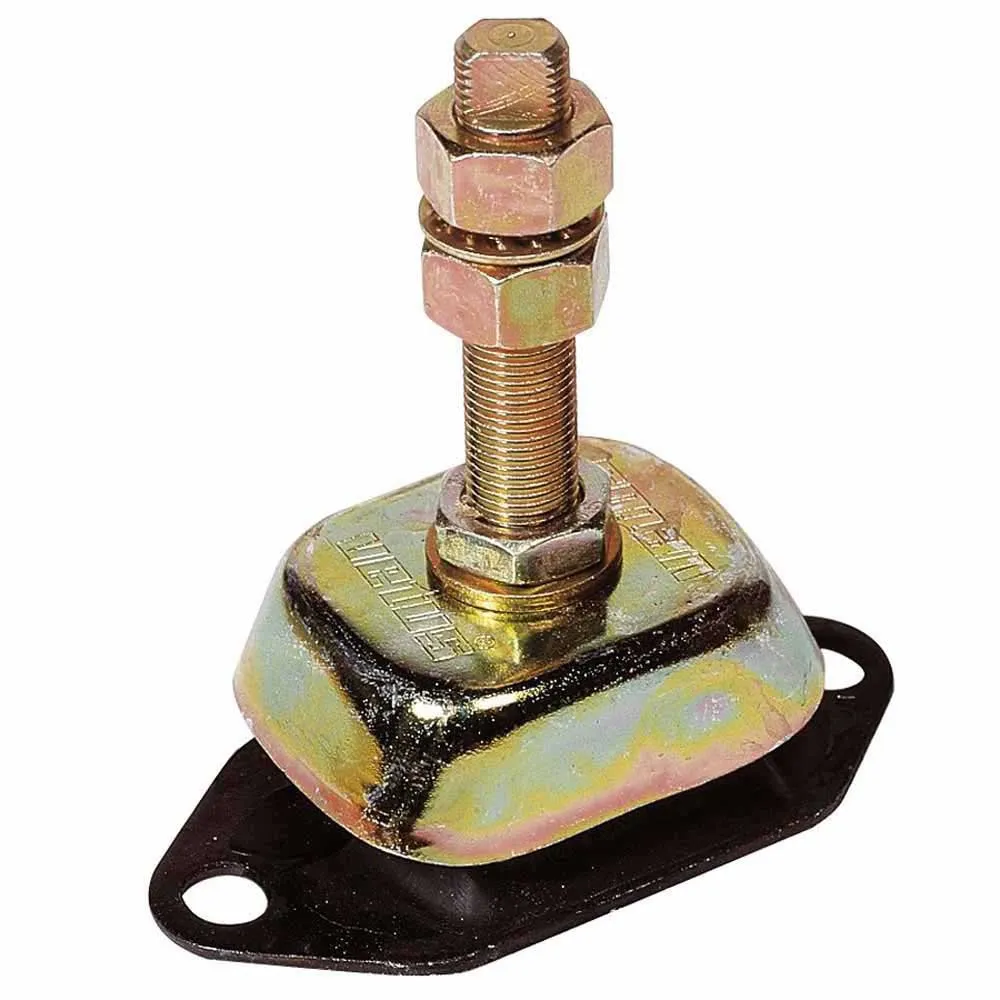

VETUS K100V Flexible Motor Support for Marine Engines
Transform your boating experience with the VETUS K100V Flexible Motor Support, a pinnacle of engineering designed to bring unparalleled quiet and smoothness to your vessel. Specifically created for the demanding marine environment, this engine mount is the ultimate solution for boat owners seeking to reduce noise and vibration from their inboard engines, transforming a loud engine bay into a source of quiet, reliable power. By effectively isolating engine vibrations from the hull, the K100V significantly enhances onboard comfort for you and your crew, reduces structural stress on your boat, and protects sensitive onboard electronics from the damaging effects of constant vibration.
The core of this exceptional performance lies in its advanced design. This Flexible Mounting Contains A Special Rubber Compound With Excellent Vibration Damping Properties. This proprietary compound is meticulously formulated to absorb a broad spectrum of engine frequencies, ensuring a serene atmosphere whether you are idling in the marina or cruising at speed. The VETUS K100V is engineered not just to dampen vibrations but to expertly manage engine movement. Its unique stiffness ratio provides optimal flexibility in the vertical direction to absorb engine vibrations while offering superior resistance against fore-and-aft and athwartships movement. This ensures your engine remains stable under propeller thrust and during the rolling motion of the vessel, protecting the drivetrain alignment and ensuring efficient power transfer.
Built for durability and long-term reliability in harsh saltwater conditions, the VETUS K100V features robust metal components that resist corrosion. Its intelligent design also incorporates a crucial fail-safe feature, providing maximum security by ensuring the engine remains captured even in the unlikely event of a total rubber failure. This offers invaluable peace of mind when navigating challenging waters. Ideal for new installations or as a high-performance upgrade for worn-out mounts on marine diesel engines and generators, the K100V is a vital component for any discerning boat owner.
—
Specifications:
* Min Load (per mount): 50 Kg
* Min Compression: 2 Mm
* Max Load (per mount): 100 Kg
* Max Compression: 4 Mm
* Hardness ° Shore: 65
Stiffness Ratio:
The stiffness ratio indicates the mount´s resistance to movement in different directions. The VETUS K100V is engineered for optimal marine performance:
* Vertical: 1 (Optimized for maximum vibration damping)
* Athwartships: 1.4 (Controls side-to-side engine movement)
* Fore & Aft: 1.4 (Manages engine movement from propeller thrust)
