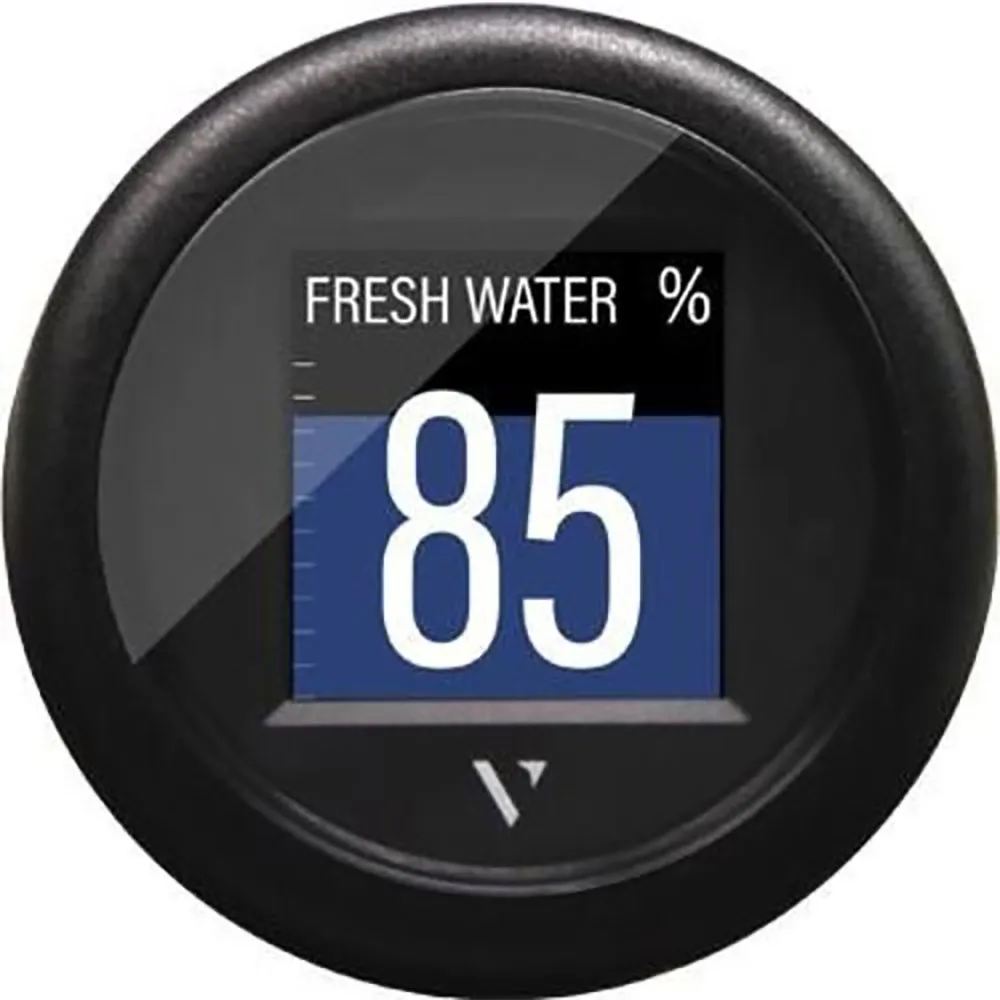

VDO VL Flex 52 J1939 1.4´´ Monitor: The Ultimate Configurable CAN Bus Display
Streamline your dashboard and gain complete control over your vehicle´s data with the VDO VL Flex 52 J1939 1.4´´ Monitor. This revolutionary instrument from the trusted VDO brand consolidates a wide array of engine and system parameters into a single, compact, and highly configurable 52mm gauge. Designed for modern vehicles and marine applications equipped with a J1939 CAN bus network, the VL Flex eliminates the need for multiple individual gauges, saving valuable dashboard space, reducing wiring complexity, and providing a clean, modern aesthetic. It´s the intelligent solution for vehicle manufacturers, system integrators, and enthusiasts looking for powerful, flexible data visualization.
The core benefit of the VL Flex lies in its incredible versatility. Using the companion PC configuration tool, you can fully customize the display to show the exact information you need. Choose a single value for a large, easy-to-read display, or select a quad-view to monitor four different parameters simultaneously. From engine RPM and oil pressure to fuel levels and battery voltage, this single instrument adapts to your specific monitoring requirements. This makes it one of the most adaptable and cost-effective digital monitors available, perfect for boats, agricultural machinery, construction equipment, and custom vehicle builds.
Main Features:
* Fully Configurable Display: A vibrant 1.44-inch full-color TFT screen presents your data with exceptional clarity. Configure the display layout to show single, dual, or quad information screens via an easy-to-use PC application.
* Direct J1939 CAN Bus Connectivity: Plugs directly into your engine´s data network, allowing it to read and display a vast range of standard Parameter Group Numbers (PGNs) without the need for additional sensors or converters.
* Sunlight-Readable and High-Contrast: The optically bonded display minimizes glare and maximizes contrast, ensuring excellent readability even in direct sunlight and challenging lighting conditions.
* Compact and Standardized Design: Fits into a standard 52mm (2 1/16″) dash cut-out, making it the perfect drop-in replacement for traditional analog gauges or for new installations where space is at a premium.
* Robust and Weatherproof Construction: Engineered for durability in harsh environments, the front of the unit is sealed to an IP67 protection rating, making it completely dust-tight and resistant to water ingress.
* Customizable Alerts: Set visual warnings and alarms for critical parameters, such as high coolant temperature or low oil pressure, to ensure you are immediately notified of potential issues.
Technical Specifications
* Product: VDO VL Flex 52 J1939 1.4´´ Monitor
* Communication Protocol: SAE J1939
* Operating Voltage: 12V / 24V (nominal)
* Current Consumption: < 100mA
* Installation Diameter: 52 mm (2 1/16″)
* Overall Diameter: 61 mm
* Installation Depth: 50 mm
* Protection Rating (Front): IP67
* Connector: 8-pin MQS Tyco / Hirschmann
* Lens: Optically Bonded PMMA
* Displayable Data Examples: Engine Speed (RPM), Engine Hours, Coolant Temperature, Oil Pressure, Oil Temperature, Fuel Level, Boost Pressure, Battery Voltage, and many other J1939 parameters
