Description

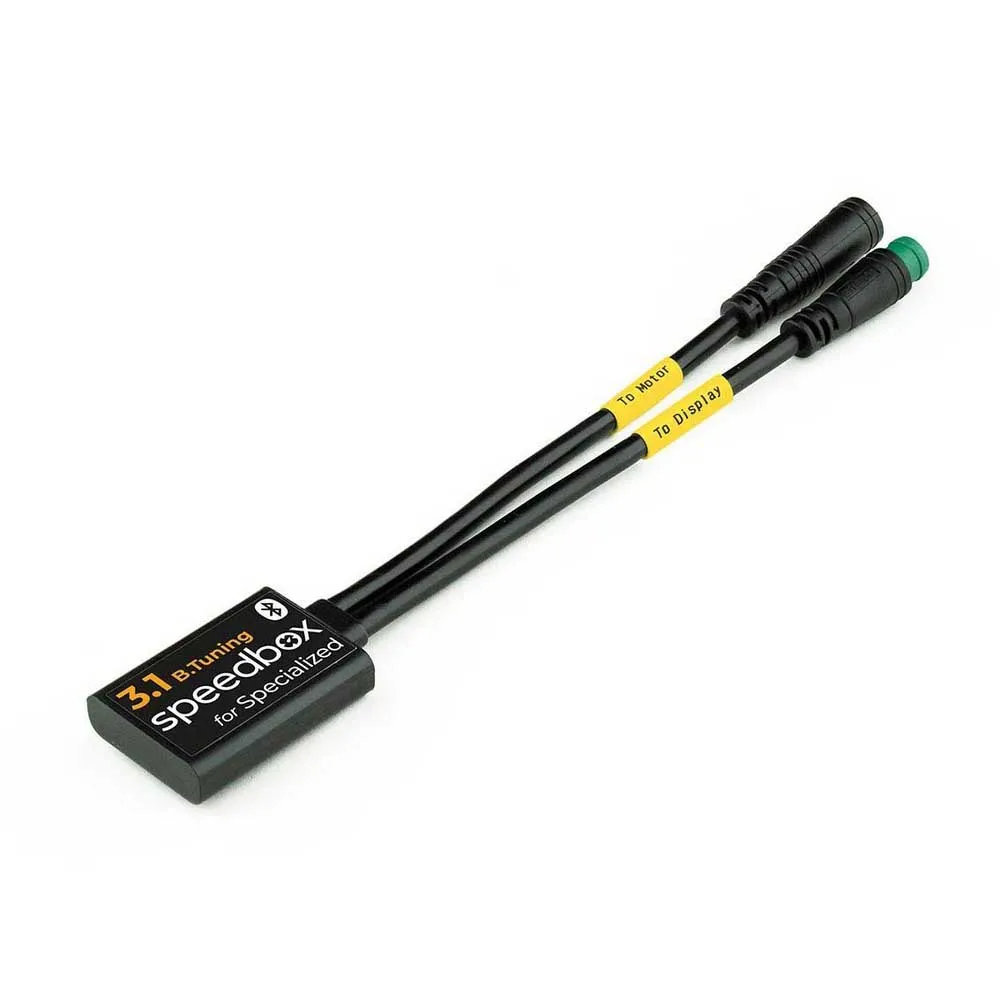

A third-generation tuning chip with Bluetooth for Specialized e-bikes (including SL motors) and TCU/MasterMind TCU control units.
SpeedBox 3.1 B.Tuning offers an advanced connection between your Specialized e-bike and your smartphone thanks to Bluetooth technology.
The chip removes the e-bike´s speed limit, allowing you to reach speeds of up to 50 km/h and fully enjoy your rides.
How does SpeedBox 3.1 B.Tuning for Specialized work?.
Install the SpeedBox inside the bike frame, beneath the TCU/MasterMind TCU unit.
The display will show a maximum assistance speed of 50 km/h.
To activate tuning, switch the e-bike off and on twice.
The chip will then be active.
You can deactivate tuning via the SpeedBox App or manually by changing modes:
from TURBO, go three levels down and then three levels up.
(TRAIL → ECO → OFF → ECO → TRAIL → TURBO).
This will restore the assistance limit to 25 km/h.
Adjusting the speed limit.
You can also adjust the speed limit using the WALK function.
Each brief activation increases the limit by 5 km/h.
For example, a value of 2.5 km/h on the display represents a real limit of 25 km/h, and 5.0 km/h corresponds to 50 km/h (values may appear rounded on some displays).
The value is saved automatically after 5 seconds of inactivity and confirmed by switching the bike off and on twice.
You can check the current assistance speed using the + – + – button combination or directly in the app.
SpeedBox App for SpeedBox 3.1 B.Tuning.
The SpeedBox App was specifically designed for the SpeedBox 3.1 B.Tuning model.
It uses Bluetooth to connect your e-bike with your smartphone.
Once installed and paired, you can view your ride data, save statistics, and compare your results with friends.
Main SpeedBox App features:.
-Tuning control.
-Save and view ride data.
-Adjust the speed limit.
-Hidden tuning mode.
-Motor lock.
-Motor diagnostics.
-Wheel circumference setup.
The SpeedBox 3.1 B.Tuning chip also works without the app, but the app is an excellent additional tool to monitor your data and performance.
Download the SpeedBox App.
Download the SpeedBox App on your phone before purchasing the chip.
You can try the demo version and make sure it works properly with your device.
Bluetooth 4.0 or higher is required for connection.
Installing the SpeedBox 3.1 B.Tuning chip.
SpeedBox uses original connectors that ensure easy and secure installation.
You can follow our step-by-step instructions and video guides to install the chip yourself.
Removing the chip is just as simple.
If you have any questions, please don´t hesitate to contact us.
Legal notice.
Using modified e-bikes on public roads may be prohibited by law in some countries.
The manufacturer is not responsible for any damages or loss of warranty resulting from the use of SpeedBox.
This product must be used only on private property and under your own responsibility.
We recommend wearing protective gear and taking appropriate safety measures to avoid injuries.
