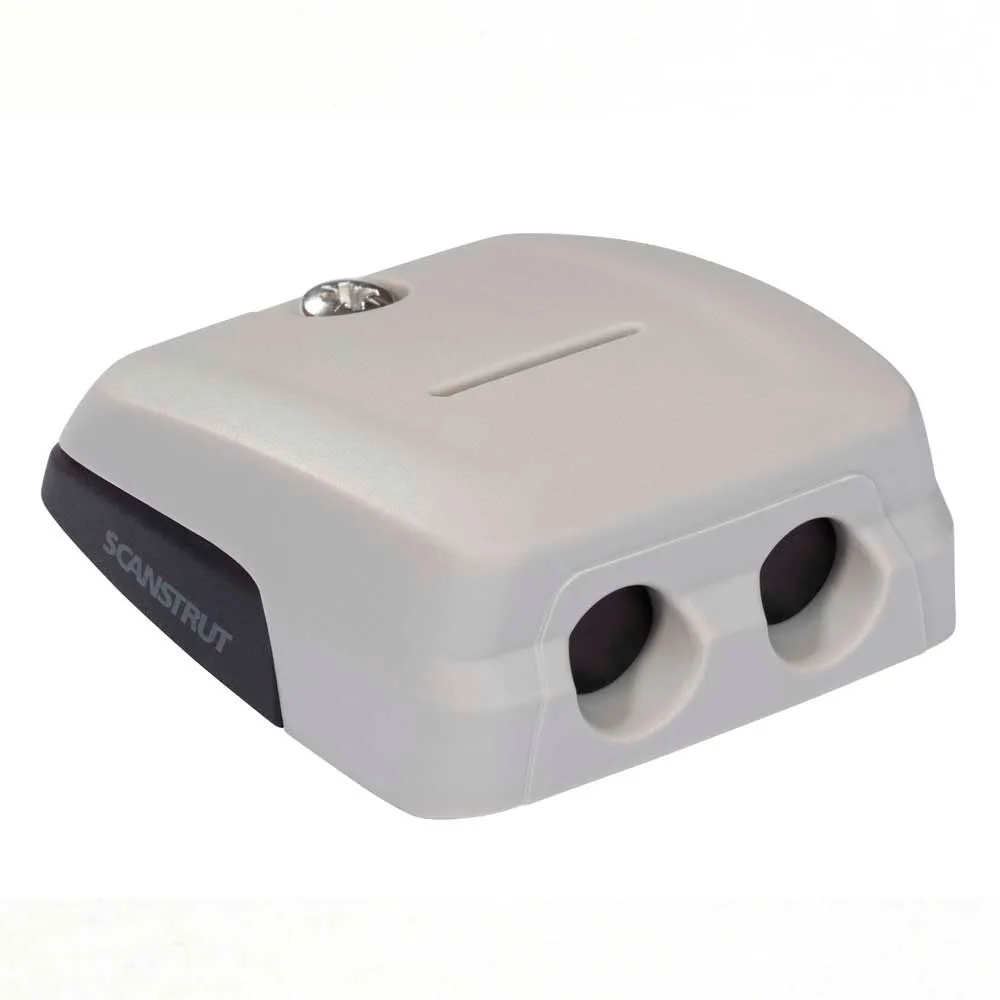

SCANSTRUT IP68 Double Horizontal Cable Grommet: The Ultimate Waterproof Seal for Two Cables
Achieve a completely secure, professional, and 100% watertight installation for your marine and automotive electronics with the SCANSTRUT IP68 Double Horizontal Cable Grommet. Engineered for the most demanding environments, this cable seal provides the ultimate solution for routing two cables through any deck, bulkhead, or panel without the risk of water ingress. Say goodbye to messy, unreliable silicone sealants and hello to a flawless, robust, and easy-to-install system that protects your valuable equipment. Whether you are installing solar panels, navigation lights, antennas, or any other cabled electronics on your boat, RV, or outdoor enclosure, this grommet ensures unwavering performance and total peace of mind.
The innovative design allows two cables to pass through a single entry point, saving space and reducing the number of holes you need to drill. This not only maintains the structural integrity of your vessel or vehicle but also creates a much cleaner and more organized appearance. Built to withstand the harshest conditions, it provides a superior alternative to traditional cable glands.
Key Benefits:
* Absolute Watertight Protection: With an independently tested and certified IP68 rating, this grommet guarantees complete protection against dust ingress and long-term immersion in water under pressure. It provides a failsafe barrier, safeguarding your sensitive electronics from costly water damage.
* Streamlined Dual Cable Installation: Neatly route two cables side-by-side through one compact unit. This simplifies your wiring, reduces clutter, and delivers a professional-grade finish that enhances the value and reliability of your setup.
* Effortless and Reliable Fitting: The design features captive nuts on the base, making it easy to tighten the mounting screws even when access is difficult. The tapered bung forms a secure seal, and each unit is supplied with both pre-drilled and blank bungs to accommodate a wide range of cable sizes.
* Unmatched Durability: Constructed to endure extreme exposure to sunlight, saltwater, and physical impact. The UV-stable and high-impact housing will not degrade, crack, or discolor over time, ensuring long-lasting performance in marine and outdoor applications.
Main Features:
* Certified 100% Watertight IP68 Seal
* Dual Horizontal Cable Entry for a Tidy Installation
* Low-Profile, Impact-Resistant Housing
* UV-Stable Construction for Superior Longevity
* Tapered Bung Forms a Watertight Gasket
* Captive Nuts for Easy Assembly and Secure Mounting
* Supplied with Pre-drilled and Blank Bungs for Maximum Versatility
* Installation Does Not Require Messy Sealant
Attributes:
* Cable Entries (Pins): 2
Technical Specifications:
* Waterproof Rating: IP68
* Fits Cable Diameter: 6mm – 10mm (0.24″ – 0.39″)
* Max Connector Diameter Pass-Through: 21mm (0.83″)
* Orientation: Horizontal
* Mounting: Requires 2 x M4 (No.8) mounting screws
* Height Above Surface: 23mm (0.90″) White
