Description

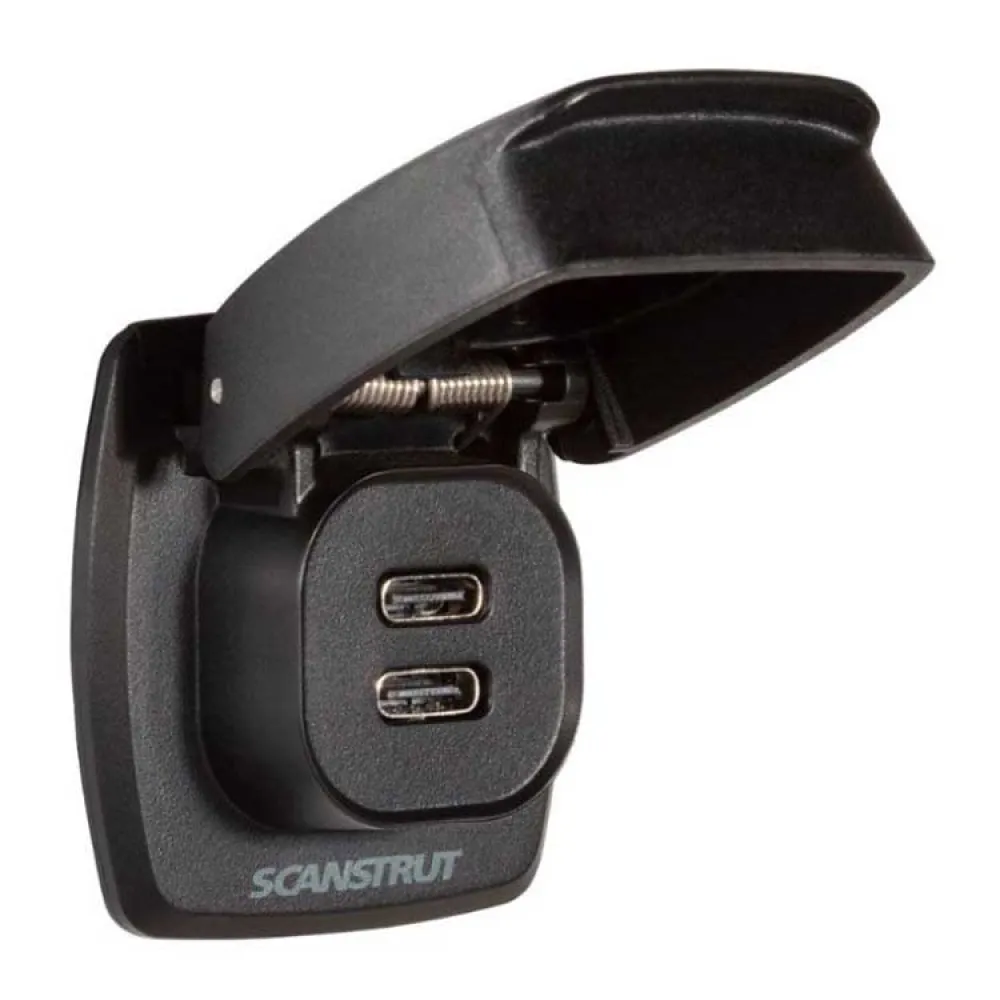

Flip Pro Max is designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. This provides the fastest charging for your devices onboard.
When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.
Featuring a super-compact footprint, Flip Pro Max is constructed from premium, marine-grade materials. and is IPX4 waterproof, making it completely washdown-ready.
Flip Pro Max is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets, phones and any other USB-C powered devices onboard.
Marine Ready:
– Internal anti-corrosion protective coating.
– UV resistant.
– 316 stainless hinge and spring.
– IPX4 waterproof with the cover closed.
– Important information
– To maximize charge performance, use the cable supplied with your tablet, phone etc. (C to C, or C-lightning)Phones charge at the same speed on either a12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
Universal:
– Universal fit for any USB-C connectors.
– Fast charge (60W max) up to 2 devices at a time.
Installation:
– Easy install, using a Ø32mm (1.25”) hole saw.
– Supplied as standard with an optional front fit bezel.
Specifications:
USB – C output:
– 60W max on 24V system
– 36W max on 12V system
– Input Voltage: 10-32V DC (12/24V system)
– Input Current: Max 6A (10A fuse recommended)
– Standby Draw: 0.01W
– Certification: CE, FCC, UKCA, C-Tick, ROHS, WEE
Output (Type C):
– 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
– 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A Max
– 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A
