Description

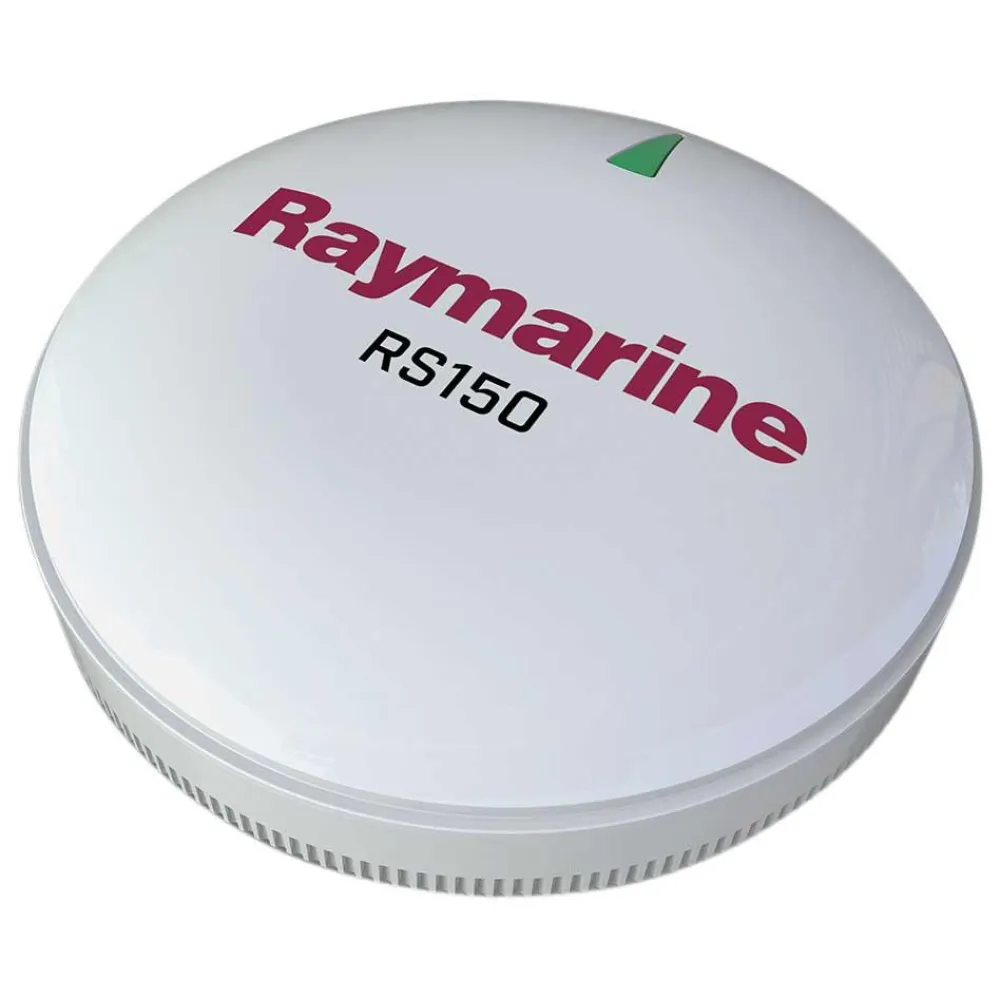

The Rs150 Gps Is A High Performance, 72-Channel, Remotely Mounted Gps Sensor For Raymarine Navigation Systems.
The Rs150 Offers Fast 10hz Position Updates And Enhanced Accuracy.
The Rs150 Is Also A Gnss Receiver And Supports The Glonass Global Navigation Satellite System.
Features:
– 72-Channel Gps Receiver.
– Fast 10hz Position Updates.
– Satellite Differential Gps-Compatible.
Space-Based Augmentation System (sbas) Enabled With Wass, Egnos, Msas And Gagan Support.
– A Gnss Receiver With Glonass Compatibility.
– Low Power Consumption:
30ma (1 Len).
– Seatalkng And Nmea2000 Compatible (using A Device Net Adapter Cable).
– Designed For Low Profile Surface Mounting Or Optional Pole Mounting.
Specifications:
– Nominal Supply Voltage:
12v D.C.
Powered By N2k Bus.
– Operating Voltage Range:
8.
– 32v Dc.
– Power Consumption:
30 Ma Max (nmea Len = 1).
– Operating Temperature:
– 13ºf To 131ºf (-25ºc To +55ºc).
– Relative Humidity:
Max 93%.
– Waterproof:
Ipx6/7.
– Supported Connection Protocols:
Seatalkng:
Nmea 2000 (certified) (via Devicenet Adaptor).
– Sensitivity:
High Sensitivity.
– Acquisition Down To.
– 163dbm.
– No.
Of Channels:
72.
– Positioning System:
Gps & Glonass.
– Satellite Differential Type:
Waas (united States).
Egnos (europe).
Msas (japan).
Gagan (india).
– Differential Acquisition:
Automatic.
– Position Accuracy (95%):
<15m.
– Position Accuracy With Sdgps (95%):
<5m.
– Speed Accuracy (95%):
<0.3kt.
– Time To First Fix From Cold Start:
<2 Minutes (< 45 Seconds Typical).
– Time To First Fix From Hot Start:
< 8 Seconds.
– 72 Hour Hold Up Battery Allows For Hot Start.
– Mounting:
Surface/Rail/Pole.
