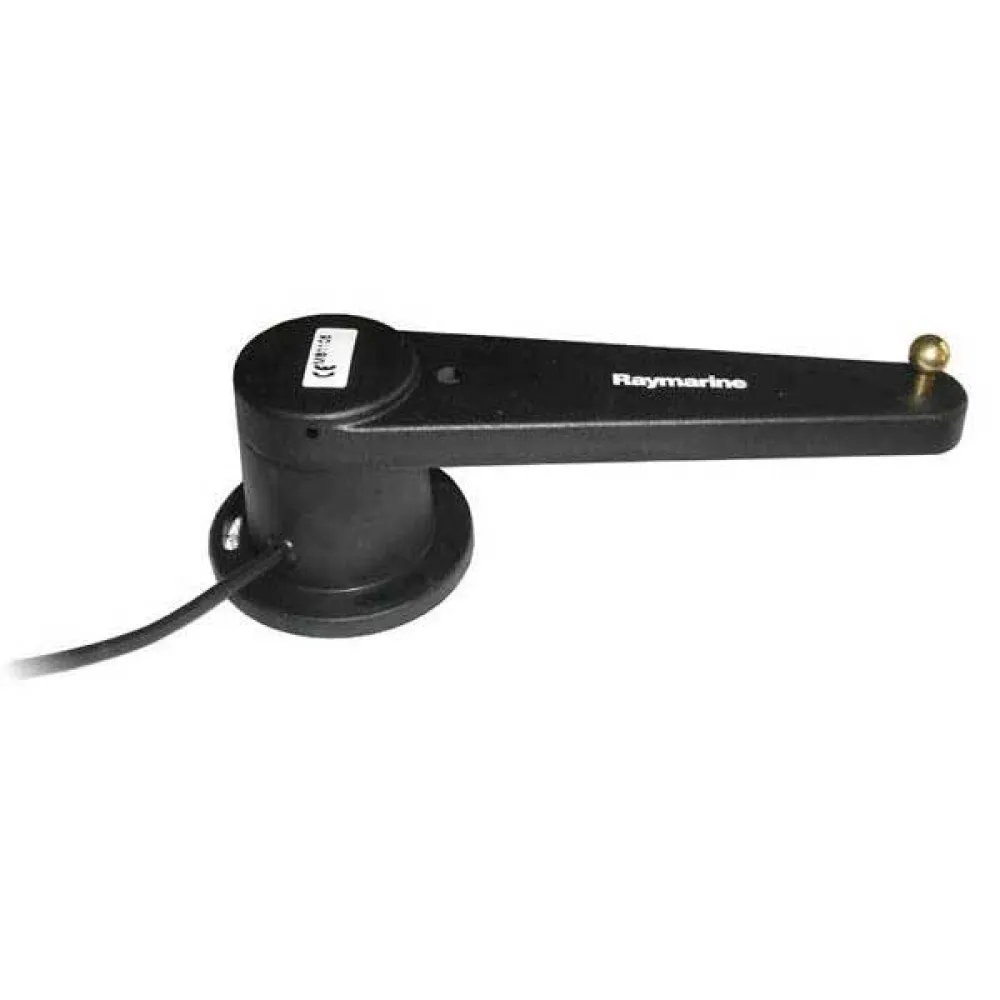

Raymarine M81105 Rudder Reference Transducer
Achieve unparalleled autopilot performance and steering precision with the Raymarine M81105 Rudder Reference Transducer. This essential component is the cornerstone of a responsive and reliable navigation system, providing your autopilot´s course computer with instantaneous, high-accuracy data on your vessel´s rudder position. By constantly monitoring the exact rudder angle, the M81105 enables the autopilot to make subtle, intelligent adjustments, resulting in superior course-keeping, smoother turns, and a more comfortable journey for everyone on board.
Designed for the harsh marine environment, this robust transducer ensures consistent and dependable operation when you need it most. Its feedback allows the autopilot to apply the correct amount of counter-rudder to prevent oversteering, a feature that not only improves the ride but also enhances fuel efficiency by minimizing drag from excessive rudder movements. Whether you are replacing a worn-out unit or completing a new installation, the M81105 is the genuine Raymarine part engineered for seamless integration and long-lasting durability.
Key Benefits
* Enhanced Autopilot Accuracy: Provides real-time, precise rudder angle information to the course computer, enabling smarter steering decisions and exceptional course-keeping.
* Smoother Ride and Control: Allows the autopilot to anticipate and execute smoother course corrections and turns, significantly reducing vessel yaw and improving passenger comfort.
* Increased Efficiency: By minimizing unnecessary rudder movements and preventing oversteering, the transducer helps reduce drag, leading to improved fuel economy and less wear on your boat´s steering mechanism.
* Robust and Reliable: Built to withstand the demanding marine environment, ensuring dependable performance and longevity for your critical navigation systems.
Main Features
* High-precision rotary potentiometer sensor
* Durable, water-resistant housing for protection against the elements
* Designed for direct connection to Raymarine and Autohelm autopilot systems
* Universal mounting design for versatile installation options
* Includes a complete linkage kit for connection to the rudder stock or tiller arm
Rudder reference transducer parts for systems Raymarine and Autohelm autopilot. Includes 10 meters of cable and the elements necessary for installation. This all-in-one package ensures you have everything required for a straightforward setup, getting your system operational with minimal downtime.
Modules and Compatibility
The M81105 Rudder Reference Transducer is a vital module for a wide range of Raymarine and legacy Autohelm autopilot systems. It is the standard-fit transducer for systems including, but not limited to:
* Raymarine ST4000+, ST5000+
* Raymarine SmartPilot S1, S2, S3 series (including G variants)
* Raymarine SPX Series (SPX-5, SPX-10, SPX-30)
* Raymarine Evolution Autopilots (ACU-100, ACU-200, ACU-300, ACU-400)
* Legacy Autohelm ST6000, ST7000, Type 100, Type 300 systems
Technical Specifications
* Model / Part Number: M81105
* Product Type: Rotary Rudder Reference Transducer
* Cable Length: 10 meters (approx. 33 feet)
* Connectivity: Connects directly to the autopilot course computer or control unit
* Construction: Marine-grade plastics and corrosion-resistant metals
* Included Hardware: Transducer unit, 10m cable, linkage rod, tiller pin, mounting bracket, and installation fasteners
