Description

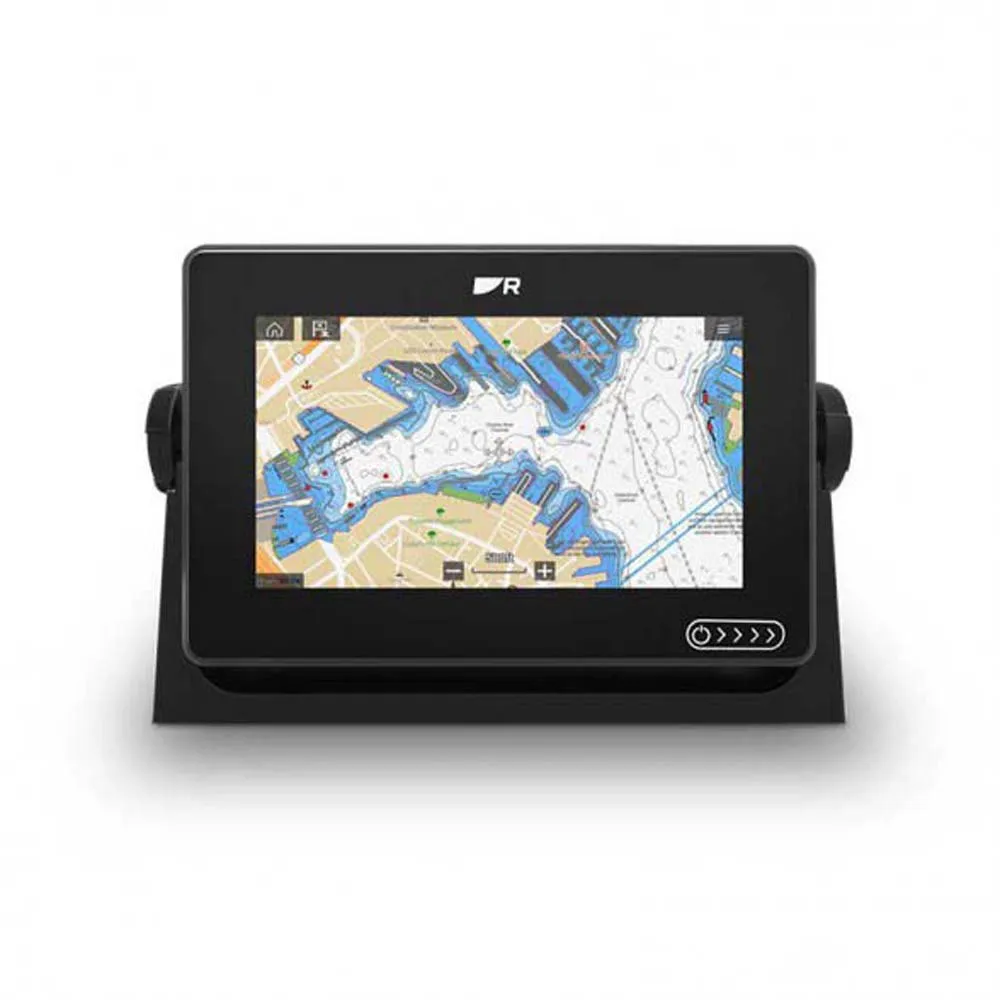

The Performance-Tuned Axiom Plus Is A New Generation Of Award-Winning Raymarine Multifunction Displays. Optimised For Speed, Axiom Plus Is Equipped With A Powerful Quad-Core Processor For Industry-Leading Responsiveness And Speed, Giving You The Power To Seamlessly Redraw Charts, Navigate With Augmented Reality, And Experience Realvision™ 3d Sonar.
Specifications:
– Display Size: 7.0 Inch High Density Ips
– Display Resolution: 1024 X 600 (Wsvga)
– Display Type: Multitouch With Hydrotough™ Rugged Hydrophobic Coating
– Brightness: 1,500 Nits
– Viewing Angle: 85° Top, Bottom, Left, Right
– Dimensions W X H X D: 210 X 142 X 77mm 7.92 X 5.24 X 3.0in (Excluding Trunnion And Cables)
– Weight: 3 Lbs
– Mounting Options: Surface, Flush, Trunnion, (Front Installation Bracket Available)
– Waterproof Rating: Ipx6 / Ipx7
– Operating Temperature Range: -25°C To +55°C (-13°F To +131°F)
– Storage Temperature Range: -30°C To +70°C (-22°F To +158°F)
Power:
– Voltage: 12v Dc (8v To 16v Dc)
– Power Consumption (Full Brightness): 7.34 Watts. Rv Sonar Version 9.84 Watts
Sensors:
– Gnss / Gps Built-In Gnss Receiver: Gps/Glonass/Galileo/Beidou* – 10hz 28 Channel, Future Software Update Required
– Sonar Type (Built-In) Rv Version Equipped With High Chirp, Downvision, Sidevision And Realvision 3d
– Sonar Connections: 25pin Realvision™ Type Connector
Sonar Depth:
– High Chirp Sonar = 900 Feet (274m) | Downvision™ = 600 Feet (183m) | Sidevision™ = 300 Feet (91m) | Realvision™ 3d = 300 Feet (91m)
– External Sonar Option: Yes – Cp100, Cp200, Cp370, Cp470, Cp570, Rvx1000 Via Raynet
– Radar: Yes – Quantum, Digital, Hd Colour / Super Hd Colour And Magnum Radars
– Ais: Yes – Nmea2000 Compatible
– Autopilot Control: Yes – Evolution Autopilot
– Thermal Night Vision: Yes Flir Ax8, M232, M300 Series, M400, M500
– Video / Camera: Compatible With Cam210ip, Cam220ip (Up To 10 Ip Network Cameras)
– Weather: Grib View – Free Grib Viewer And Theyr Ltd Subscription | Siriusxm – N. America Only
– Audio: Nmea2000 / Bluetooth Speaker Controls / Optional Siriusxm Audio
– Digital Switching: Yes – Empirbus & C-Zone Compatible
– Remote Control: Yes Optional Rmk-10 (A8043)
Networking:
– Ethernet: 1 X 10/100 Mbit/S Network (Raynet)
– Nmea2000: Nmea2000 Via Devicenet Port. Seatalkng Compatible Using An Optional Adapter
– Seatalkng: Requires Devicenet Female (F) Adaptor Cable (A06079 120mm Adaptor Included In Box)
– Usb: 1 X Usb Microab
– Wi-Fi: Wifi – 802.11 A/B/G/N
– Bluetooth Bluetooth: V4.0
Navigation:
– Cartography: Lighthouse Charts, Navionics, And C-Map Compatible
– Waypoint/Routes/Tracks (Wpts/Rts/Trk): 10,000 Wpts / 200 Wpt Groups / 150 Rts – 250 Wpt Max / 16 Tracks – 10,000 Max Trk Pts
Memory:
– Internal Memory: 16 Gb Solid State
– External Memory: 1x Microsd Card Slot
– Languages: 24
– Conformances: Nmea 2000 Certification | Europe: 1999/5/Ec | Australia And New Zealand: C-Tick, Compliance Level 2 | Fcc 47cfr Part 15 | Industry Canada Rss210
