Description

Features:

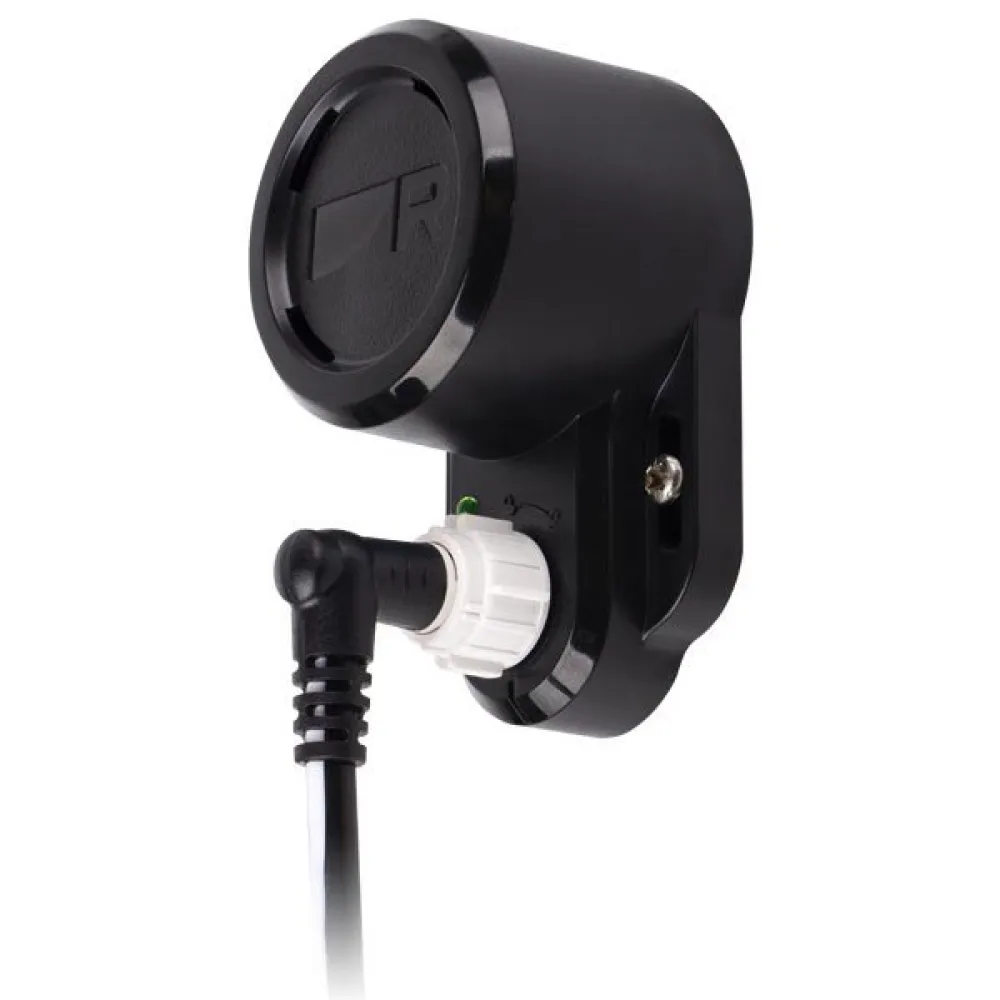

– New – SeaTalk NG Auzilliary Alarm Buzzer | Raymarine – A Brand by FLIR
– Raymarine´s SeaTalkng Auxiliary Alarm Buzzer is a network accessory that repeats alarm and alert tones from compatible network-connected devices, ensuring audible alarms are heard above and below deck.
Key Features & Benefits
– Powerful 100 dBm alarm buzzer
– Repeats alarms and notifications from SeaTalkng and NMEA2000 compatible instruments, AIS receivers, autopilots, and engine systems.
– Compact, waterproof module repeats network alarms to ensure they are heard over the noise of engines, wind, weather, entertainment and more.
– Simple SeaTalkng network interfacing for power and connectivity. No setup required.
– Waterproof to IPx6 and IPx7 standards and can be used above or below decks.
– Multiple alarms modules can be fitted to expand the coverage on large vessels as needed.
Specifications:
– Nominal Supply Voltage: 12 Vdc(Supplied by SeaTalkng®)
– Operating Voltage Range: 9Vdc to 16Vdc (protected upto 32Vdc)
– Power Consumption: 25mA At nominal supply voltage
– Sound Pressure Level(SPL) of Audible Alarm: >85dB(A)at a distance of 1 meter
– Environmental: Operating Temperature: -20ºC to +55ºC (-4ºF to 131ºF)
– Storage Temperature: -30ºC to +70ºC (-22ºF to 158ºF)
– Relative Humidity: max93%
– Waterproof to IPx6 and IPx7
– Supported Connection Protocols: SeaTalkng® /NMEA2000 (via DeviceNet adaptor)
– LEN (refer to SeaTalkng® Reference manual for more information): 1
