Description

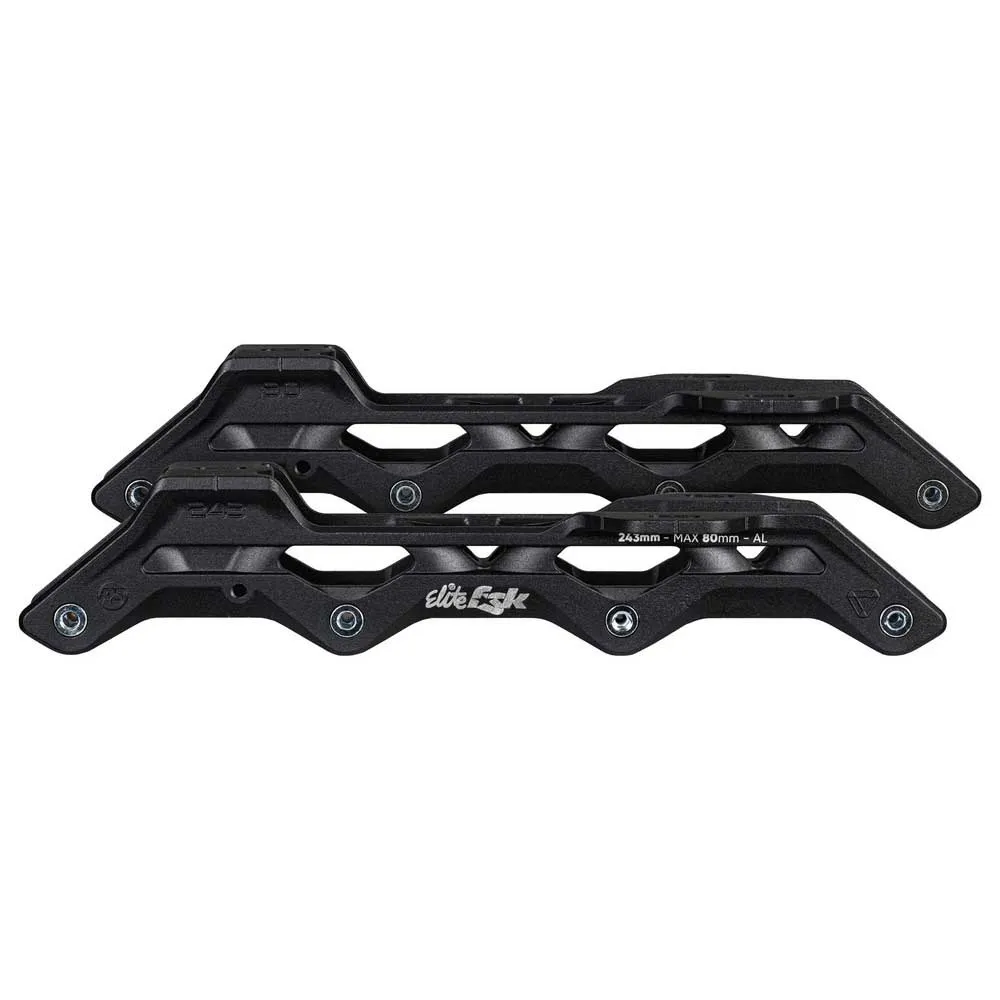

Check out the new Powerslide Elite FSK Cast Aluminum Frame 243 mm / 4×80 mm – designed for the city and styled for the street. Made from cast aluminum, this frame gives you the solid, secure ride you want when urban terrain gets unpredictable. It´s based on the proven Elite cast platform you already know, but the FSK version takes it up a notch: sharper lines, a more angular, urban silhouette, and a look that feels right at home in the urban jungle between concrete edges and night rides.
Trinity 3-point mounting system – on point performance:
– Thanks to the patented Trinity 3-point mounting system, you get a direct, stable connection that ensures precise control and responsive handling. And with the classic 243 mm 4×80 configuration, it hits the sweet spot for FSK skating—agile enough for quick direction changes, smooth on uneven terrain, and balanced for all-around city flow.
All necessary hardware included to skate right away:
– To ensure everything fits securely and precisely, the frame comes with 8 mm hex single axles – and aluminum floating spacers and a tool are also included, so you can start assembling, tuning, and riding right away.
Features:
– Casted PU construction
– Specifically designed for the USD Shadow for a perfect and secure fit
– High shock absorption
Specifications:
– Weight: 210 g
– Boot Mounting: Trinity 3-point mounting
– Sizes: 243mm
– Frame Material: AL ADC10
– Frame Mounting Standard: Trinity 3-point mounting
– Max. Wheel Size: 80mm
– Frame Wheel Base (MM): 243mm
– Frame Setup: 4x80mm
– Standing Height Front / Rear in MM: 72,0mm / 83,0mm
– Frame Axles: Single axle, steel, 8mm, hex 4mm, L=36mm
– Frame Spacer: Built in and CNC machined
– Adjustable Side to Side: Yes
– Adjustable Front to Back: Yes
– Frame Construction: 3D wrap
– Frame Manufacturing Process: 3D cast
– Included Accessories: Steel axles, AL spacers, mounting screws 4x14mm / 2x12mm, tool – hex 4mm
– Brake info: Compatibility Habs brake s m
– Ice blade compatibility: Sabres 4 ice blade, Sabres 4 ice blade black, Sabres 4 ice blade pink
Technology:
Single Axle System:
– One-piece axles for fast wheel exchange. Single axles are very common in high-end skates. They enable the athlete to maintain and exchange wheels effortlessly with just one tool in a very short time.
Trinity:
– Best mounting system on the market for inline skates with 3 mounting points. Trinity is our patented 3-point mounting system, it’s the cutting edge of modern inline skate technology. Trinity features dual front mounting points to create a deep grooved channel for the wheels allowing them to sit as close to the foot as possible, dramatically lowering the center of gravity. This triangulated mount creates a solid platform and increases energy transfer efficiency.
Trinity works perfectly for 3-wheel setups but also provides outstanding advantages to 4-wheel skates:
– Better power transfer: thanks to the power triangle formed by the 3 mounting points.
– Stronger: because the forces are spread over 3 mounting points.
– More control: due to the strong 3-point connection between the boot and the frame and the wide distance between the 2 front mounting points.
– Easier skating: the power triangle also helps with your weight transfer and balance.
– Lower center of gravity: this means more control, stability and safer skating.
– X-Slot mounting to customize the frame position under your boots
– Fatigue Control: Trinity not only boosts your performance but also absorbs 30% more vibration and eases the roll over cracks and rough surfaces making every moment on your wheels as effortless and enjoyable as possible.
X-Slot Mount:
– Frame adjustment function side-to-side and front to back. The combination of the ‘along’ mounting block in Powerslide boots and the ‘across’ mounting slot on Powerslide frames is forming an “X”. The X-Slot Mounting System allows skaters to shift the frames under their boots in all directions to find the best individual frame alignment for them. The X-Slot technology can be found in Powerslide skates featuring both a regular two-point mounting system and our Trinity X three-point mounting standard.
3D Casted:
– High quality manufacturing process to make stiff and stable, yet lightweight frames and trucks. 3D casted plates and trucks are perfectly 3D shaped to enhances the stiffness and power transfer and offering similar performance characteristics found in CNC made frames. Thanks to the sturdy construction casted parts score very high in terms of acceleration, control, and speed.
