Description

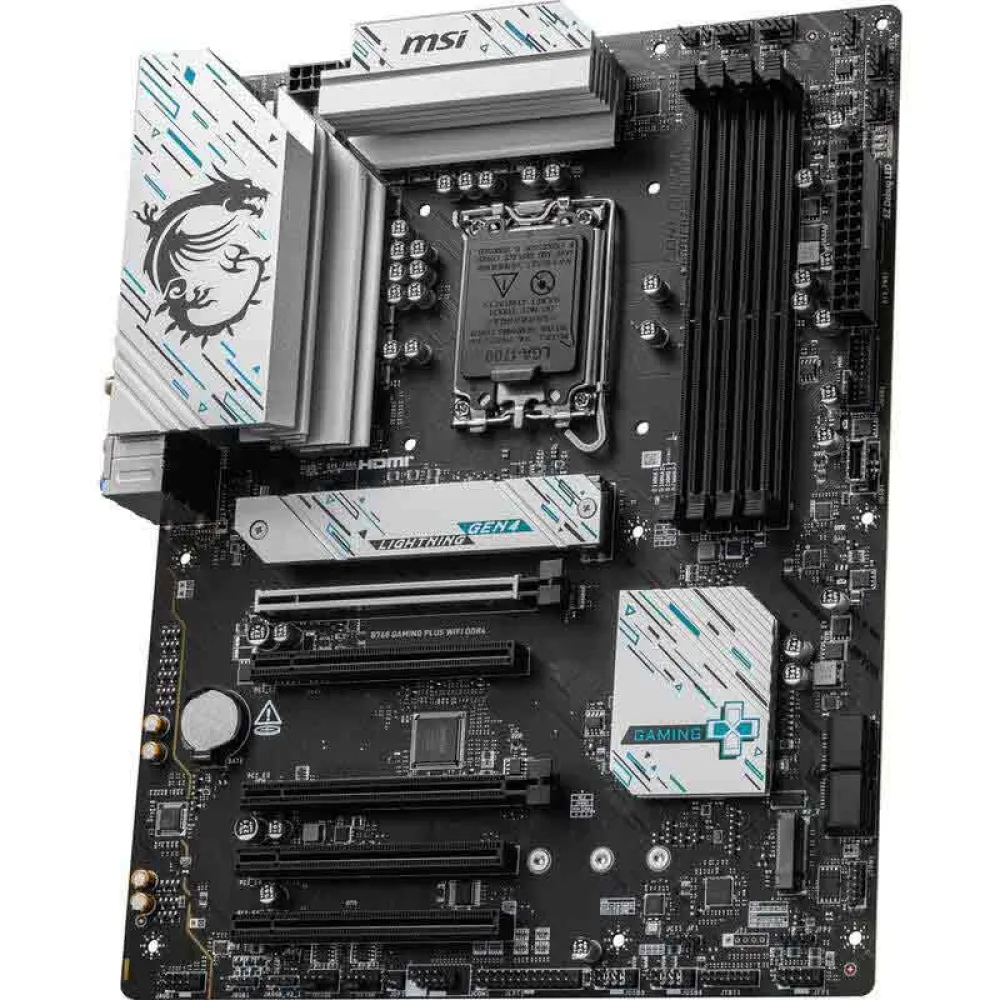

MSI B760 GAMING PLUS WIFI DDR4.
Processor manufacturer:
Intel, Processor socket:
LGA 1700, Compatible processor:
Intel® Celeron®, Intel® Pentium® Gold.
Supported memory types:
DDR4-SDRAM, Maximum internal memory:
128 GB, Memory slots type:
DIMM.
Supported storage drive interfaces:
M.
2, SATA, RAID levels:
0, 1, 5, 10.
Ethernet interface type:
2.
5 Gigabit Ethernet, LAN controller:
Dragon RTL8125BG, Wi-Fi standard:
Wi-Fi 6 (802.
11ax).
Component for:
PC, Form factor:
ATX, Chipset family:
Intel.
Specifications:- Processor manufacturer:
Intel.
– Processor socket:
LGA 1700.
– Compatible processor:
Intel® Celeron®, Intel® Pentium® Gold.
– Supported processor sockets:
LGA 1700.
– Maximum internal memory supported by processor:
128 GB.
– Supported memory types:
DDR4-SDRAM.
– Number of memory slots:
4.
– Memory slots type:
DIMM.
– Maximum internal memory:
128 GB.
– Memory channels:
Dual-channel.
– Supported memory clock speeds:
2133.2400,2666.2933,3200.3333,3400.3466,3600.3733,3800.4000,4200.4266,4400.4600,4800.5000,5066.5200,5333 MHz.
– Non-ECC:
Yes.
– Wi-Fi standard:
Wi-Fi 6 (802.
11ax).
– Ethernet:
Yes.
– Ethernet interface type:
2.
5 Gigabit Ethernet.
– LAN controller:
Dragon RTL8125BG.
– Wifi:
Yes.
– Wi-Fi standards:
802.
11a, 802.
11b, 802.
11g, Wi-Fi 4 (802.
11n), Wi-Fi 5 (802.
11ac), Wi-Fi 6 (802.
11ax).
– Bluetooth:
Yes.
– Bluetooth version:
5.
3.
– USB 2.
0, connectors:
4.
– USB 3.
2 Gen 1 (3.
1 Gen 1) connectors:
3.
– Number of SATA III connectors:
4.
– S/PDIF out connector:
Yes.
– Connector for RGB LED strips:
Yes.
– TPM connector:
Yes.
– Total number of SATA connectors:
4.
– USB 2.
0:
4.
– Number of USB 3.
2 Gen 2 (3.
1 Gen 2) type-A ports:
2.
– Number ofType C USB 3.
2 Gen 2 (3.
1 Gen 2):
1.
– Ethernet LAN ports (RJ-45):
1.
– S/PDIF output port:
Yes.
– HDMI ports:
1.
– HDMI version:
2.
1.
– DisplayPort:
1.
– DisplayPort version:
1.
4.
– RAID support:
Yes.
– Number of storage drives supported:
6.
– Supported storage drive interfaces:
M.
2, SATA.
– RAID levels:
0, 1, 5, 10.
– Number of HDDs supported:
4.
– PCI Express x1 slots:
3.
– PCI Express x16 slots:
2.
– PCI Express x16 slots (Gen 4.
x):
2.
– Number of M.
2 slots (M):
2.
– PCI Express x1 (Gen 3.
x) slots:
3.
– BIOS type:
UEFI AMI.
– BIOS, memory size:
256 MB/s.
– ACPI version:
6.
4.
– Chipset family:
Intel.
– Chipset:
B760.
– Form factor:
ATX.
– Audio output channels:
7.
1 channels.
– Sound chip:
Realtek ALC897.
– Component for:
PC.
– Supported Windows operating system:
Windows 10 x64, Windows 11 x64.
– Width:
243.8 mm.
– Depth:
304.8 mm.
