Description

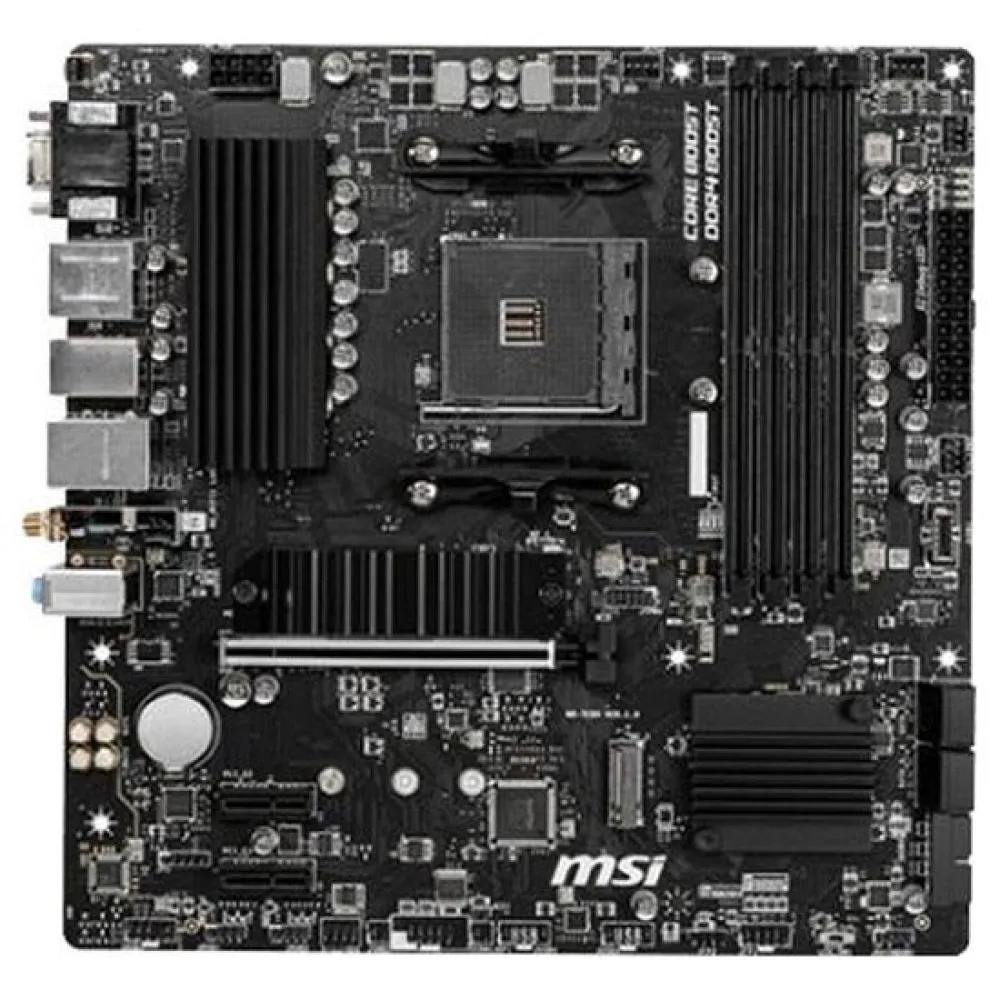

MSI B550M PRO-VDH WIFI.
Processor manufacturer:AMD, Processor socket:Socket AM4, Compatible processor:AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD.
Supported memory types:DDR4-SDRAM, Memory slot type:DIMM, Supported memory clock speeds:1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866, 4000,4133,4266,4400 MHz.
Supported storage drive interfaces:Serial ATA III, Supported storage drive types:HDD & SSD.
Maximum graphics adapter memory:16000 MB, Maximum resolution:4096 x 2160 Pixels.
Ethernet interface type:Gigabit Ethernet, LAN Controller:Realtek 8111HN, Wi-Fi standards:802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac).
Specifications:-Processor manufacturer:AMD.
-Processor socket:Socket AM4.
-Compatible processor:AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9.
-Max.
SMP processor number:1.
-Compatible memory types:DDR4-SDRAM.
-Number of memory slots:4.
-Type of memory slots:DIMM.
-Maximum internal memory:128 GB.
-Memory channels:Dual-channel.
-Supported memory clock speeds:1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz.
-ECC:Yes.
-Non-ECC:Yes.
-Unbuffered memory:Yes.
-Ethernet:Yes.
-Ethernet interface type:Gigabit Ethernet.
-LAN Controller:Realtek 8111HN.
-Wifi:Yes.
-Wi-Fi standards:802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac).
-Bluetooth:Yes.
-Bluetooth version:4.2.
-USB 2.0, connectors:2.
-USB 3.2 Gen 1 (3.1 Gen 1) connectors:1.
-Number of SATA III connectors:4.
-Audio connector on front panel:Yes.
-ATX power connector (24 pins):Yes.
-CPU fan connector:Yes.
-Number of connectors to chassis fan:3.
-12 V electrical connector:Yes.
-Connector for RGB LED strips:Yes.
-Serial port header:1.
-USB 2.0:2.
-USB 3.2 Gen 1 (3.1 Gen 1):4.
-PS/2:1 mouse port.
-Ethernet LAN ports (RJ-45):1.
-WiFi-AP antenna connector:2.
-VGA Ports (D-Sub):1.
-HDMI Ports:1.
-DisplayPort:1.
-Supported storage disk interfaces:Serial ATA III.
-Types of storage units supported:HDD & SSD.
-RAID levels:0,1,10.
-PCI Express x16 slots (Gen 4.x):1.
-Number of M.2 slots (M):2.
-PCI Express x1 (Gen 3.x) slots:2.
-Jumper Clear CMOS:Yes.
-Support for parallel processing:Not supported.
-Maximum resolution:4096 x 2160 Pixels.
-Maximum graphics adapter memory:16000 MB.
-Chipset family:AMD.
-Chipset:AMD B550.
-Form factor:Micro ATX.
-Audio output channels:7.1 channels.
-Sound chip:Realtek ALC892.
-Component for:PC.
-Number of mounting holes:8.
-Width:244 mm.
-Depth:244 mm.
-Cables included:SATA.
-Controllers included:Yes.
