Description

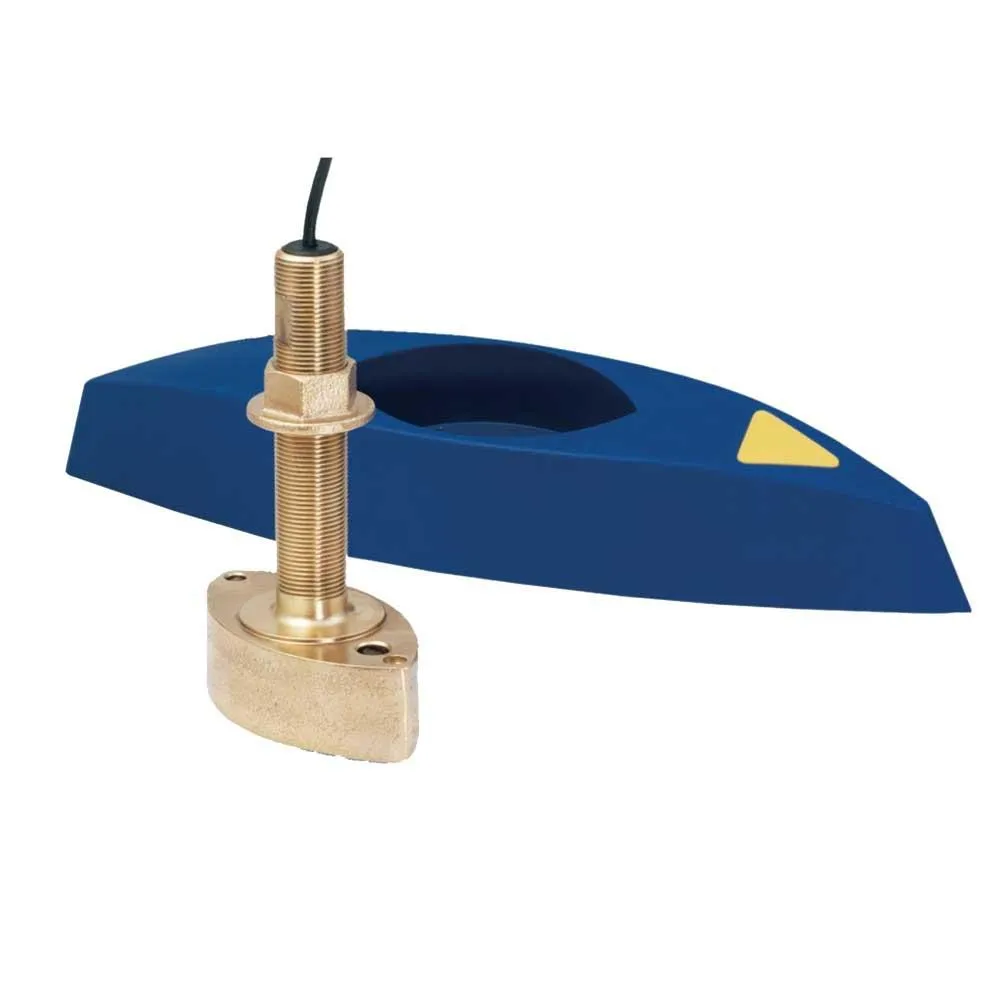

LOWRANCE XSonic Airmar B45 Thru-Hull Transducer
Upgrade your marine electronics with the LOWRANCE XSonic Airmar B45, the benchmark for reliable and affordable thru-hull performance. Engineered for anglers and boaters who demand clarity and durability, this transducer provides a powerful solution for accurately locating fish and mapping bottom structure. It represents the perfect fusion of Airmar´s trusted transducer technology with Lowrance´s seamless XSonic connectivity, delivering outstanding performance for small to medium-sized fishing and cruising boats.
XSONIC AIRMAR B45. Black 9 pin connector 10m (33 ft) cable. The B45 is Airmar’s smallest, bronze, thru-hull stem, offering quality design at an economical price. The classic housing is streamlined to deflect aerated water from the transducer’s face, providing solid echo returns.
Key Benefits
* Superior Performance at Speed: The included high-performance fairing block is a critical component that ensures clean water flow over the transducer´s face. This hydrodynamic design minimizes turbulence and aeration, resulting in clear, steady sonar readings even when your boat is cruising at speed, eliminating the signal loss common with other installation types.
* Durable Bronze Construction: Built to withstand the harsh marine environment, the B45 features a robust bronze housing. This makes it the ideal choice for fiberglass and wood hulls, offering superior durability and longevity compared to plastic alternatives.
* Versatile Dual-Frequency Sonar: Gain a comprehensive underwater view with dual-frequency capability. Use the wide 45° cone of the 50 kHz frequency to scan large areas for fish and bait schools in deeper water. Switch to the narrow 12° beam of the 200 kHz frequency for exceptional target separation and a highly detailed view of bottom composition, structure, and fish holding close to the seabed.
* Plug-and-Play Integration: Featuring the Lowrance XSonic 9-pin connector, this transducer ensures a simple, direct connection to modern Lowrance, Simrad, and B&G fishfinders and chartplotters. This eliminates the need for complex adapter cables and ensures optimal signal integrity for the clearest possible sonar imagery.
Main Features
* Thru-hull Mount Design
* Integrated Depth and Fast-Response Temperature Sensor
* Dual-Frequency Operation
* Bronze Housing Stem
* Includes High-Performance Fairing Block
* Streamlined Housing for Optimal Water Flow
* Lowrance XSonic 9-Pin Connectivity
Technical Specifications
* Model: XSonic Airmar B45
* Power Rating: From 0 to 0.60 kW (600W)
* Mounting Style: Thru-hull with Fairing
* Operating Frequencies: 50 kHz and 200 kHz
* Beamwidth: 45° at 50 kHz / 12° at 200 kHz
* Housing Material: Bronze
* Cable Length: 10m (33 ft)
* Connector Type: Black 9-pin XSonic
* Supported Hull Types: Fiberglass / Wood
* Supported Deadrise Angles: Accommodates all deadrise angles with the fairing block
