Description

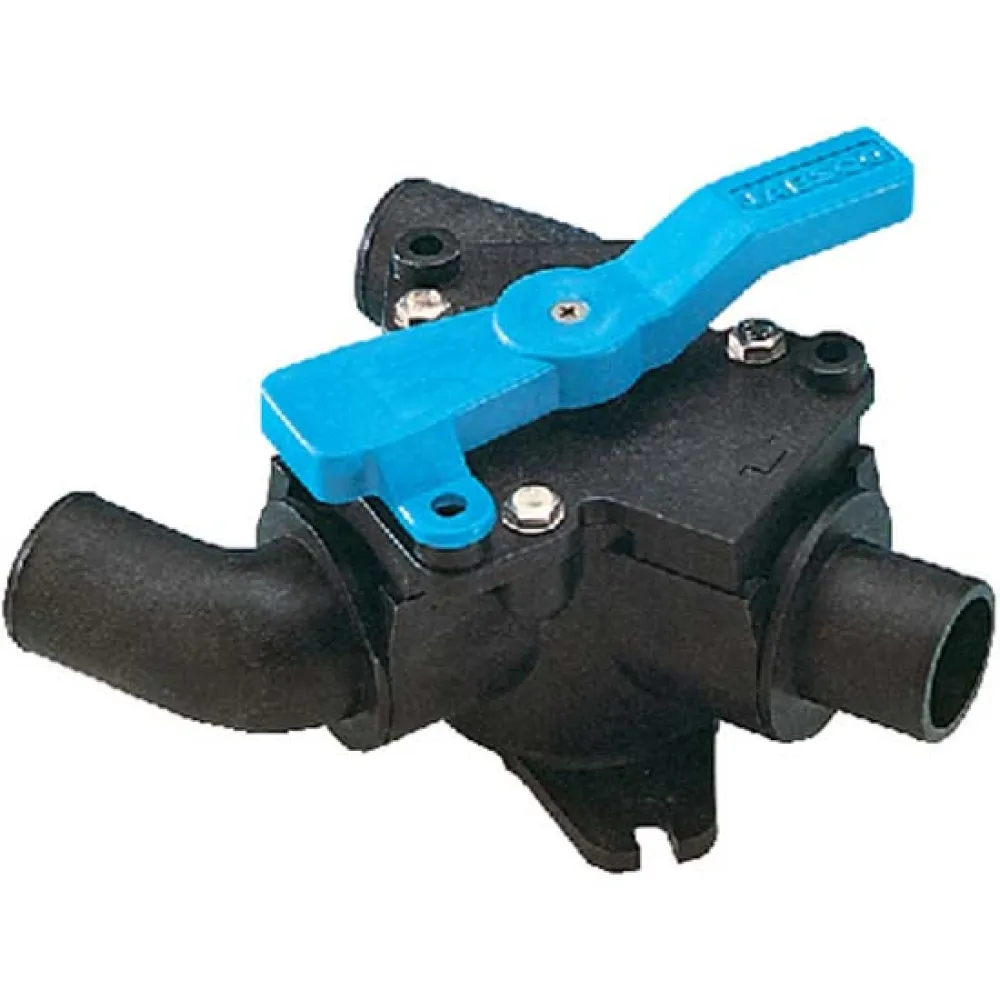

This valve allows alternative routes for toilet discharge or toilet waste pump-out, including toilet discharge overboard (at sea) or to waste holding tank, waste holding tank discharge via onboard pump or shore pump-out.
Optional shaft extension allows valve to be mounted through a bulkhead up to 1-3/4´ thick with only the selector handle exposed. Ports can be rotated away in parallel, at 90-degrees, or in opposite directions, or either up or down without disassembly.
Features:
– Rotatable ports
– Chemical and corrosion-resistant polymer and stainless steel construction
– Lockable manual lever action can be padlocked or sealed in either position (lock not included)
– Valve is supplied with both 1-1/2´ (38mm) fitted ports and an extra 1´ (25mm) straight inlet port
– Indicator arrows molded into body to show flow direction
– Self-cleaning design
– Easy access to valve by removal of just three hex head machine screws
Specifications:
– Connections – 1-1/2´ bore hose (38mm)
– Length – 7-1/4´ (180mm)
– Height – 4-15/16´ (120mm)
