Description

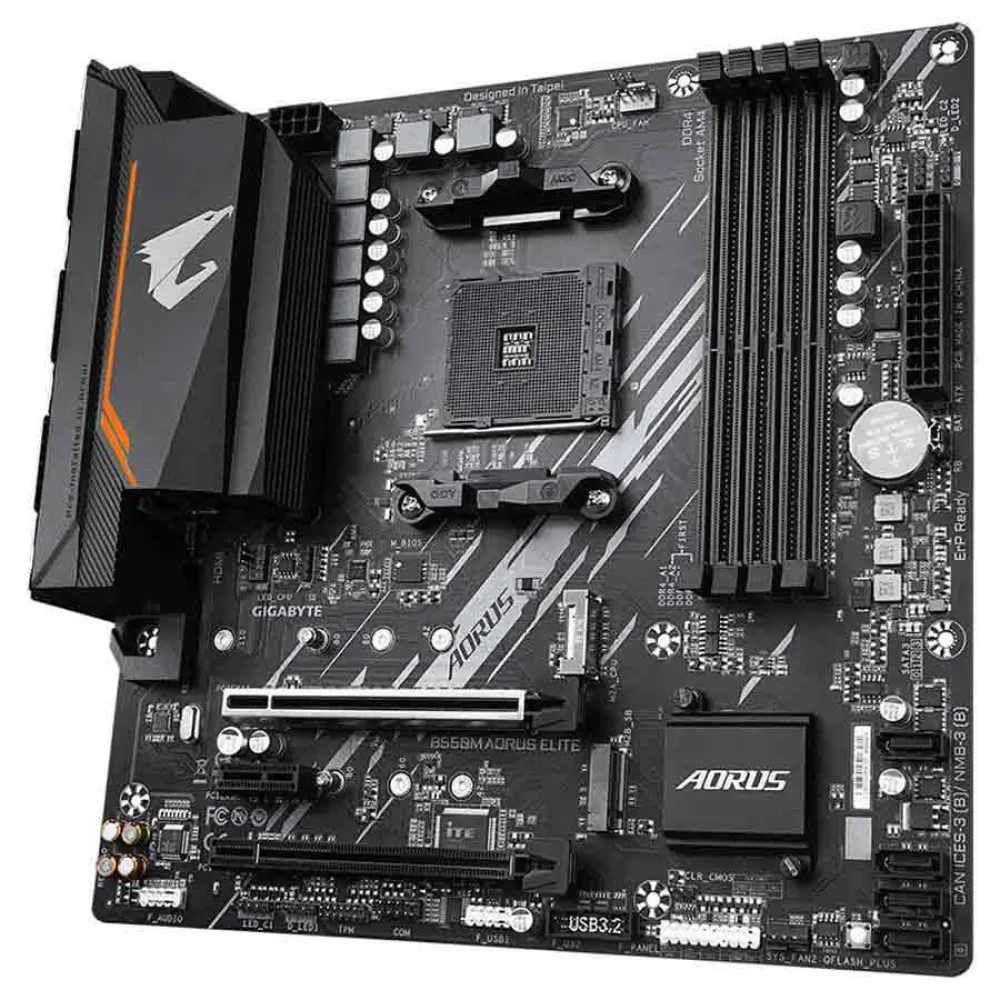

Gigabyte B550M AORUS ELITE.
Processor manufacturer:AMD, Processor socket:Socket AM4, Compatible processor:AMD Ryzen.
Supported memory types:DDR4-SDRAM, Memory slot type:DIMM, Supported memory clock speeds:2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz.
Disk interfaces Supported storage devices:Serial ATA III, Supported storage drive types:HDD & SSD.
Maximum graphics adapter memory:16000 MB, Maximum resolution:4096 x 2160 Pixels.
Ethernet interface type:Gigabit Ethernet.
Specifications:-Processor manufacturer:AMD.
-Processor socket:Socket AM4.
-Compatible processor:AMD Ryzen.
-Max.
number of SMP processor:1.
-Compatible memory types:DDR4-SDRAM.
-Number of memory slots:4.
-Type of memory slots:DIMM.
-Maximum internal memory:128 GB.
-Memory channels:Dual-channel.
-Supported memory clock speeds:2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz.
-ECC:Yes.
-Non-ECC:Yes.
-Unbuffered memory:Yes.
-Ethernet:Yes.
-Ethernet interface type:Gigabit Ethernet.
-Wifi:No.
-USB 2.0, connectors:1.
-USB 3.2 Gen 1 (3.1 Gen 1) connectors:1.
-Number of SATA III connectors:4.
-Audio connector on front panel:Yes.
-ATX power connector (24 pins):Yes.
-CPU fan connector:Yes.
-Number of connectors to chassis fan:2.
-Front panel connector:Yes.
-12 V electrical connector:Yes.
-Connector for RGB LED strips:Yes.
-TPM connector:Yes.
-Serial port header:1.
-USB 2.0:4.
-USB 3.2 Gen 1 (3.1 Gen 1):4.
-PS/2:1 mouse port.
-Ethernet LAN ports (RJ-45):1.
-HDMI Ports:1.
-Number of DVI-D ports:1.
-HDMI version:2.1.
-Supported storage disk interfaces:Serial ATA III.
-Types of storage units supported:HDD & SSD.
-RAID levels:0,1,10.
-PCI Express x16 slots:2.
-Number of M.2 slots (M):2.
-PCI Express x1 (Gen 3.x) slots:1.
-BIOS types:UEFI AMI.
-BIOS, memory size:256 MB/s.
-ACPI version:5.0.
-Jumper Clear CMOS:Yes.
-System Management BIOS (SMBIOS) version:2.7.
-Desktop Management Interface (DMI) Version:2.7.
-Maximum resolution:4096 x 2160 Pixels.
-HDCP:Yes.
-Maximum graphics adapter memory:16000 MB.
-Chipset family:AMD.
-Chipset:AMD B550.
-Form factor:Micro ATX.
-Component for:PC.
-Supported Windows operating system:Windows 10 x64.
-PC health monitoring:Fan, Temperature, Voltage.
-Width:244 mm.
-Depth:244 mm.
-Cables included:SATA.
-Software included:Norton Internet Security (OEM).
Realtek 8118 Gaming LAN Bandwidth Control Utility.
