Description

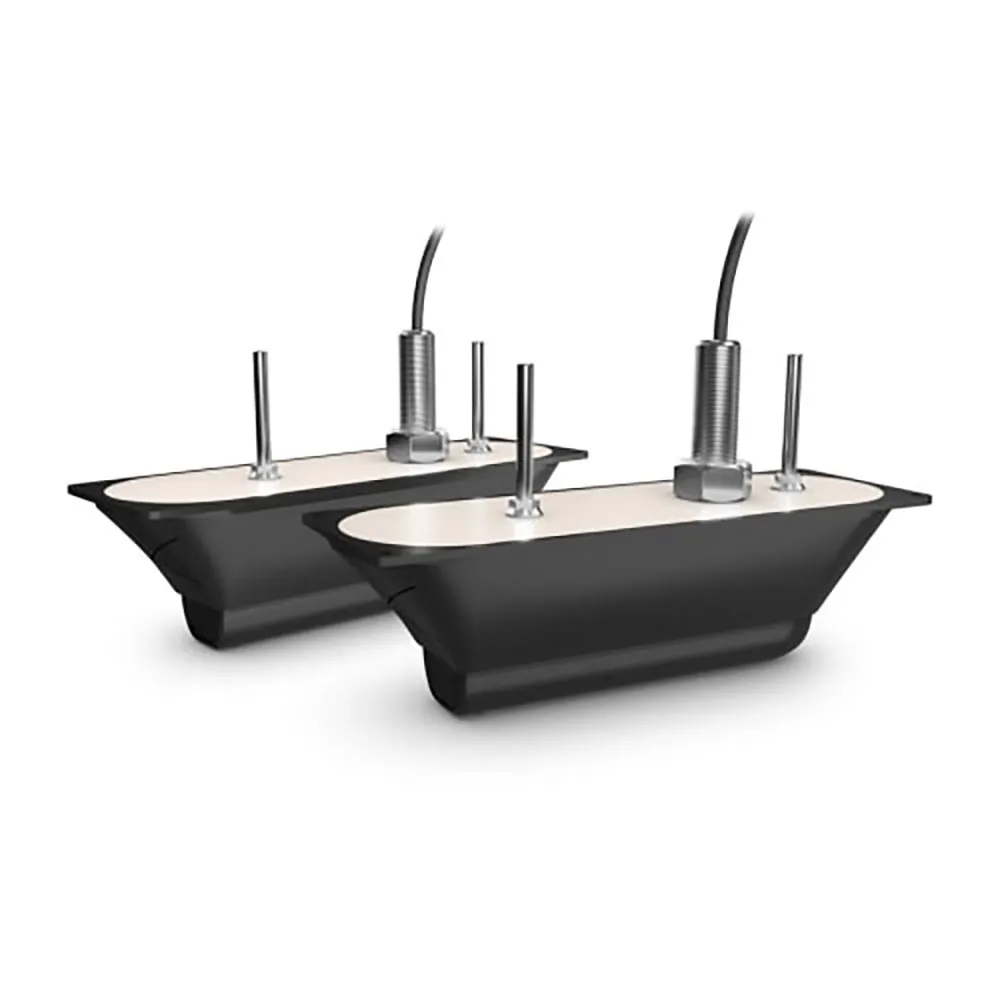

Garmin GT56UHD-THP Transducer: Unrivaled Underwater Clarity and Performance
Experience the pinnacle of fishfinding technology with the Garmin GT56UHD-THP transducer. Designed for serious anglers who demand the sharpest, most detailed views beneath the surface, this all-in-one thru-hull solution provides an unprecedented understanding of bottom structure, bait, and target fish. By integrating the best of Garmin´s sonar technologies into a durable, low-profile design, the GT56UHD-THP gives you a decisive advantage in any fishing environment, from shallow flats to deeper coastal waters. See fish and structure in photolike detail and spend less time searching and more time catching.
Elevate your fishing game by gaining access to crystal-clear imagery that leaves nothing to the imagination. This advanced transducer system allows you to distinguish fish from submerged objects with remarkable precision, identify different species types based on their returns, and find the most productive fishing spots with confidence. The combination of scanning and traditional sonar provides a comprehensive view both below and to the sides of your vessel, ensuring you never miss an opportunity. The high-contrast, vivid color palettes make it easier than ever to interpret the sonar returns, helping you spot targets quickly and efficiently, even in challenging light conditions. Its professional thru-hull installation offers superior performance at speed and in rough seas compared to other mounting types.
Main Features:
* Ultra High-Definition ClearVü scanning sonar for brilliant, clear images of structure and fish below your boat.
* Ultra High-Definition SideVü scanning sonar for astonishingly clear views of what lies to the left and right of your vessel.
* High-wide CHIRP traditional sonar for exceptionally clear target separation and crisp, well-defined fish arches.
* Multiple scanning sonar frequencies to optimize performance for any depth and condition.
* Vivid, high-contrast scanning sonar color palettes to help distinguish targets and structure with maximum clarity.
* A premium thru-hull paired design for robust, professional installation and optimal performance.
Technical Specifications:
* Mounting Style: Thru-hull
* Power Output: Traditional 350 W; ClearVü/SideVü 500 W (Operating within a 0 to 0.60 kW power range)
* CHIRP High-Wide: 150-240 kHz
* UHD ClearVü: 800 kHz (760-880 kHz)
* UHD SideVü: 1.2 MHz (1060-1170 kHz)
* Standard ClearVü/SideVü: 455 kHz (425-485 kHz)
* Traditional Sonar: 800 feet in freshwater
* ClearVü Sonar: 400 feet
* SideVü Sonar: 500 feet at 455 kHz; 125 feet to each side at 1.2 MHz
* Traditional CHIRP: 16°-24° adjustable
* UHD ClearVü: 0.52° x 52° at 800 kHz
* UHD SideVü: 0.44° x 52° at 1.2 MHz
* ClearVü/SideVü: 1.1° x 52° at 455 kHz
* Number of Pins: 12-pin
* Supported Deadrise: 0° to 25°
