Description

If you want to use your boat efficiently, it includes GT15M-IH, a Garmin transducer located inside the fiber hull so that you can move at high speeds, while maintaining accurate depth readings.
The configuration of this technological device is made up of 8 pins with 4 plastic tanks and a traditional CHIRP probe with medium frequency band (85-165 kHz). Its power is 600 W and it can be used in conjunction with a GT30-TM transducer and an adapter cable that helps scan capabilities.
Inside its box you will find the components you need for assembly and the necessary documentation to put the equipment into operation.
GT15M-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It can be used with a hull deadrise angle between 0 and 25 degrees and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.
The 8-pin transducer with 4 plastic tanks features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.
For installation, follow the included instructions carefully to avoid damaging your boat.
General:
– Frequency: CHIRP Mid-band (85-165 kHz)
– Power: 600 W
– Beamwidth: 24-13
– Maximum depth: 1,900 ft. freshwater
– Depth/Speed/Temperature: Depth
– Number of pins: 8-pin
– Cable length: 20 ft.
– Supported deadrise/Transom angles: 0°- 25° deadrise
In the box:

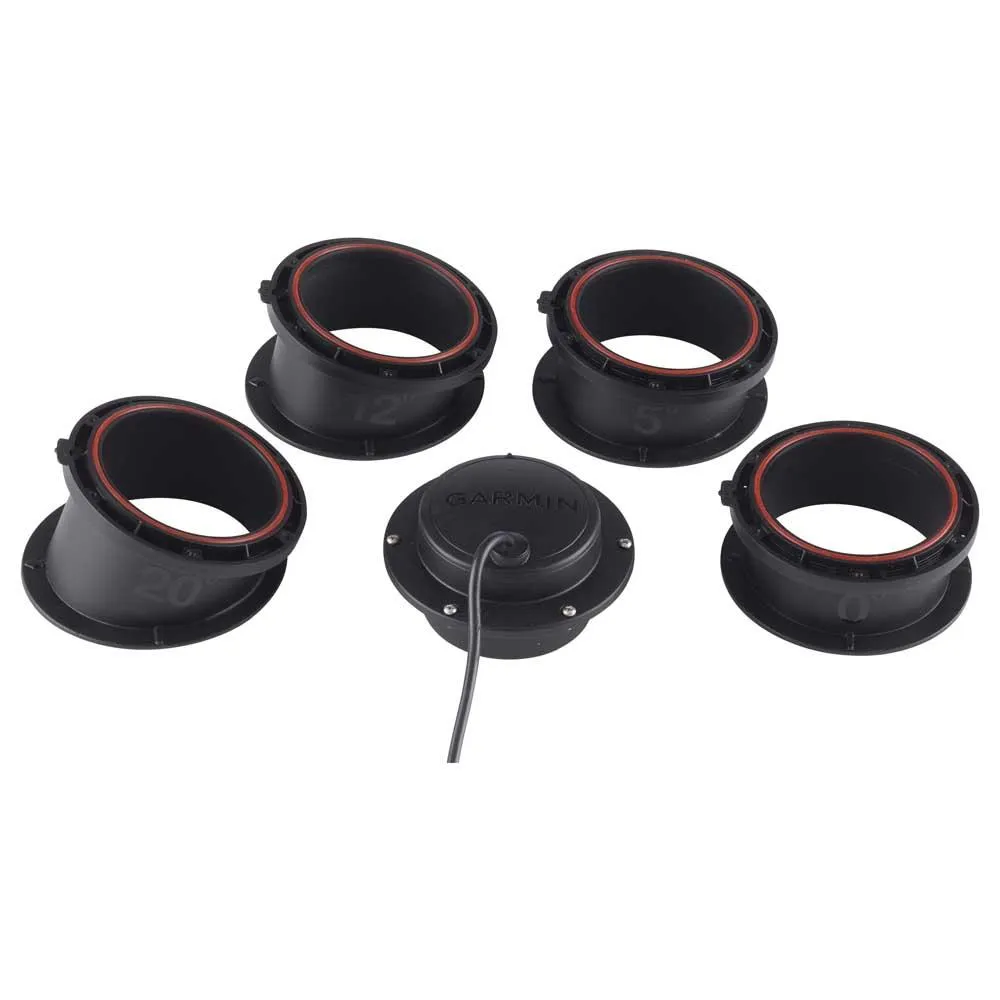

– GT15M-IH transducer
– 4 plastic tanks
– Mounting hardware
– Documentation
