Description

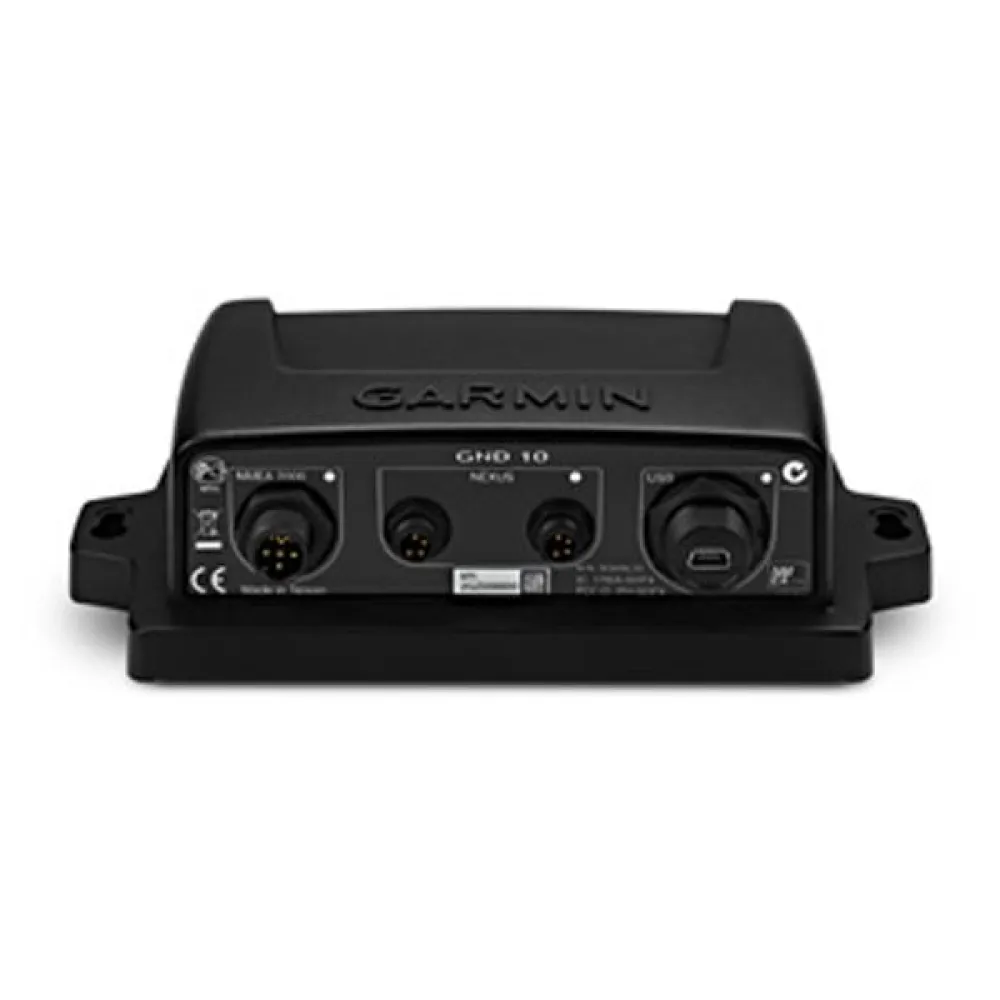

The GND 10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family.
It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWind, gWind Wireless and gWind Race transducers.
Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.
GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks.
It also enables GND 10 software updates over NMEA 2000. Existing NexusRace PC application can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol.
Features:
– Converts data between the Nexus network and NMEA 2000
– Provides compatibility between Nexus and Garmin products
– Simple plug-and-play installation between Nexus, NMEA 2000 and USB
– No user setup or system configuration required
– Allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks
Specifications:
– Weight: 196g
– Waterproof: Yes (IPX7)
– Temp Range: From -15°C to 70°C
– Voltage Range: 9-16V
– Power Usage: 0.85W
– Compass Safe Distance: 0.1m
– Accuracy Angle: N/A
– Speed: N/A
– NMEA 2000 Load Equivalency Number (LEN): 4
– Wireless Connectivity: No
What in the Box:
– GND 10
– USB Mini-B cable
– NMEA 2000 drop cable (2 m)
– NMEA 2000 T-connector
– Nexus network cable (5 m; straight connector)( sold in separately)
– Mounting hardware
– Documentation
Compatible Devices:
GMI 10 Marine Instrument
GMI 20 Marine Instrument
GNX 20 Marine Instrument
GNX 21 Marine Instrument
GPSMAP 1020
GPSMAP 1020xs
GPSMAP 4008
GPSMAP 4010
GPSMAP 4012
GPSMAP 451
GPSMAP 451s
GPSMAP 5008
GPSMAP 5012
GPSMAP 5015
GPSMAP 521s
GPSMAP 527xs
GPSMAP 551s
GPSMAP 556
GPSMAP 556s
GPSMAP 557xs
GPSMAP 6008
GPSMAP 6012
GPSMAP 7012
GPSMAP 7015
GPSMAP 720
GPSMAP 721xs
GPSMAP 750
GPSMAP 750s
GPSMAP 751xs
GPSMAP 8008 MFD
GPSMAP 8012 MFD
GPSMAP 8015 MFD
GPSMAP 820
GPSMAP 820xs
GPSMAP 8500 Black Box
GPSMAP 8530 Black Box
gWind
gWind Race
gWind Wireless
