Description

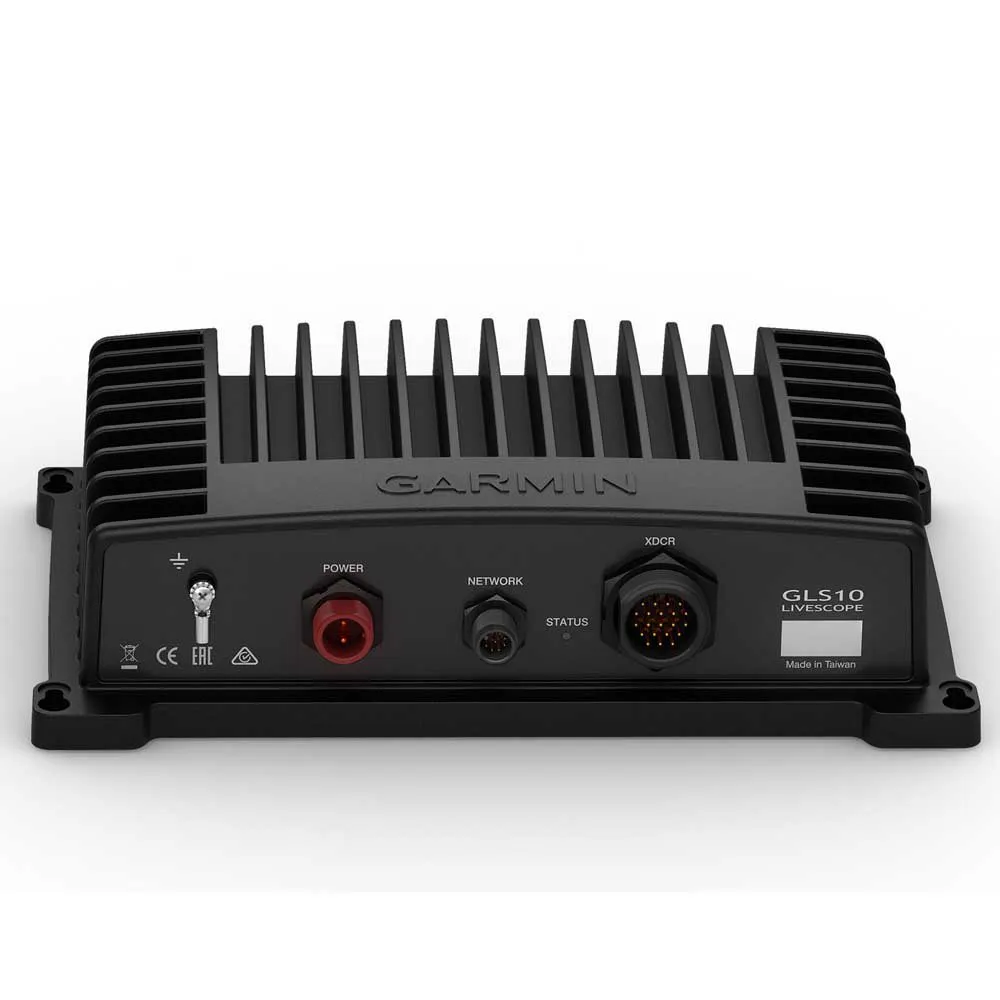

The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.
Panoptix LiveScope Down:
– LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat — up to 200’ — even while your boat is stationary.
Panoptix LiveScope Forward:
– LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.
Specifications:
General:
– Physical Dimensions:9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm)
– Weight: 4.3 lbs (2.0 kg)
– Water Rating: Ipx7
– Garmin Marine Network™ Ports: 1 (small connector)
– Temperature Range: Operating: -15 C To 70 C
Sonar Features & Specifications:
– Frequencies Supported: 530 – 1,100 Khz
– Transmit Power: 500 W
– Maximum Depth: Down And Forward: 200’ (61.0 M)
Electrical:
– Power Input: 10-32 V
– Power Usage: 21 W Typical, 58 W Max
– Fuse: 7.5 A
