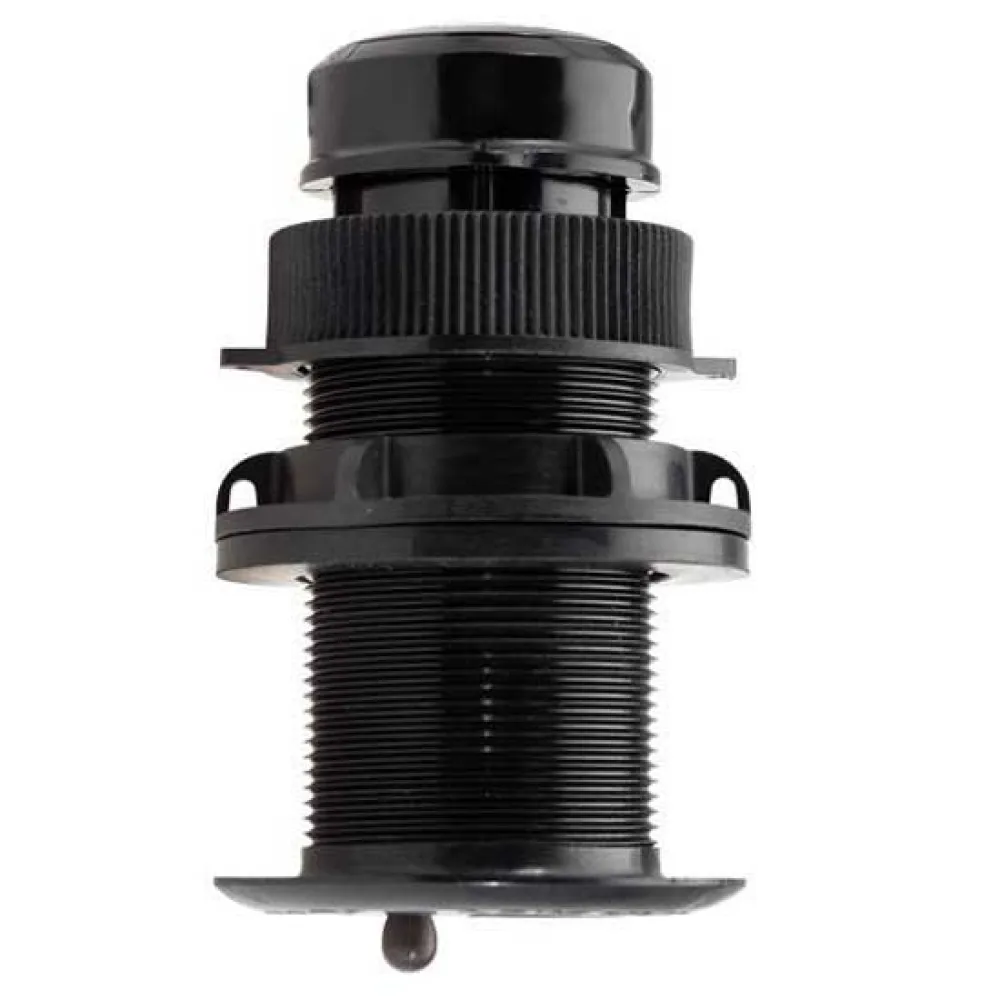

GARMIN Airmar DST810 Smart Transducer | NMEA 2000 Marine Sensor
Elevate your marine instrumentation with the GARMIN Airmar DST810 Smart Transducer, the ultimate all-in-one, thru-hull solution for comprehensive and precise on-water data. Designed for the modern mariner who demands accuracy and integration, this smart sensor redefines situational awareness by delivering a complete picture of your vessel´s performance and the environment beneath it. Move beyond basic readings and unlock a new level of insight for sailing, cruising, and fishing.
This plastic thru-hull NMEA 2000® smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330’ and offers fast 5 Hz water speed signal output for smoother visualisation on compatible chartplotters or other displays. Wireless Bluetooth® connectivity makes it easy to manage calibration of sensor data through the Airmar Cast app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10×44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.
Key Benefits:
* 5-in-1 Data Hub: Consolidate five critical data streams—depth, speed, temperature, pitch/roll, and heel/trim—into a single, compact device, reducing hull clutter and simplifying your electronics network.
* Effortless Calibration: Utilise the convenience of wireless Bluetooth® technology and the Airmar Cast™ app to easily calibrate speed-through-water and other sensor data directly from your smart device, ensuring peak accuracy at all times.
* Superior Performance in All Conditions: The fast 5 Hz update rate provides ultra-smooth speed readouts on your display, while the wide, fan-shaped beam maintains bottom contact even when your sailboat is heeling or your powerboat is on a steep deadrise hull.
* Interference-Free Operation: Engineered with a 235 kHz frequency, the DST810 is specifically designed to operate without causing or receiving interference from other fishfinders or echosounders on your vessel.
* Seamless Network Integration: With certified NMEA 2000® connectivity, the DST810 seamlessly integrates into your existing marine electronics network, feeding vital information directly to your GARMIN chartplotter, instrument displays, and autopilots.
Main Features:
* Accurate depth, speed-through-water, and water temperature sensing
* Integrated attitude sensor provides heel/trim and pitch/roll data
* Fast 5 Hz water speed signal output for smooth display updates
* Wireless Bluetooth® connectivity for easy calibration via the Airmar Cast™ app
* Unique 235 kHz operating frequency to prevent sonar interference
* Wide, fan-shaped 10×44-degree beamwidth for reliable bottom tracking
* Durable plastic thru-hull housing
* Simple plug-and-play NMEA 2000® connectivity
Transducers
Technical Specifications:
* Frequency: 235 kHz
* Power: 100 W
* Beamwidth: 10×44 degrees
* Maximum depth: 330 ft
* Depth/Speed/Temperature: Depth, speed, temperature, heel, pitch and roll
* Number of pins: NMEA 2000
* Supported deadrise/Transom angles: 0 to 22 degrees
