Description

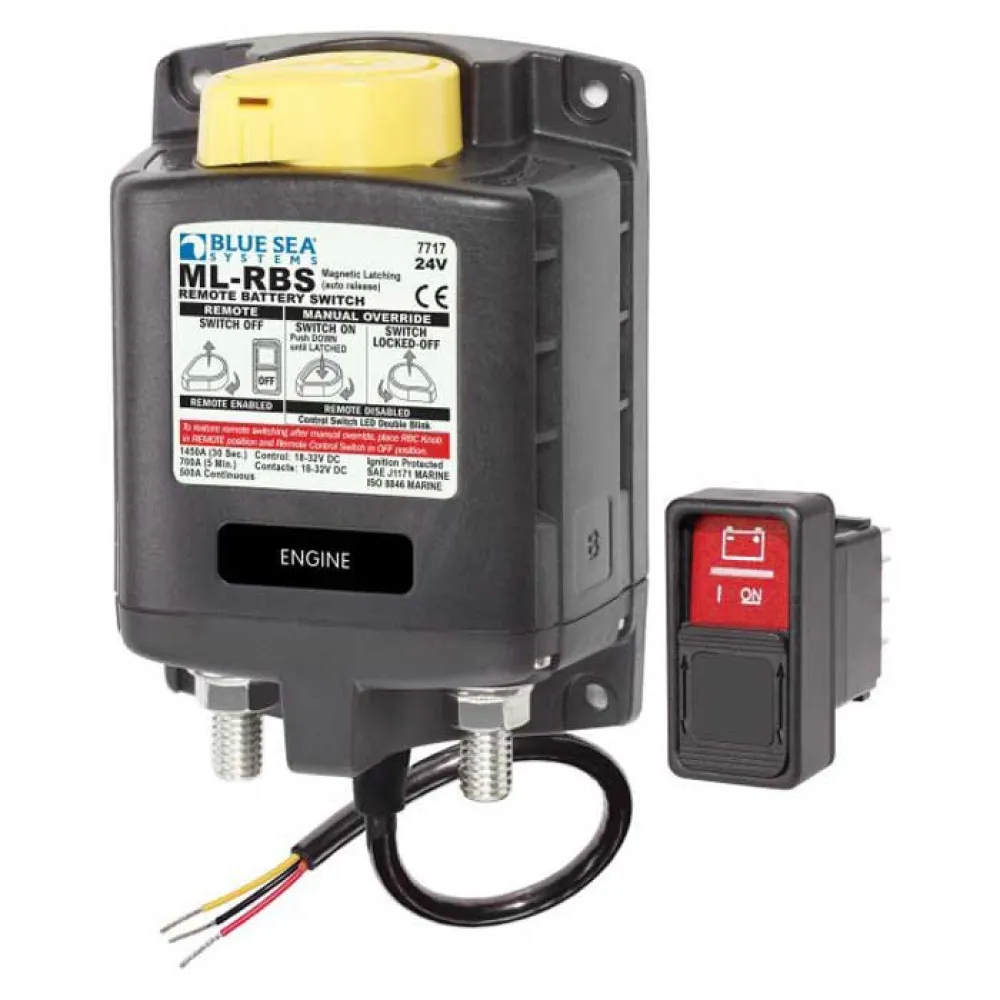

BLUE SEA SYSTEMS ML-RBS Battery Switch 500A 24V
Experience unparalleled control and reliability over your vessel´s or vehicle´s electrical system with the BLUE SEA SYSTEMS ML-RBS 24V 500A Battery Switch. This high-performance remote battery switch is expertly engineered for the most demanding marine and heavy-duty vehicle environments, providing robust power management and exceptional safety. As a leading solution in the Electronics and Electrical connections category, this switch is designed to isolate high-amperage DC circuits, protect your batteries, and ensure system integrity.
The key benefit of the ML-RBS lies in its innovative Magnetic Latching (ML) relay technology. This means the switch draws no current in either the ON or OFF state, significantly reducing power consumption and preserving precious battery life—a critical advantage for extended trips or when docked. It offers the ultimate convenience of remote operation, allowing you to control battery banks from your helm, dashboard, or any other convenient location, eliminating the need to access hard-to-reach battery compartments. For complete peace of mind, a manual override knob is integrated into the design, guaranteeing you can operate the switch even in the event of a power loss to the control circuit.
Built to withstand the harshest conditions, this switch boasts an impressive IP66 rating, certifying it as protected against powerful water jets and dust ingress. It is also ignition protected, making it safe for installation within gasoline engine compartments. The high-amperage capacity ensures it can manage heavy loads, from engine starting to powering high-draw accessories like inverters and windlasses, making it an essential component for any serious electrical system.
The BLUE SEA SYSTEMS ML-RBS 24V 500A Battery Switch is a high-quality electrical accessory designed for use in marine and automotive applications. This battery switch features a sleek black finish and is constructed from durable materials to ensure long-lasting performance in harsh environments.
With a maximum voltage rating of 24V and a current rating of 500A, this battery switch is capable of handling high-power electrical loads with ease. It also features easy-to-use rotary switches for quick and convenient operation.
The ML-RBS 24V 500A Battery Switch is designed for use with 3/8″ terminals and includes detailed installation instructions for easy setup. This switch is ideal for use in boats, RVs, trucks, and other vehicles where reliable electrical connections are essential.
Technical Specifications:
* Switch Type: Remote Battery Switch (RBS) with Manual Override
* Actuator: Magnetic Latch (ML) – draws zero current in steady state
* Continuous Rating: 500A
* Intermittent Rating (5 minutes): 700A
* Cranking Rating (30 seconds): 1450A
* Maximum Voltage: 24V DC
* Ingress Protection: IP66 – Protected against powerful water jets
* Safety Standard: Ignition Protected – Safe for installation in gasoline engine compartments
* Terminal Stud Size: 3/8″ – 16 (M10)
* Remote Control Functions: Supports remote ON, OFF, and state indication via optional LED
