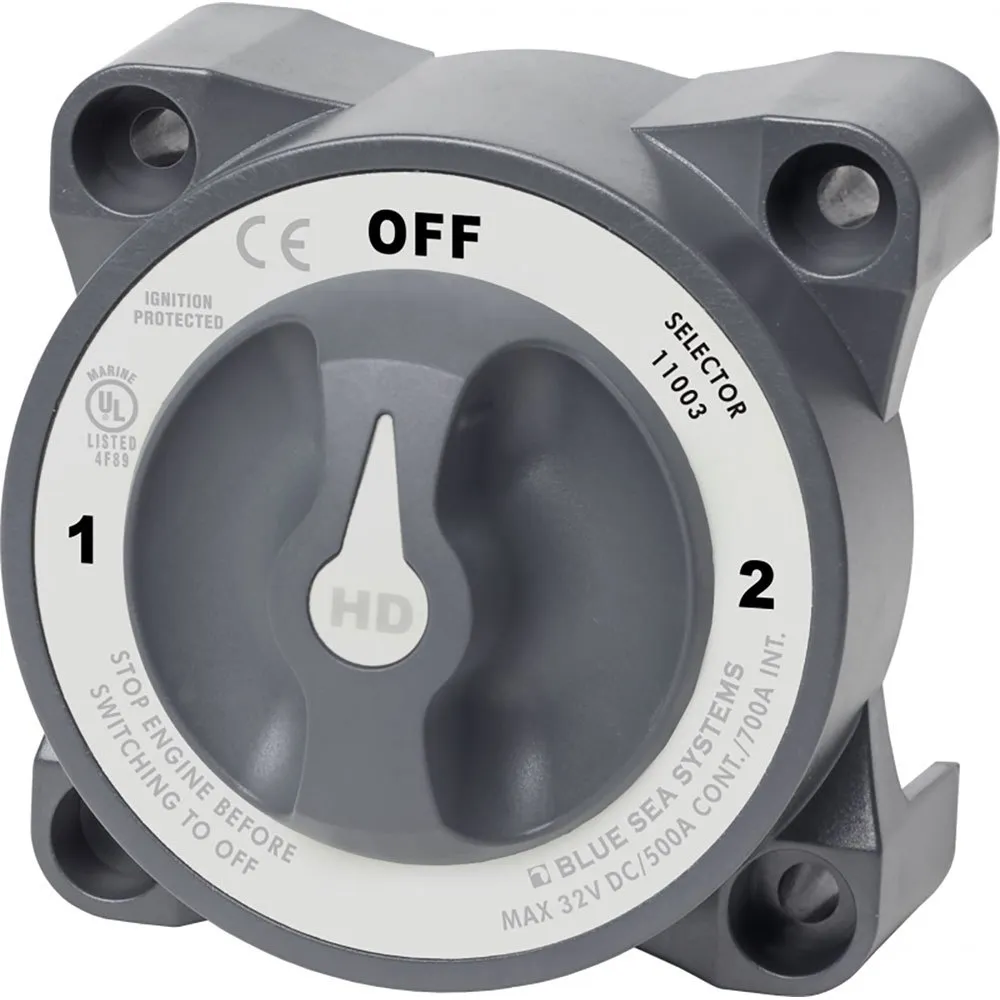

BLUE SEA SYSTEMS HD 0-1-2 Battery Switch
Experience unparalleled control and reliability over your vessel´s electrical system with the BLUE SEA SYSTEMS HD 0-1-2 Battery Switch. Designed for the most demanding marine and heavy-duty vehicle applications, this switch provides a robust and intuitive solution for managing multiple battery banks, ensuring power is available when and where you need it most. Its superior engineering and construction make it the cornerstone of any safe and efficient electrical installation, offering peace of mind on the water or on the road.
Master your vessel´s power with the BLUE SEA SYSTEMS HD 0-1-2 Battery Switch. This heavy-duty selector offers ultimate control, allowing you to effortlessly manage dual battery banks. Switch between Battery 1, Battery 2, or combine them for emergency starts, with a complete OFF position for isolation. Built for demanding environments with rugged, corrosion-resistant polycarbonate and silver-plated copper contacts for superior conductivity. Features an integrated Alternator Field Disconnect (AFD) for crucial protection against damage. Versatile surface or flush mounting ensures a clean integration. Rely on its mission-critical performance and durability for reliable power distribution.
Engineered for extreme durability, the switch’s case design allows for multiple mounting options, providing flexibility during installation. The tactile and ergonomic knob is easy to operate, even with gloves on, and snaps firmly into each position, preventing accidental switching. Its ignition-protected design makes it safe for installation aboard gasoline-powered boats, meeting stringent industry safety standards. The make-before-break contact design allows switching between battery banks without interrupting power, crucial for sensitive electronics. This heavy-duty Switch is the definitive choice for managing high-amperage electrical systems with confidence and precision.
Attribute: Switch
Technical Specifications:
* Switch Type: 4 Position (OFF / Battery 1 / Battery 2 / Battery 1+2)
* Continuous Rating: 350A
* Intermittent Rating (5 min): 600A
* Cranking Rating (30 sec): 1200A
* Maximum Voltage: 32V DC
* Terminal Stud Size: 3/8″ – 16 (M10)
* Terminal Stud Torque: 120 in-lb (13.56 Nm)
* Cable Size to Meet Ratings: 4/0 AWG (95mm²)
* Mounting Holes: Accepts 1/4″ (M6) screw
* Case Material: Reinforced Polycarbonate
* Contact Material: Silver-Plated Copper
* Certifications: Meets ABYC, UL 1500, and SAE J1171 requirements for ignition protection
