Electronics – Electrical connections.

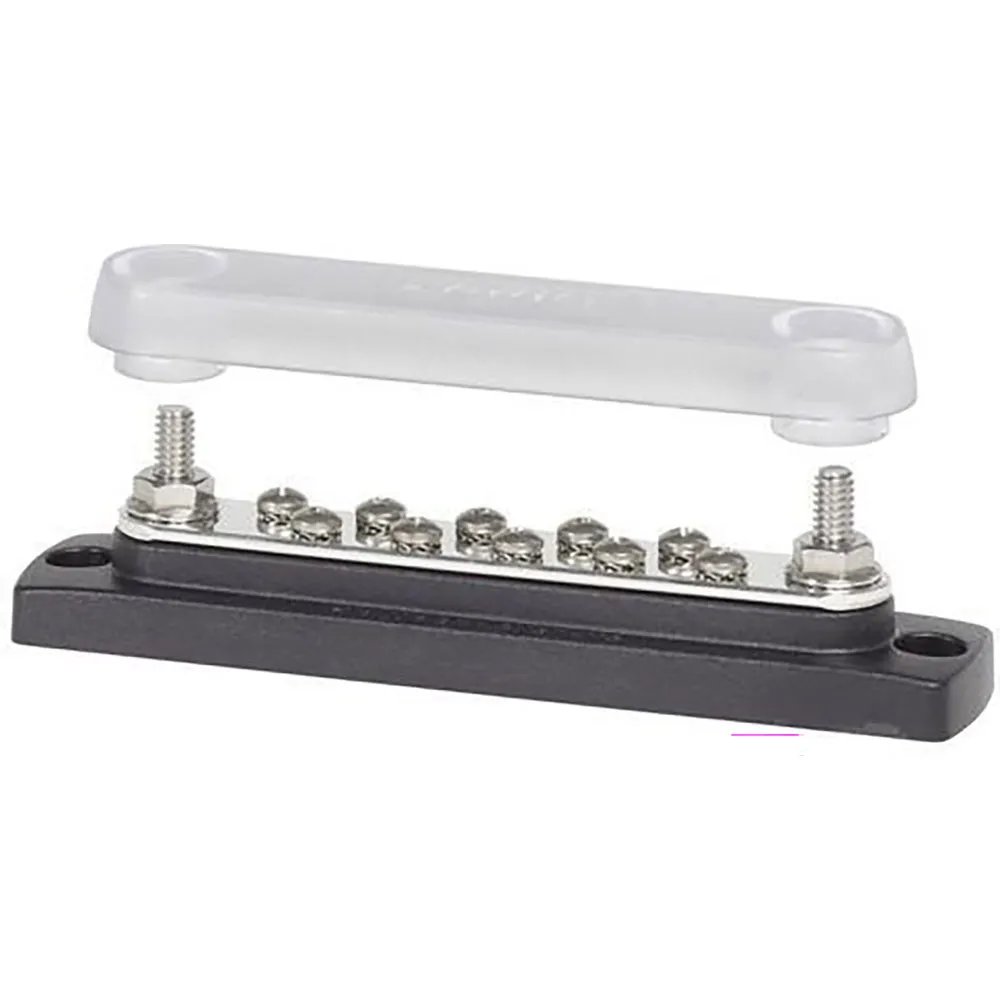

BLUE SEA SYSTEMS Bus Bar Plus Common With Cover Isolator.
Bus bar plus common with cover.
Achieve a new standard of organization, safety, and reliability in your electrical system with the BLUE SEA SYSTEMS Bus Bar Plus Common with Cover. Expertly engineered for demanding marine, automotive, and off-grid applications, this bus bar is the definitive solution for consolidating multiple wires into a single, secure distribution point. Whether you are managing complex negative return lines or distributing positive power, this component streamlines your wiring, eliminates hazardous wire clusters, and provides a professional, clean installation that is easy to troubleshoot and maintain.
Designed for performance and longevity, this bus bar ensures your electrical connections are robust and efficient. It is the ideal choice for boat owners, RV enthusiasts, and custom vehicle builders who refuse to compromise on the quality and safety of their power distribution network.
Key Benefits:
* Simplified Power Distribution: Neatly consolidates numerous small wires from various circuits, connecting them to a single large cable. This drastically reduces clutter and simplifies the entire wiring layout for both positive and negative distribution systems.
* Enhanced Electrical Safety: The included snap-on cover is a critical safety feature, acting as one of the system´s primary Isolators. It effectively insulates the conductive bus bar and terminal connections, protecting against accidental short circuits from dropped tools or loose equipment, and ensuring compliance with industry safety standards.
* Superior Durability and Performance: Built to withstand the harsh conditions of marine and automotive environments. The use of high-quality, corrosion-resistant components ensures maximum conductivity, minimal voltage drop, and a long, reliable service life even when exposed to moisture, salt, and vibration.
* Professional and Organized Installation: Creates a clean, professional-looking electrical panel. The organized layout makes it significantly easier to inspect, test, and troubleshoot circuits, saving time and preventing future electrical issues.
Main Features:
* Features a raised bus design that allows for two layers of cable lugs and provides ample clearance for wrench access, simplifying the process of securing connections.
* Includes a robust, clear polycarbonate cover that conveniently snaps into place, meeting ABYC/USCG insulation requirements for electrical protection.
* Engineered with insert-molded, corrosion-resistant stainless steel studs that provide exceptional strength and consistent torque for secure, long-lasting connections.
* The base is constructed from a high-temperature, reinforced thermoplastic material, ensuring stability and safety under heavy electrical loads.
* Recessed mounting holes eliminate the risk of accidental shorts to aluminum or steel mounting surfaces.
* Combines multiple screw terminals for smaller gauge wires and a large stud terminal for the main high-amperage connection.
Technical Specifications:
* Voltage Rating: 300V AC Maximum / 48V DC Maximum
* Continuous Amperage Rating: 130A AC / 150A DC
* Number of Screw Terminals: 10
* Screw Terminal Type: 8-32 Screws
* Number of Stud Terminals: 2
* Stud Terminal Type: 1/4″-20 Studs
* Bus Material: High-conductivity, corrosion-resistant bus
* Mounting: 10 Screws (not included)
* Cover: Clear Polycarbonate with Snap-On design
