Description

Specifications:

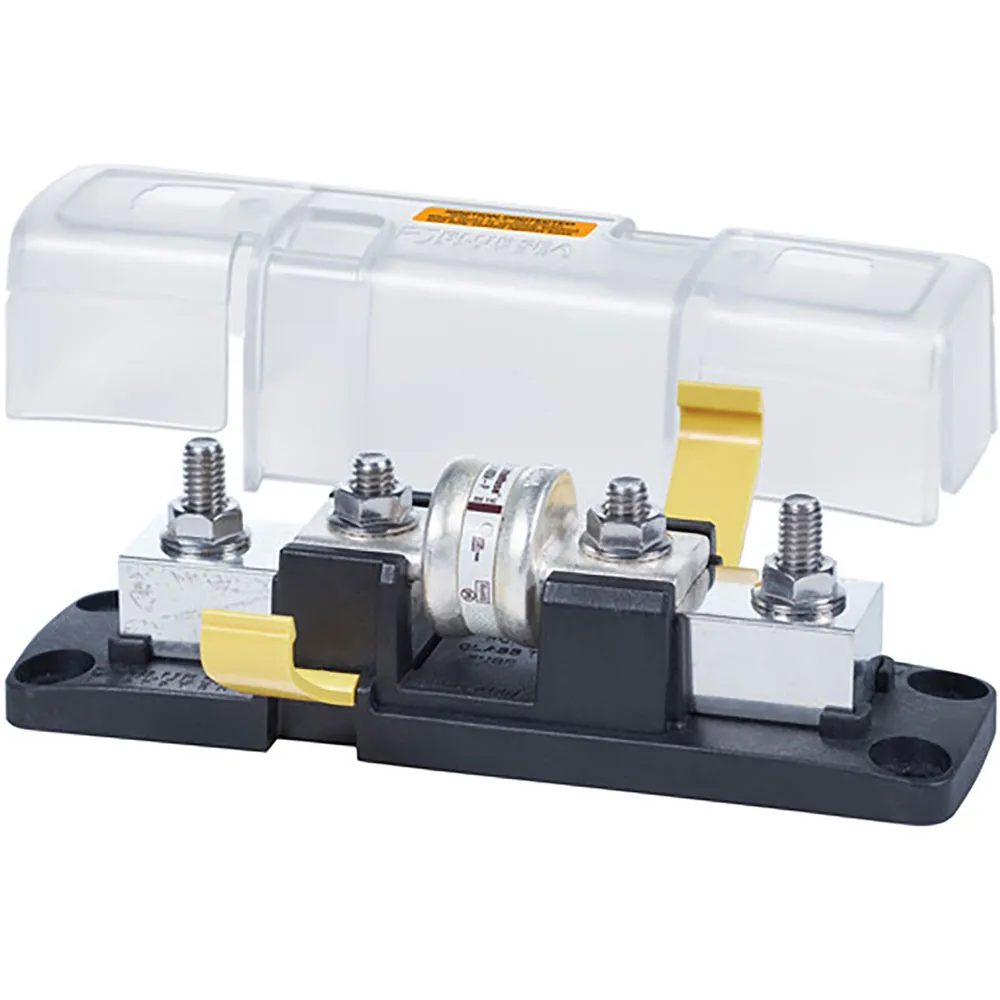

– Four Stud Design Provides Ample Access Around Connecting Stud To Install Large Cable Lugs Without Obstruction From The Fuse
– Insulating Cover Satisfies Abyc/Uscg Insulation Requirements
– Cover Breakouts Allow Wire Access In Any Direction
– Stud Design Ensures Secure Fuse Mounting Even With High Heat
– Stainless Steel Studs Provide Resistance To Corrosion And High Torque
– One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
– Ul 94-V0 Base Resists High Heat
– Ignition Protected
– Cable Size: Up To 4/0 Awg
– Ignition Protected Devices, Which Operate In A Potentially Explosive Environment, Must Be Ignition Protected. This Would Include Engine Rooms With Gasoline Engines. There Is A Very Specific Set Of Tests Which A Device Must Pass To Claim Ignition Protection. They Include Operating Safely In An Explosive Mixture Of Propane And Air.: Yes
– Maximum Amperage Maximum Amperage Ratings Are Dependent On Use Of Appropriately Sized Fuses And Wire For A Given Application.: 320a Best Practice: Limit The Amount Of Current In The Circuit To 80% Of The Fuse Rating.
– 300a If Inside Engine Space And Continuous Best Practice: Limit The Amount Of Current In The Circuit To 80% Of The Fuse Rating.
– Maximum Voltage: 160v Dc
– Fuse Mounting Blocks: Tin-Plated Copper
– Mounting Fastner Size: 1/4´´ Or M6 Hardware
– Terminal Stud Size: 5/16´´-18 (M8)
– Weight: 1.10lb (0.5 Kg)
