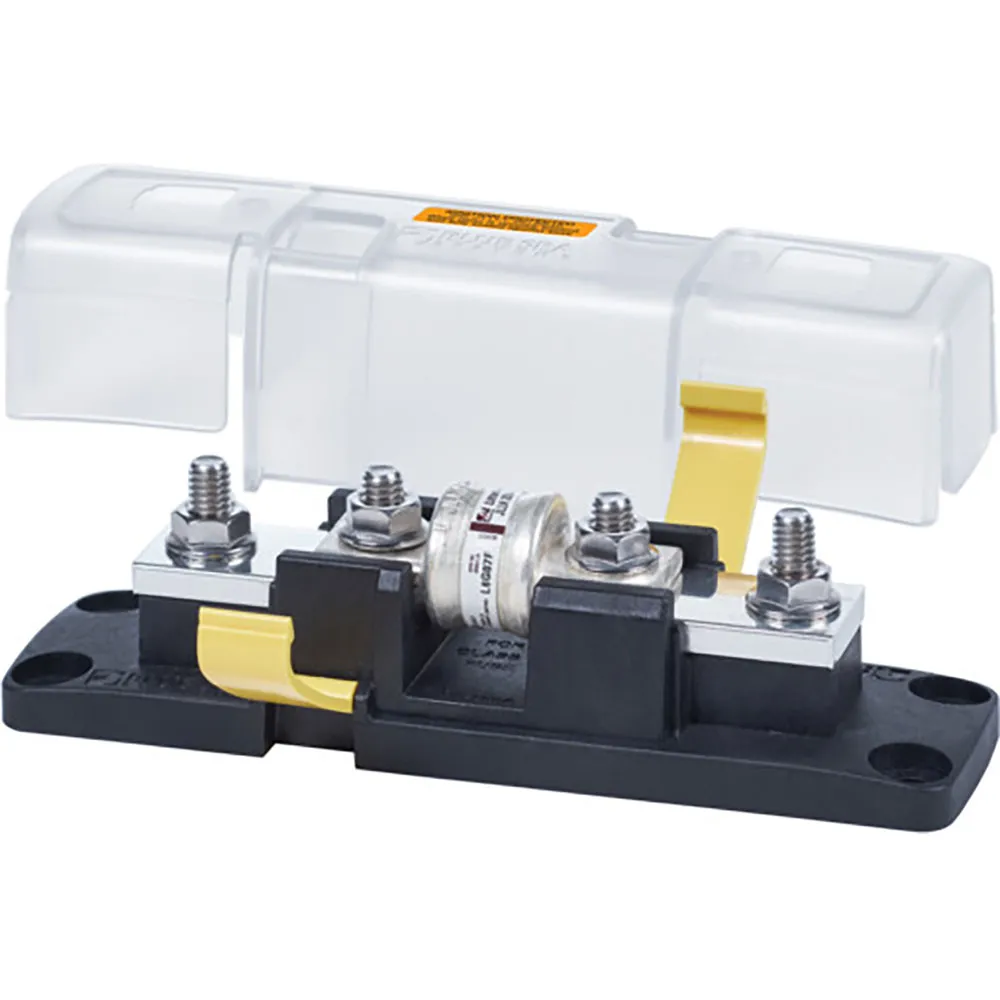

Blue Sea Systems Block Class T IP Fuse – Ultimate Protection for High-Amperage Systems
Ensure the ultimate safety and reliability of your critical high-current DC electrical systems with the Blue Sea Systems Block Class T IP Fuse holder. Engineered for demanding environments in the marine and specialized vehicle electronics sectors, this fuse block provides superior protection for expensive components like inverters, bow thrusters, windlasses, and large battery banks against catastrophic short circuits. It is the cornerstone of a safe and robust electrical connections setup, delivering peace of mind when dealing with significant power loads.
The innovative design of this fuse block addresses the common challenges of installing high-amperage Fuses. Its thoughtful construction ensures that installers can work efficiently and create secure, lasting connections. The robust build quality is immediately apparent, designed to withstand the harsh realities of marine and automotive environments, including vibration, high heat, and potential exposure to corrosive elements. By choosing this component, you are investing in the longevity and safety of your entire electrical infrastructure.
One of the standout benefits is its commitment to certified safety. Being Ignition Protected allows for installation in spaces where flammable gases may be present, such as a vessel´s engine room, making it a compliant and responsible choice for a wide range of applications. Furthermore, its design not only meets but exceeds industry standards, providing an insulating barrier that satisfies stringent ABYC/USCG requirements for protection against accidental contact. The clever cover design allows for versatile wiring options, accommodating cable runs from any direction while maintaining a clean and professional installation. This fuse block isn´t just a component; it´s a critical safety device engineered for performance and durability.
Features:
– Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
– Insulating cover satisfies ABYC/USCG insulation requirements
– Cover breakouts allow wire access in any direction
– Stud design ensures secure fuse mounting even with high heat
– Stainless steel studs provide resistance to corrosion and high torque
– One-piece stainless flange nuts ensure safe and secure connections
– UL 94-V0 base resists high heat
– Ignition Protected
Specifications:
– Cable Size: Up to 4/0 AWG
– Maximum Amperage: 160A
– Maximum Voltage: 160V DC
– Fuse Mounting Blocks: Tin-Plated Copper
– Maximum Torque: 190 in-lb (21.47 Nm)
– Recommended Torque: 72 in-lb (8.13 Nm)
– Mounting Fastener Size: 1/4″ or M6 Hardware
– Terminal Stud Size: 1/4″-20 (M6)
– Weight: 1.10 lb (0.5 kg)
