Electronics – Electrical connections.

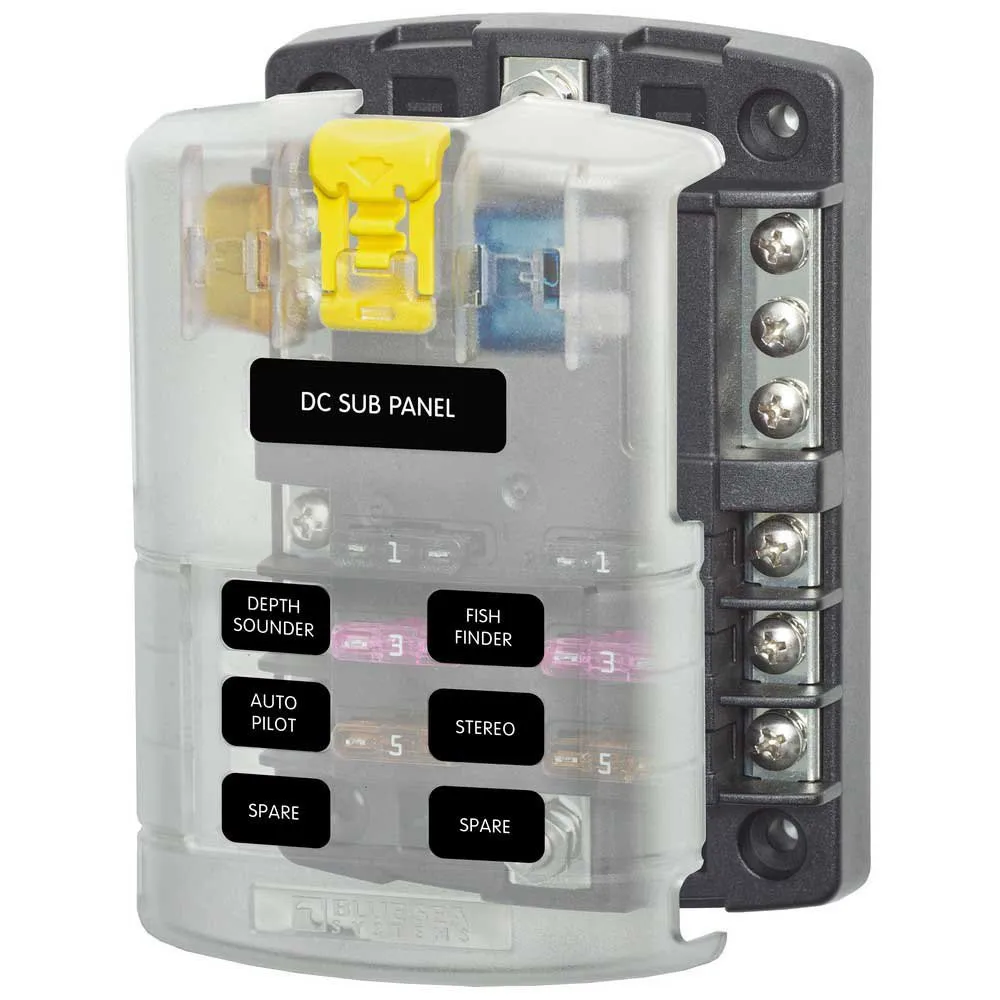

BLUE SEA SYSTEMS ATO Fuse Block 6 Position Adapter.
St blade fuse block.
– 6 circuits with negative bus and cover.
Upgrade and protect your electrical system with the BLUE SEA SYSTEMS ST Blade Fuse Block, the professional-grade solution for power distribution and circuit protection. Engineered for reliability in the most demanding environments, this 6-position fuse block is the ideal choice for marine, automotive, RV, and off-grid solar applications. It provides a clean, consolidated, and safe hub for all your 12V/24V DC electronics, eliminating the hazards of messy wiring and ensuring your valuable equipment is shielded from over-current damage.
The standout feature of this fuse block is its integrated negative bus bar. This design dramatically simplifies wiring by providing a common grounding point for all six circuits, reducing wire clutter, saving installation time, and creating a more organized and easy-to-troubleshoot electrical panel.
Key Benefits:
* Simplified & Clean Installation: The integrated negative bus provides a single grounding point, eliminating the need for a separate ground bus bar. This results in a faster, cleaner, and more professional-looking installation with fewer connections and potential points of failure.
* Superior Circuit Protection: Safely distribute power to six independent circuits, each protected by an easily replaceable ATO/ATC blade fuse. This prevents overloads and short circuits from damaging sensitive electronics like GPS units, fishfinders, radios, and lighting.
* Enhanced Durability & Corrosion Resistance: Constructed with tin-plated copper buses and fuse clips, this block offers minimal resistance, improved conductivity, and maximum protection against corrosion, making it perfectly suited for harsh marine environments.
* Safe & Easy to Use: The included clear insulating cover features a secure push-button latch for easy one-handed operation. It protects against accidental shorts and meets ABYC/USCG insulation requirements. Recessed areas on the cover allow for easy circuit labeling.
Main Features:
* 6-Circuit Capacity: Accommodates up to six individual powered circuits.
* Integrated Negative Bus: Provides a common connection for all negative/ground wires.
* Protective Insulating Cover: A robust, clear polycarbonate cover with a push-button latch for easy access and protection.
* ATO/ATC Fuse Compatibility: Accepts common and readily available ATO and ATC fast-acting blade fuses (sold separately).
* Compact & Robust Design: Built with a reinforced polycarbonate base for strength and durability in a space-efficient footprint.
Technical Specifications:
* Attribute: Adapters
* Circuits: 6
* Maximum Voltage: 32V DC
* Maximum Amperage: 100A per block | 30A per circuit
* Fuse Type: ATO® / ATC® Blade Fuses
* Bus Material: Tin-Plated Copper C11000
* Positive Bus Connection: 10-32 Stud
* Negative Bus Connection: 10-32 Stud
* Output Terminal Type: 8-32 Screws with captive star lock washers
* Mounting: Accepts 8 (M4) screws
Whether you are outfitting a new boat, upgrading your camper van, or building a custom off-road vehicle, the Blue Sea Systems 6-Position ST Blade Fuse Block provides the safety, reliability, and professional finish your project deserves. Trust in a brand renowned for industry-leading electrical components that are engineered to perform and built to last
