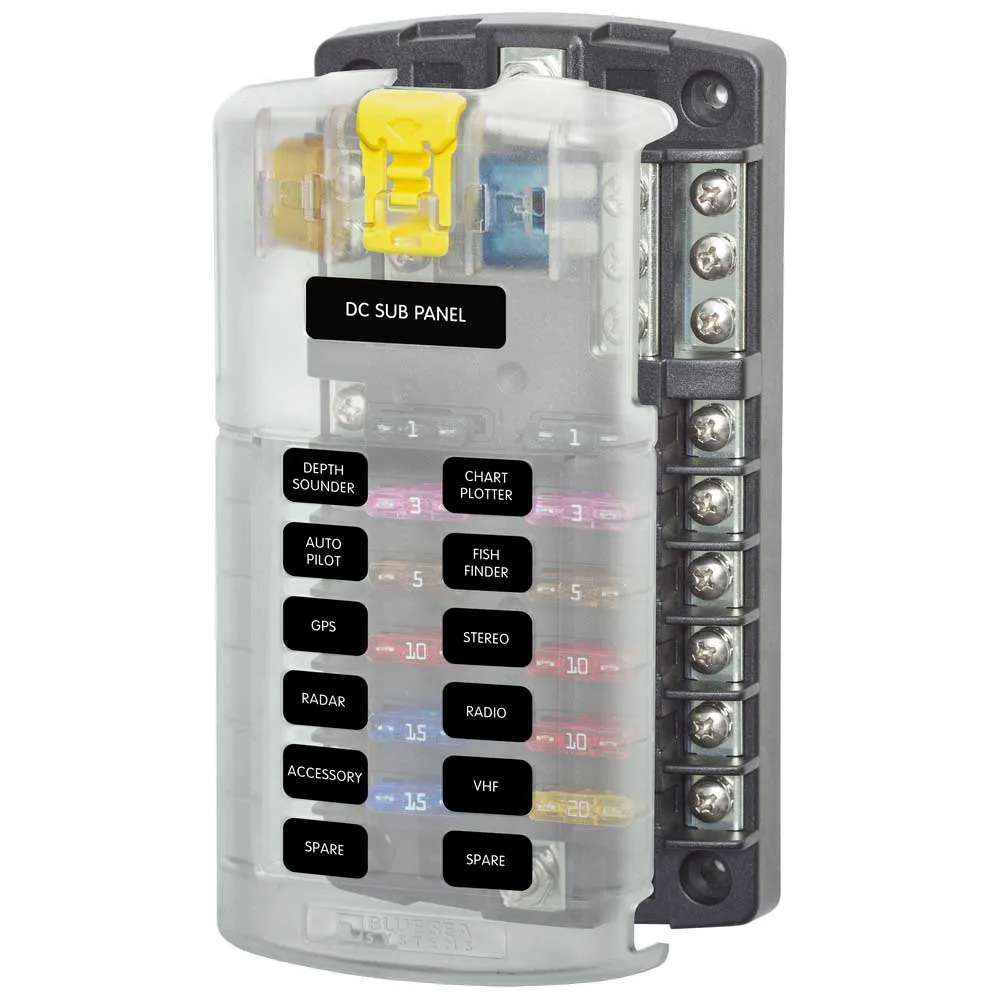

BLUE SEA SYSTEMS ST Blade 12-Circuit Fuse Block with Negative Bus
Category: Electronics
Subcategory: Electrical connections
Streamline Your Electrical System with Unmatched Safety and Organization
Elevate the safety, reliability, and organization of your vehicle or vessel´s electrical system with the Blue Sea Systems ST Blade Fuse Block. Designed for discerning users who demand professional-grade quality, this 12-position fuse block adapter is the ultimate solution for consolidating branch circuits and eliminating the clutter and unreliability of multiple in-line fuses. By providing a centralized point for power distribution and circuit protection, it simplifies installation, streamlines troubleshooting, and significantly enhances the overall integrity of your DC electrical setup. Whether you are outfitting a boat, upgrading an RV, or building a custom automotive project, this fuse block provides the robust foundation you need for a clean, secure, and efficient power system.
Engineered for excellence, this unit provides a comprehensive solution for your DC electrical needs.
ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover.
Consolidates branch circuits and in-line fuses.
Positive distribution bus with 10-32 stud.
Can be used for 24-hour circuits.
Models available with or without a cover.
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems´´ Small Format Labels for circuit identification.
Key Benefits
* Centralized Power Management: Simplifies complex wiring by consolidating up to 12 individual circuits into a single, organized hub. The integrated negative bus bar further streamlines wiring by providing a common grounding point, reducing wire clutter and potential points of failure.
* Enhanced Safety and Protection: Drastically improves safety by replacing messy in-line fuses with a secure, covered block. The included cover provides essential protection against accidental shorts and meets stringent ABYC/USCG insulation requirements, making it ideal for marine environments.
* Simplified Troubleshooting and Maintenance: With all fuses in one accessible location and clear labeling capability, identifying and replacing a blown fuse becomes a quick and effortless task. The convenient push-button latch on the cover allows for tool-free access, even in tight spaces.
* Superior Durability and Performance: Constructed with tin-plated copper buses and fuse clips, this block ensures maximum conductivity, minimal voltage drop, and exceptional resistance to corrosion, guaranteeing long-term reliable performance in even the harshest marine or automotive environments.
Main Features
* Provides 12 fused circuits for ATO/ATC blade fuses
* Integrated 12-position negative bus for clean ground connections
* Single 10-32 positive stud input simplifies power connection
* Suitable for continuous power on 24-hour circuits
* Protective cover with a secure push-button latch for easy one-handed operation
* Cover includes built-in storage for two spare fuses, ensuring they are always available when needed
* Molded label recesses on the cover for use with Blue Sea Systems Small Format Labels for professional circuit identification
* Corrosion-resistant, tin-plated copper construction for optimal electrical conductivity
Technical Specifications
* Circuits: 12
* Maximum Voltage: 32V DC
* Maximum Amperage (per block): 100A
* Maximum Amperage (per circuit): 30A
* Fuse Type: Accepts ATO® or ATC® fast-acting blade fuses
* Positive Bus Input: 10-32 Stud
* Negative Bus Input: 10-32 Stud
* Output Terminal Type: 8-32 Screws with captive star lock washers
* Base Material: Reinforced Polycarbonate
* Cover Material: Clear Polycarbonate
* Bus Material: Tin-Plated Copper C11000
Attributes
* Adapters
