Description

B&G WS310 Wired Wind Sensor (20m Cable) | High-Precision Vanes for Sailing
Experience unparalleled accuracy and reliability on the water with the B&G WS310 Wired Wind Sensor. Designed for cruising and club racing sailors who demand the highest performance from their navigation equipment, the WS310 delivers precise wind speed and angle data directly to your B&G instrument network.
Achieve a new level of sailing performance with a wind sensor engineered for excellence. The B&G WS310 is the culmination of over 500 individual wind tunnel tests and extensive real-world sailing trials. This rigorous development process ensures that you receive exceptionally accurate wind data in all conditions, allowing you to make smarter, faster tactical decisions whether you´re navigating coastal waters or competing in a regatta. Its superior aerodynamic design minimizes the effect of turbulence from the sails, providing more stable and trustworthy readings, especially when sailing upwind.
Built to withstand the harshest marine environments, the WS310 offers the legendary reliability B&G is known for. The wired connection via the included 20-metre mast cable ensures a constant, interference-free data stream and power supply, eliminating the concerns of battery life or wireless signal dropouts at critical moments. Installation is straightforward, with a single cable connecting the sensor to your NMEA 2000 network for seamless integration with your B&G Triton², H5000, or Nemesis displays.
Key Benefits:
* Unrivaled Data Accuracy: Benefit from industry-leading accuracy in both wind speed and angle, providing the critical information needed for optimal sail trim and course plotting.
* Superior Aerodynamic Performance: The unique design of the Vanes ensures cleaner airflow and reduces turbulence, resulting in more stable and reliable data across all points of sail and heeling angles.
* Exceptional Reliability: A robust, wired NMEA 2000 connection guarantees consistent power and data delivery, offering peace of mind during long passages and intense races.
* Seamless System Integration: Effortlessly connect the WS310 to your existing B&G or other NMEA 2000 compatible systems for a fully integrated navigation suite.
* Built for the Marine Environment: Rigorously tested for durability and longevity, the sensor is fully waterproof and designed to perform flawlessly in salt, spray, and sun.
Main Features:
* High-Performance Wired Wind Sensor Vanes
* Includes 20-metre Mast Cable and Mast Bracket
* Single Cable for Power and Data
* Standard NMEA 2000 Connectivity
* Low Power Consumption
* Designed for Cruising and Club Racing
—
Technical Specifications:
* Connectivity: 1x NMEA 2000 Micro-C port
* Supply Voltage: 12V DC (via NMEA 2000)
* NMEA 2000 Load Equivalency Number (LEN): 1
* Power Consumption: 0.2 W
* Waterproof Rating: IPx6 and IPx7
* Operating Temperature Range: -25°C to 65°C (-13°F to 149°F)
* Weight (Sensor Head): 0.28 kg (0.62 lbs)
* Wind Speed Accuracy: +/- 0.2 knots (for speeds from 4 to 50 knots)
* Wind Angle Accuracy: +/- 1 degree
* Cable Length: 20 m (65.6 ft)

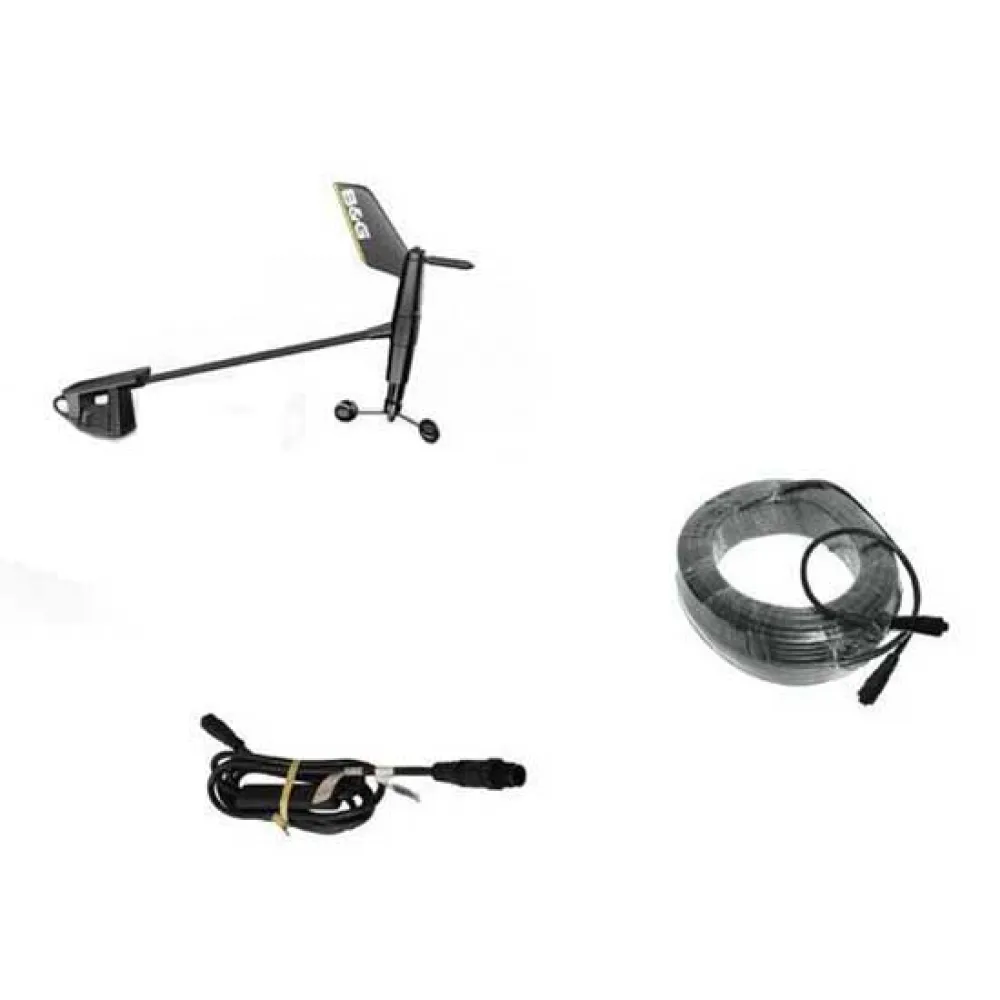

* Included in Box: WS310 Wind Sensor, 20m Mast Cable, WS310 Mast Bracket, NMEA 2000 T-Joiner, Installation Manual
