Description

Electronics – Electrical connections.

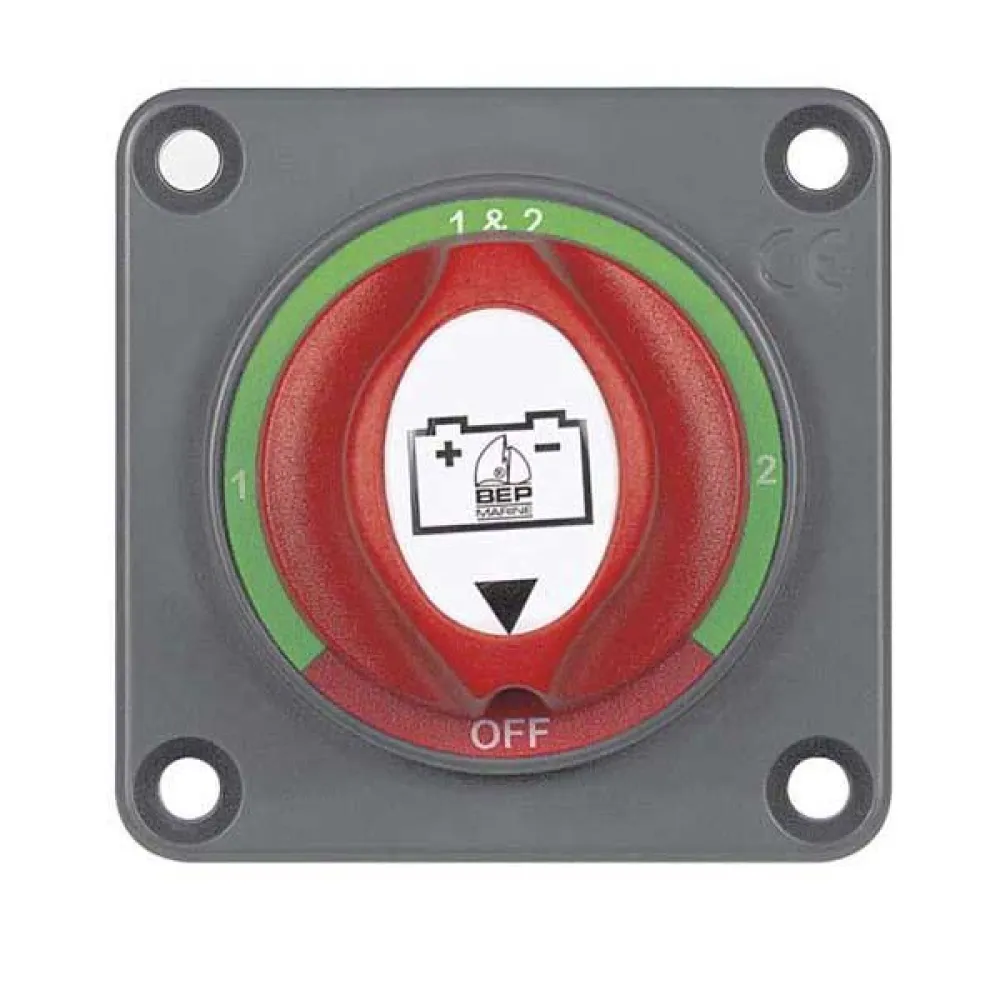

BEP MARINE Battery Switch Panel Mount.
Disconnect batteries 1/2/ambos/off economic 200a surface mount and recessed.
Gain unparalleled control and robust protection over your vessel´s electrical system with the BEP MARINE Battery Switch Panel Mount. An essential component for any boat, RV, or off-grid power setup, this heavy-duty switch provides a reliable and safe method for managing single or dual battery banks. Engineered by BEP Marine, a leader in marine electrical solutions, this switch is designed to withstand the harsh marine environment, ensuring your power is available when you need it and safely disconnected when you don´t. It effectively prevents battery drain during periods of inactivity, isolates electrical systems for safe maintenance, and offers the flexibility to combine battery banks for emergency starting power. Its smart, versatile design allows for a clean and professional installation in any console or bulkhead.
Key Benefits:
* Total Power Management: Effortlessly switch between two separate battery banks , combine them for increased power, or completely disconnect them from the electrical system. This provides ultimate flexibility for charging, power distribution, and emergency situations.
* Enhanced Electrical Safety: By providing a definitive OFF position, the switch completely isolates the batteries, preventing any parasitic drain and creating a safe environment for maintenance, servicing, or storage. Its ignition-protected design makes it safe for installation aboard gasoline-powered boats.
* Superior Durability and Reliability: Constructed from high-temperature resistant, non-corrosive materials and featuring tinned copper studs, this switch is built to resist the damaging effects of saltwater, humidity, and vibration, guaranteeing long-lasting performance.
* Versatile and Professional Installation: The innovative design allows for both recessed panel mounting for a sleek, low-profile look or surface mounting for simpler installations. Removable side plates provide easy, unobstructed access for heavy-gauge battery cables.
Main Features:
* Four-position selector switch for comprehensive battery control.
* Ergonomic and removable control knob.
* Can be installed as a recessed panel mount or a surface mount switch.
* Removable side plates with knockouts for flexible cable entry.
* Compatible with the BEP Marine Contour Lock system for modular clustering with other switches and components.
* Tinned copper studs and nuts for maximum conductivity and corrosion resistance.
* Ignition Protected to SAE J1171 standards, suitable for use in marine engine compartments.
Controls:
The intuitive rotary knob provides clear selection of power sources:
* Position 1: Selects Battery 1 to power the electrical system while isolating Battery 2.
* Position 2: Selects Battery 2 to power the electrical system while isolating Battery 1.
* BOTH (Ambos): Connects and combines Battery 1 and Battery 2 in parallel, ideal for emergency engine starting or for charging both banks simultaneously from a single source.
* OFF: Completely disconnects both Battery 1 and Battery 2 from all electrical circuits.
Technical Specifications:
* Continuous Rating: 200 Amps DC
* Intermittent Rating: 300 Amps DC (5 minutes)
* Cranking Rating: 1000 Amps DC (10 seconds)
* Voltage Rating: Up to 48 Volts DC
* Operation: 1 / 2 / Both / Off
* Mounting: Recessed or Surface
* Termination Stud Size: 3/8″ (M10)
* Materials: High-impact, corrosion-proof plastics and tinned copper contacts.
* Certifications: CE Marked, UL 1107, Ignition Protected (SAE J1171)
