Description

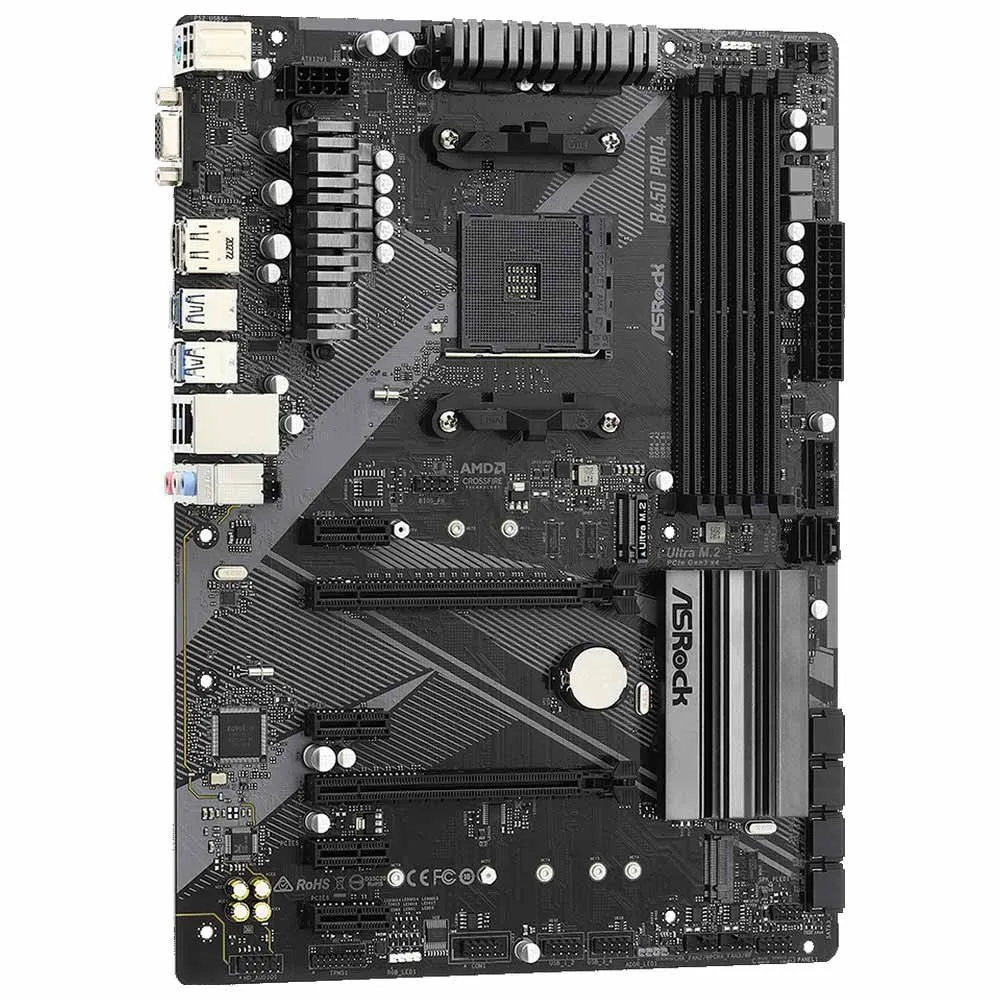

Asrock B450 Pro4 R2.0.
Processor manufacturer:AMD, Processor socket:Socket AM4, Compatible processor:AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD.
Compatible memory types:DDR4-SDRAM, Maximum internal memory:128 GB, Memory slot type:DIMM.
Supported storage disk interfaces:M.2,SATA III.
Support for parallel processing:CrossFireX, Quad-GPU CrossFireX, Maximum resolution:4096 x 2160 Pixels.
Ethernet interface type:Gigabit Ethernet, LAN Controller:Realtek RTL8111H.
Specifications:-Processor manufacturer:AMD.
-Processor socket:Socket AM4.
-Compatible processor:AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen.
-Max.
number of SMP processor:1.
-Compatible memory types:DDR4-SDRAM.
-Number of memory slots:4.
-Type of memory slots:DIMM.
-Maximum internal memory:128 GB.
-Memory channels:Dual-channel.
-Supported memory clock speeds:2133,2400,2667,2933,3200 MHz.
-ECC:Yes.
-Non-ECC:Yes.
-Unbuffered memory:Yes.
-Ethernet:Yes.
-Ethernet interface type:Gigabit Ethernet.
-LAN Controller:Realtek RTL8111H.
-Wifi:No.
-Network connection:Yes.
-USB 2.0, connectors:2.
-USB 3.2 Gen 1 (3.1 Gen 1) connectors:1.
-Number of SATA III connectors:6.
-Audio connector on front panel:Yes.
-ATX power connector (24 pins):Yes.
-CPU fan connector:Yes.
-Number of connectors to chassis fan:3.
-12 V electrical connector:Yes.
-Connector for RGB LED strips:Yes.
-TPM connector:Yes.
-Number of COM connectors:1.
-Audio connector:Yes.
-USB 2.0:2.
-USB 3.2 Gen 1 (3.1 Gen 1):4.
-Number of Type A USB 3.2 Gen 2 (3.1 Gen 2) ports:1.
-Number of Type C USB 3.2 Gen 2 (3.1 Gen 2) ports:1.
-PS/2:1 mouse port.
-Ethernet LAN ports (RJ-45):1.
-VGA Ports (D-Sub):1.
-HDMI Ports:1.
-HDMI Version:1.4.
-DisplayPort:1.
-DisplayPort version:1.2.
-RAID compatibility:Yes.
-Supported storage disk interfaces:M.2,SATA III.
-RAID levels:0,1,10.
-Number of M.2 slots (M):2.
-PCI Express x16 Gen (3.x) slots:2.
-PCI Express x1 (Gen 2.x) slots:4.
-BIOS types:UEFI AMI.
-BIOS, memory size:128 MB/s.
-ACPI version:5.1.
-System Management BIOS (SMBIOS) version:2.3.
-Support for parallel processing:CrossFireX, Quad-GPU CrossFireX.
-Maximum resolution:4096 x 2160 Pixels.
-HDCP:Yes.
-DirectX version:12.0.
-Number of screens supported:3.
-Chipset family:AMD.
-Chipset:AMD B450.
-Form factor:ATX.
-Audio output channels:7.1 channels.
-Sound chip:Realtek ALC892 / Realtek ALC897.
-Component for:PC.
-Supported Windows operating system:Windows 10 x64.
-Certification:FCC, CEErP/EuP.
-PC health monitoring:Fan, Temperature, Voltage.
-Width:305 mm.
-Depth:224 mm.
-Cables included:SATA.
-Controllers included:Yes.
-Software included:ASRock A-TuningASRock Polychrome SYNCASRock XFast LAN.
