Description

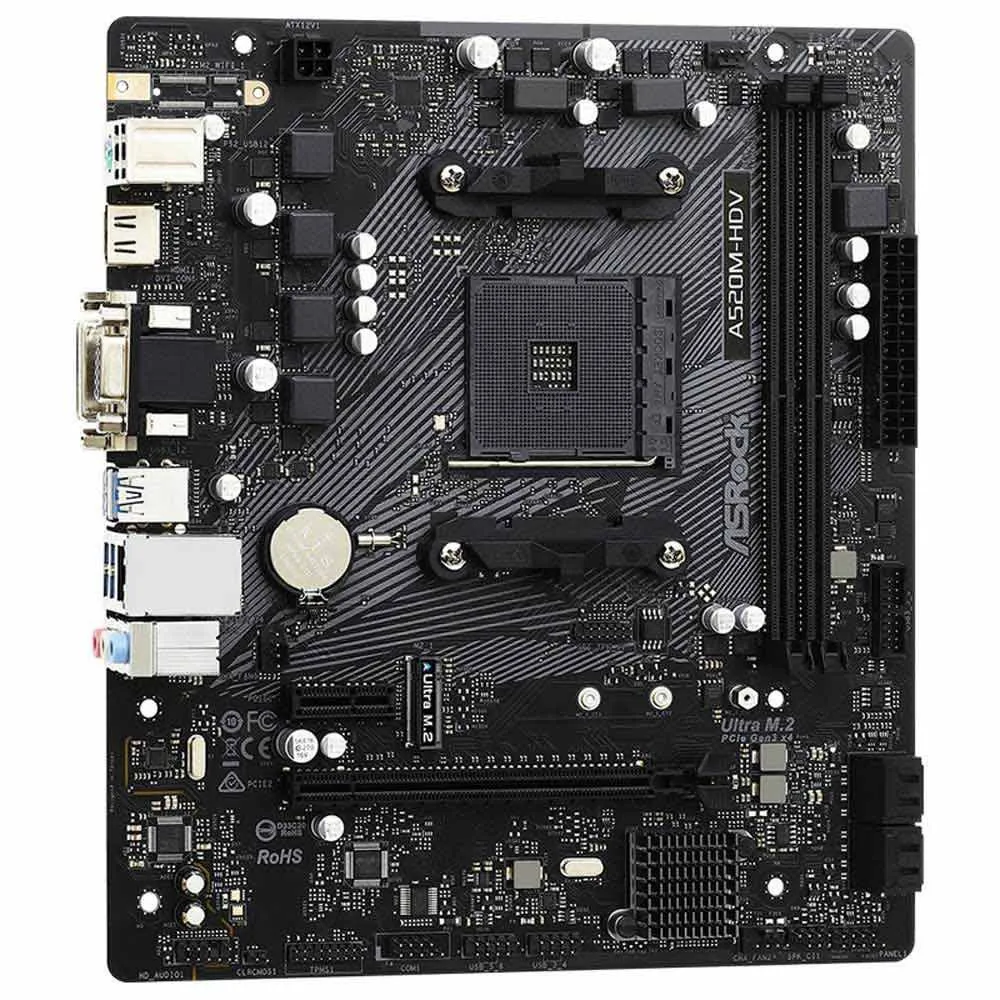

Asrock A520M-HDV.
Processor manufacturer:AMD, Processor socket:Socket AM4, Compatible processor:AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD.
Supported memory types:DDR4-SDRAM, Memory slot type:DIMM, Supported memory clock speeds:2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200, 4266,4333,4400,4466,4500,4533 MHz.
Supported storage disk interfaces:M.2, Serial ATA III.
Graphics chipset:AMD, Graphics adapter:Radeon Vega.
Ethernet interface type:Gigabit Ethernet, LAN Controller:Realtek RTL8111H.
Specifications:-Processor manufacturer:AMD.
-Processor socket:Socket AM4.
-Compatible processor:AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9.
-compatible memory types:DDR4-SDRAM.
-Number of memory slots:2.
-Type of memory slots:DIMM.
-Maximum internal memory:64 GB.
-Memory channels:Dual-channel.
-Supported memory clock speeds:2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz.
-Non-ECC :Yeah.
-Unbuffered memory:Yes.
-Ethernet:Yes.
-Ethernet interface type:Gigabit Ethernet.
-LAN Controller:Realtek RTL8111H.
-Wifi:No.
-Network connection:Yes.
-USB 2.0, connectors:2.
-USB 3.2 Gen 1 (3.1 Gen 1) connectors:1.
-Audio connector on front panel:Yes.
-ATX power connector (24 pins):Yes.
-CPU fan connector:Yes.
-Number of connectors to chassis fan:2.
-Number of COM connectors:1.
-USB 2.0:2.
-USB 3.2 Gen 1 (3.1 Gen 1):4.
-PS/2:1 mouse port.
-Ethernet LAN ports (RJ-45):1.
-VGA Ports (D-Sub):1.
-HDMI Ports:1.
-Number of DVI-D ports:1.
-Microphone Input:Yes.
-Supported storage disk interfaces:M.2, Serial ATA III.
-Supported storage drive types:M.2 SSD Combo.
-RAID levels:10/100/1000 Mb/s.
-Number of HDDs supported:5.
-PCI Express x1 slots:1.
-PCI Express x16 slots:1.
-Number of M.2 slots (M):1.
-PCI Express x1 (Gen 3.x) slots:1.
-PCI Express x16 Gen (3.x) slots:1.
-BIOS types:UEFI AMI.
-BIOS, memory size:128 MB/s.
-Graphics chipset:AMD.
-Graphic adapter:Radeon Vega.
-Chipset family:AMD.
-Chipset:AMD A520.
-Form factor:Micro ATX.
-Audio output channels:7.1 channels.
-Sound Chip:Realtek ALC887 Audio Codec.
-Power:SATA.
-Component for:PC.
-Width:230 mm.
-Depth:201 mm.
