Description

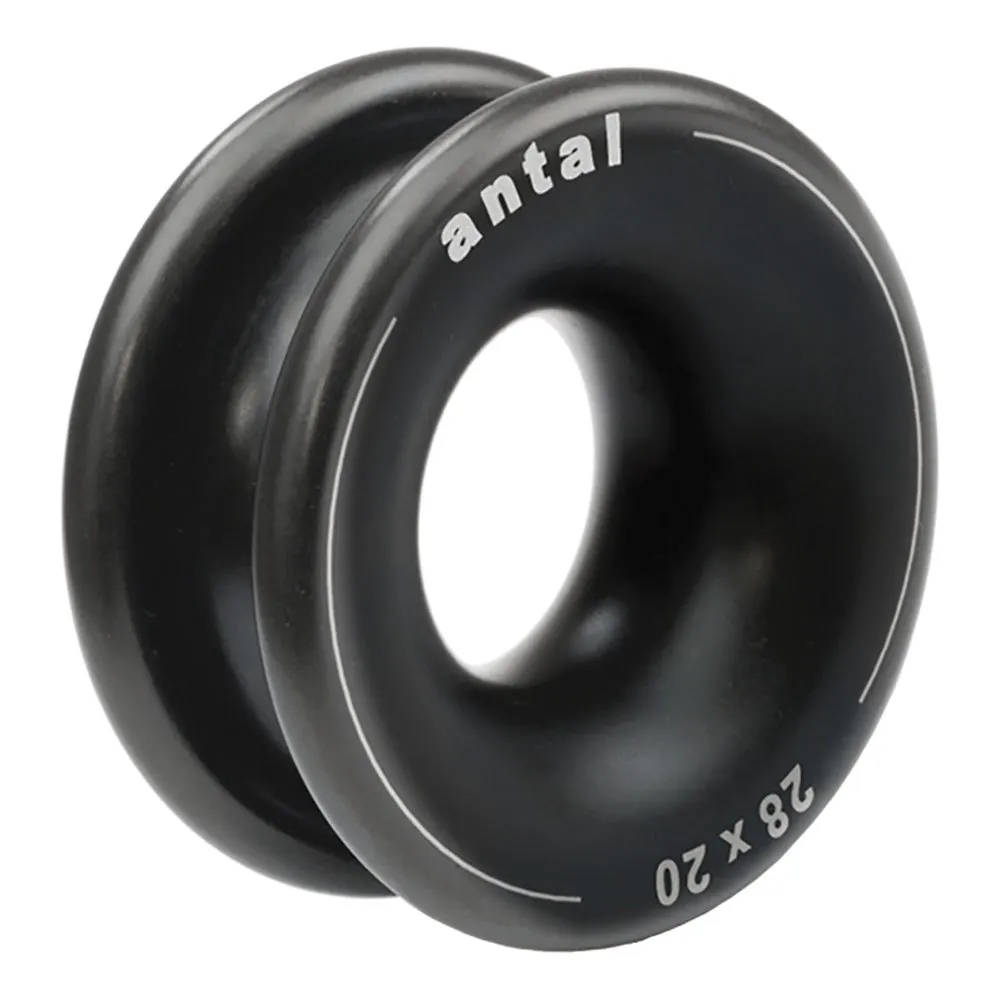

ANTAL Low Friction Ring 28×20 mm
Experience the pinnacle of simplicity and efficiency in sailboat rigging with the ANTAL Low Friction Ring 28×20 mm. A masterclass in design, this essential piece of equipment is engineered to optimize line handling for anchoring, mooring, and a vast array of onboard applications. By replacing traditional, heavy, and complex blocks, the Antal Low Friction Ring offers a lightweight, incredibly strong, and maintenance-free solution for the modern sailor.
Its perfectly polished, smooth surface ensures minimal friction, allowing lines to run freely and smoothly under immense tension. The single-piece construction means there are no moving parts to break, corrode, or seize, guaranteeing unparalleled reliability in the harshest marine environments. Dramatically reduce weight aloft, enhancing your vessel´s stability and performance—a critical advantage for both cruisers and competitive racers. This 28×20 mm model is designed to handle significant loads, making it the perfect choice for demanding tasks where strength and dependability cannot be compromised. Its versatility is unmatched, serving as an ideal component for creating powerful cascade systems, deflection points, barber haulers, backstay adjustments, lazy jacks, and countless other custom rigging setups.
A Legacy of Innovation from Antal
In 2008 Antal introduced the low friction ring to the market, a product that revolutionized the line-handling on sailboats.
In 2020 Antal introduces SectoRing, the spinning ring with a guiding cover, small in size and low in weight, the perfect solution for high loads where large and fast movements are not required.
SectoRing is also available without the Antal snap loop where it can be used in custom fastening applications (in that case the SWL depends on the strength of the fastening but must not exceed Antal values).
Key Benefits & Main Features:
* Exceptional Strength-to-Weight Ratio: Provides massive load-bearing capacity in a compact and lightweight form.
* Ultra-Low Friction: A highly polished finish allows for smooth and efficient line movement, even under heavy load.
* Unmatched Reliability: The solid, one-piece design has no moving parts, eliminating the risk of mechanical failure.
* Maintenance-Free: Install it and forget it. It requires no lubrication or servicing.
* Versatile Application: An essential tool for a wide range of rigging needs, from static deflections to dynamic systems.
* Corrosion Resistant: Built to withstand the demanding saltwater environment for long-lasting performance.
Attribute: Rings
Technical Specifications:
* Ring Inner Ø: 28 mm
* Ring Section Ø: 20 mm
* Max. Line Ø: 20 mm
* Safe Working Load (SWL): 4500 kg
* Breaking Load (BL): 9000 kg
* Weight: 64 g
Upgrade your sailboat´s anchoring, mooring, and general rigging systems with the ANTAL Low Friction Ring 28×20 mm—the simple, elegant, and powerful solution for superior performance and peace of mind on the water
